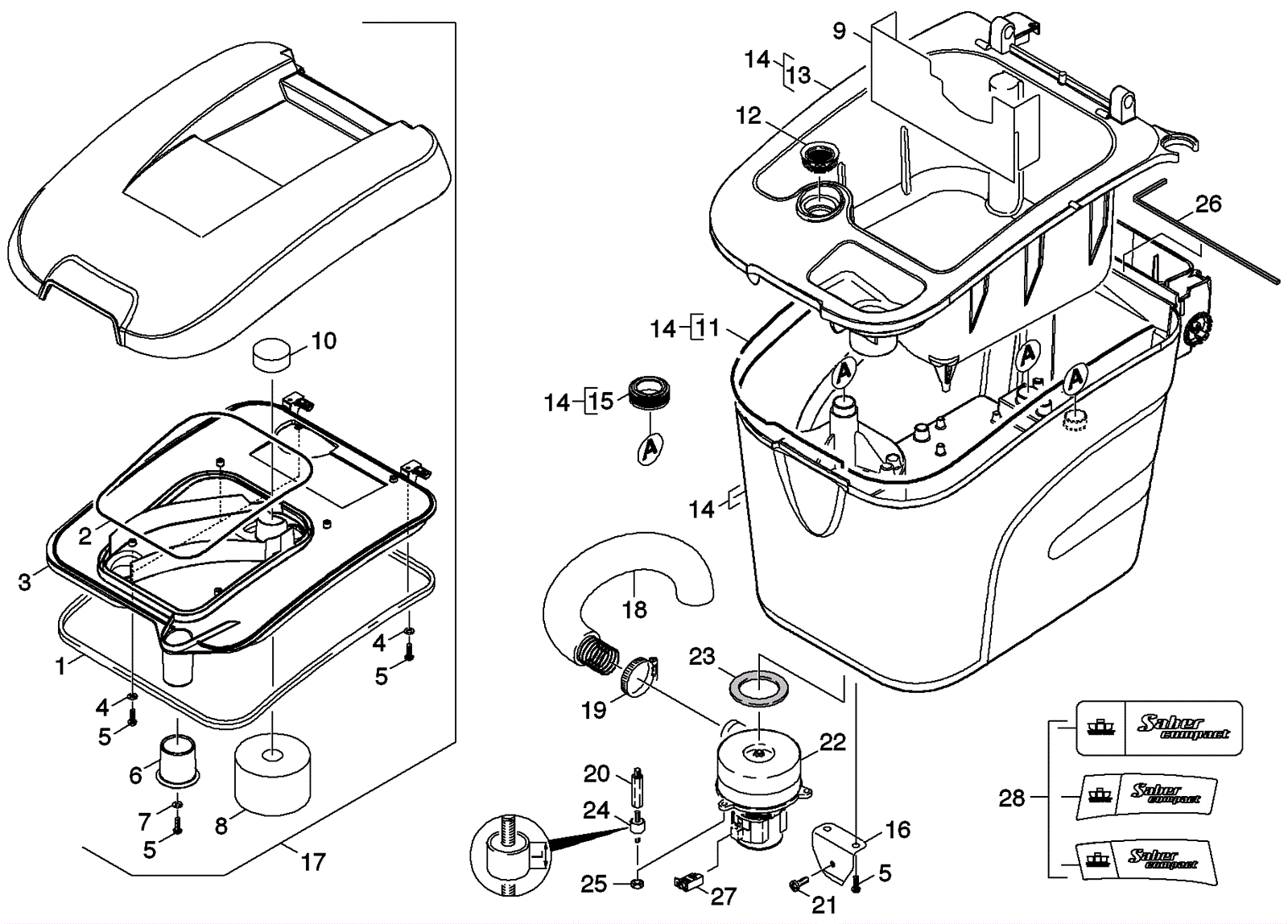

SABER COMPACT 16 Tank Assembly - 1

#PartDescriptionPriceReqNotesAvailability
1 183-0071 Sealing profile recovery tank seal (Sold by the inch) $1.30 1 usually ships 15-28 days
2 173-9040 Rubber seal string $6.71 1 usually ships 1-5 days
3 173-9041 Covering cap replacement $70.04 1 usually ships 1-5 days
4 173-9042 Washer #5 $1.63 8 usually ships 11-16 days
5 173-9043 Screw 5 x 25 $1.47 11 usually ships 1-5 days
6 173-9044 Form seal $40.02 1 usually ships 1-5 days
7 999-9100 Washer M5 flat stainless steel $5.83 1 ships same day
8 173-9045 Float $55.20 1 usually ships 11-16 days
9 173-9046 Splash plate $93.19 1 usually ships 1-5 days
10 173-9047 Vacuum plug channel $6.53 1 usually ships 1-5 days
11 173-9048 Rubber seal D6 $6.01 1 usually ships 1-5 days
12 273-2032 Strainer $17.30 1 usually ships 11-16 days
13 173-9049 Waste water tank $354.28 1 usually ships 1-5 days
14 173-9050 Tank $1,474.00 1 usually ships 1-5 days
15 173-9051 Joint ring $5.76 3 usually ships 1-5 days
16 173-9052 Tank closure plate $40.15 1 usually ships 1-5 days
17 173-5394 Tank lid $390.76 1 (includes 1-8 and 10) usually ships 1-5 days
18a 173-9053 Suction tube $162.43 1 (for model 1.515-158.0) usually ships 1-5 days
18b 183-0082 Sound proof hose $47.40 1 (for model 1.515-208.0) usually ships 1-5 days
19 183-0081 Hose clamp $9.38 1 usually ships 1-5 days
20a 183-0077 Bolt $7.82 3 (for model 1.515-158.0) usually ships 1-5 days
20b 173-9054 Dowel $21.89 3 (for model 1.515-208.0) usually ships 1-5 days
21 183-0202 Screw $1.30 1 usually ships 1-5 days
22a 173-5396 Vacuum motor $448.42 1 (for model 1.515-208.0) usually ships 11-16 days
22b 173-9055 120V vacuum motor $542.60 1 (for model 1.515-158.0) usually ships 1-5 days
22c 991-1209 24V 2 stage vacuum motor peripheral $289.80 1 (NON-OEM) ships same day
23 173-9056 Joint ring $11.54 1 (for model 1.515-208.0) usually ships 11-16 days
24a 183-0078 Rubber buffer $7.40 3 usually ships 1-5 days
24b 173-9057 12mm rubber buffer $14.19 1 usually ships 1-5 days
25 173-9058 Nut M6-8 hex $1.63 3 usually ships 1-5 days
26 173-9059 L-shaped seal $3.88 1 usually ships 1-5 days
27a 173-9060 Carbon brush set $21.56 1 (for model 1.515-208.0) usually ships 1-5 days
27b 173-9061 Carbon brush set $32.67 1 (for model 1.515-158.0) usually ships 11-16 days
28 173-9062 Decal replacement set $317.79 1 usually ships 1-5 days
