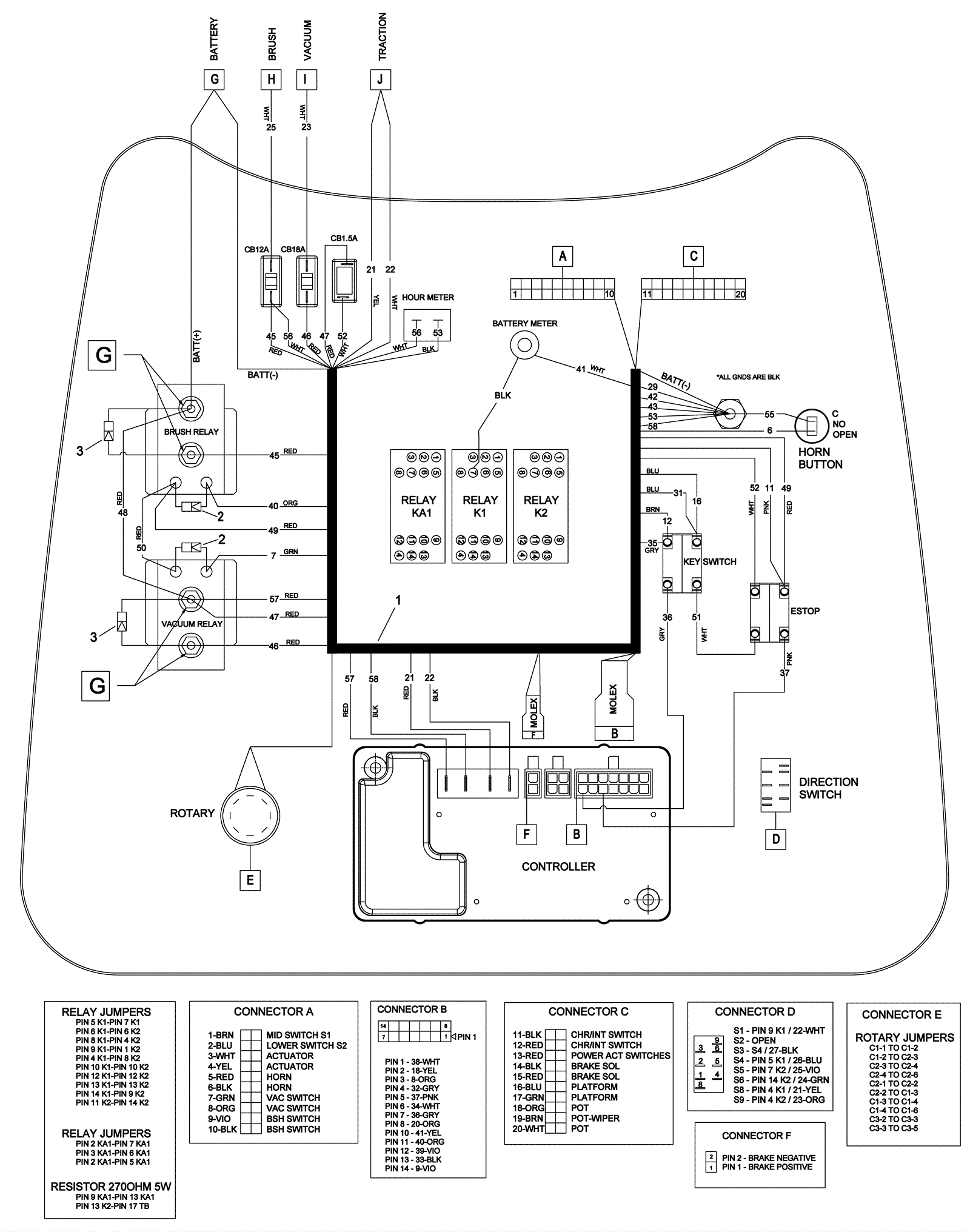

CHARIOT2 ISCRUB20D Control Panel Wiring Diagram - Before SN 10061250000618 and 10061330000633

#PartDescriptionPriceReqNotesAvailability
1 173-7298 Main panel harness $861.56 1 ships same day
2 173-1716 Diode assembly $57.55 2 usually ships 11-16 days
3 189-0372 Diode assembly $148.58 2 usually ships 13-23 days
