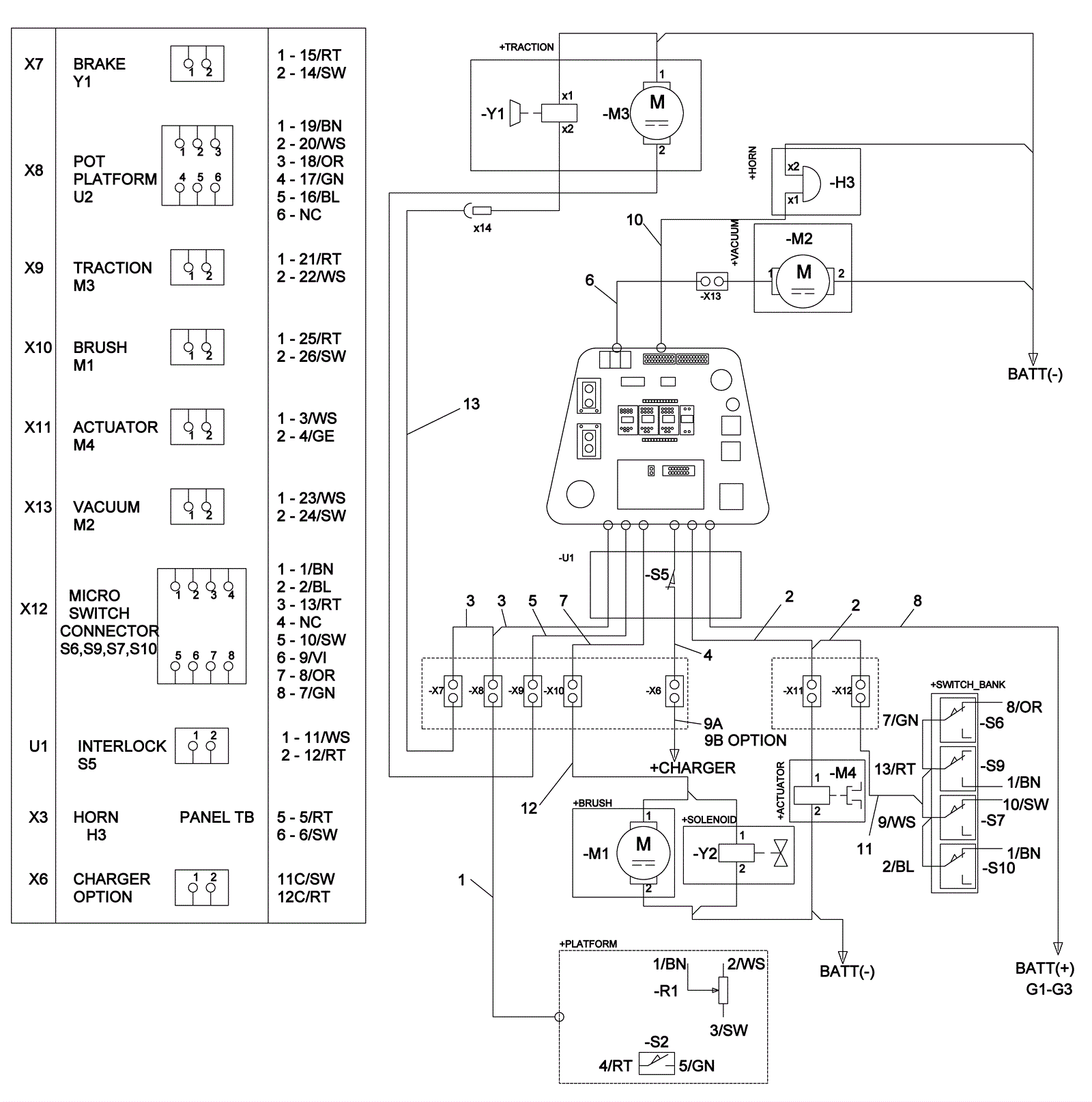

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
273-6671
|
Operator platform harness |
$111.10
|
1 |
|
usually ships 1-5 days |
2 |
173-7299
|
Main actuator harness |
$172.70
|
1 |
|
usually ships 1-5 days |
3 |
173-7300
|
Main potentiometer and brake harness |
$195.80
|
1 |
|
usually ships 7-19 days |
4 |
173-7301
|
Main charger harness |
$136.40
|
|
|
usually ships 7-19 days |
5 |
173-7302
|
Main traction harness |
$104.50
|
1 |
|
usually ships 7-19 days |
6 |
173-7303
|
Main vacuum harness |
$68.20
|
1 |
|
usually ships 1-5 days |
7 |
173-7304
|
Main brush harness |
$90.75
|
1 |
|
usually ships 1-5 days |
8 |
173-7305
|
Main power harness |
$195.80
|
1 |
|
usually ships 7-19 days |
9a |
173-7307
|
Charger inhibit jumper |
$30.47
|
1 |
|
usually ships 7-19 days |
9b |
273-7098
|
Charger jumper harness |
$105.05
|
1 |
(optional - onboard charger) |
usually ships 7-19 days |
10 |
173-7306
|
Main horn harness |
$50.05
|
1 |
|
usually ships 1-5 days |
11 |
173-7308
|
Micro switch harness |
$32.89
|
1 |
|
usually ships 7-19 days |
12 |
273-7099
|
Roller brush harness |
$31.13
|
1 |
(cylindrical only) |
usually ships 1-5 days |
13 |
273-6684
|
Lower brake harness |
$66.55
|
1 |
|
usually ships 7-19 days |
