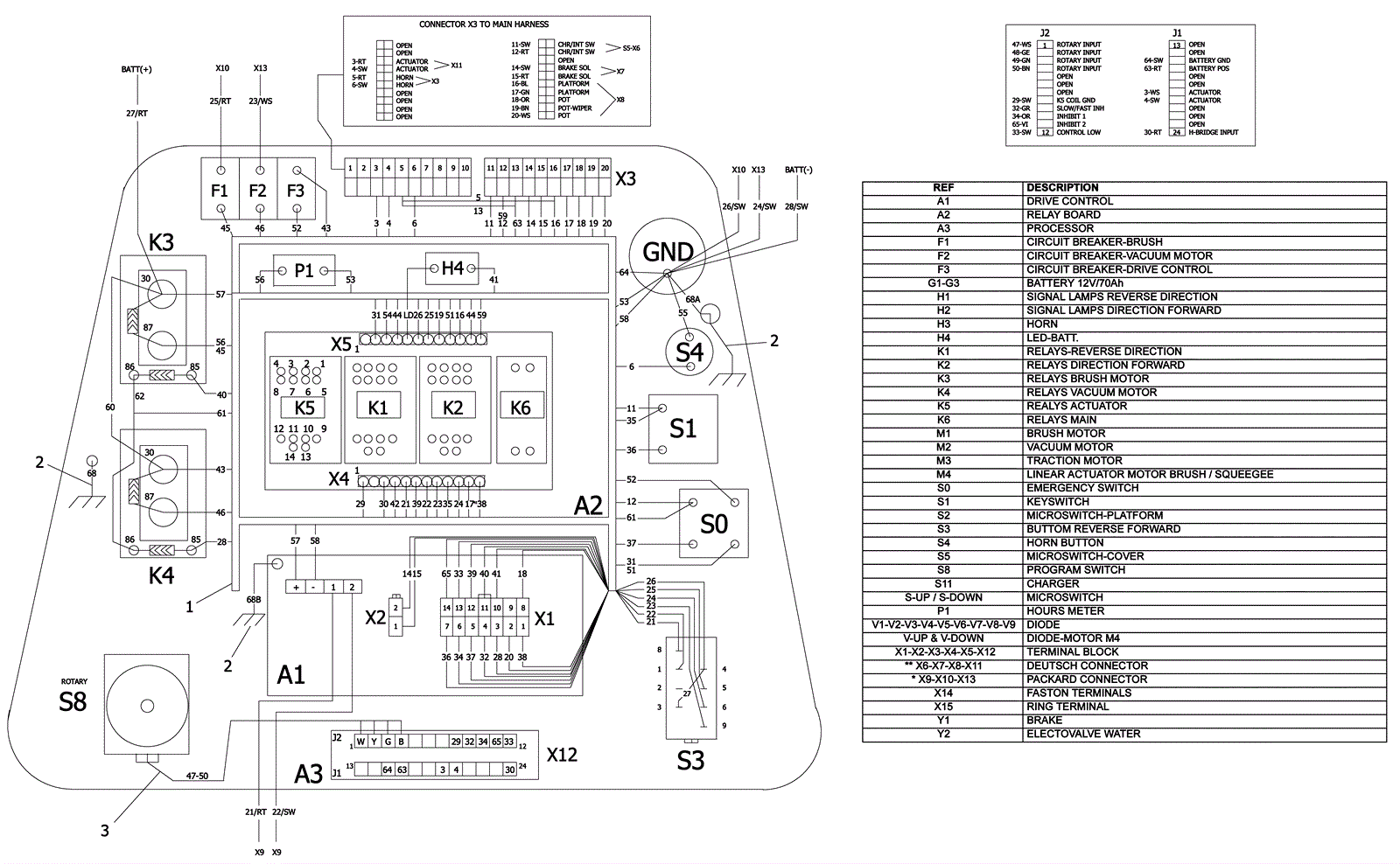

CHARIOT2 ISCRUB20D Wiring Diagram - 2

#PartDescriptionPriceReqNotesAvailability
1 273-7100 Panel harness $642.64 1 usually ships 11-16 days
2 273-7101 I-drive harness $33.90 1 usually ships 1-5 days
3 273-6672 Rotary switch harness $21.78 1 usually ships 11-16 days
