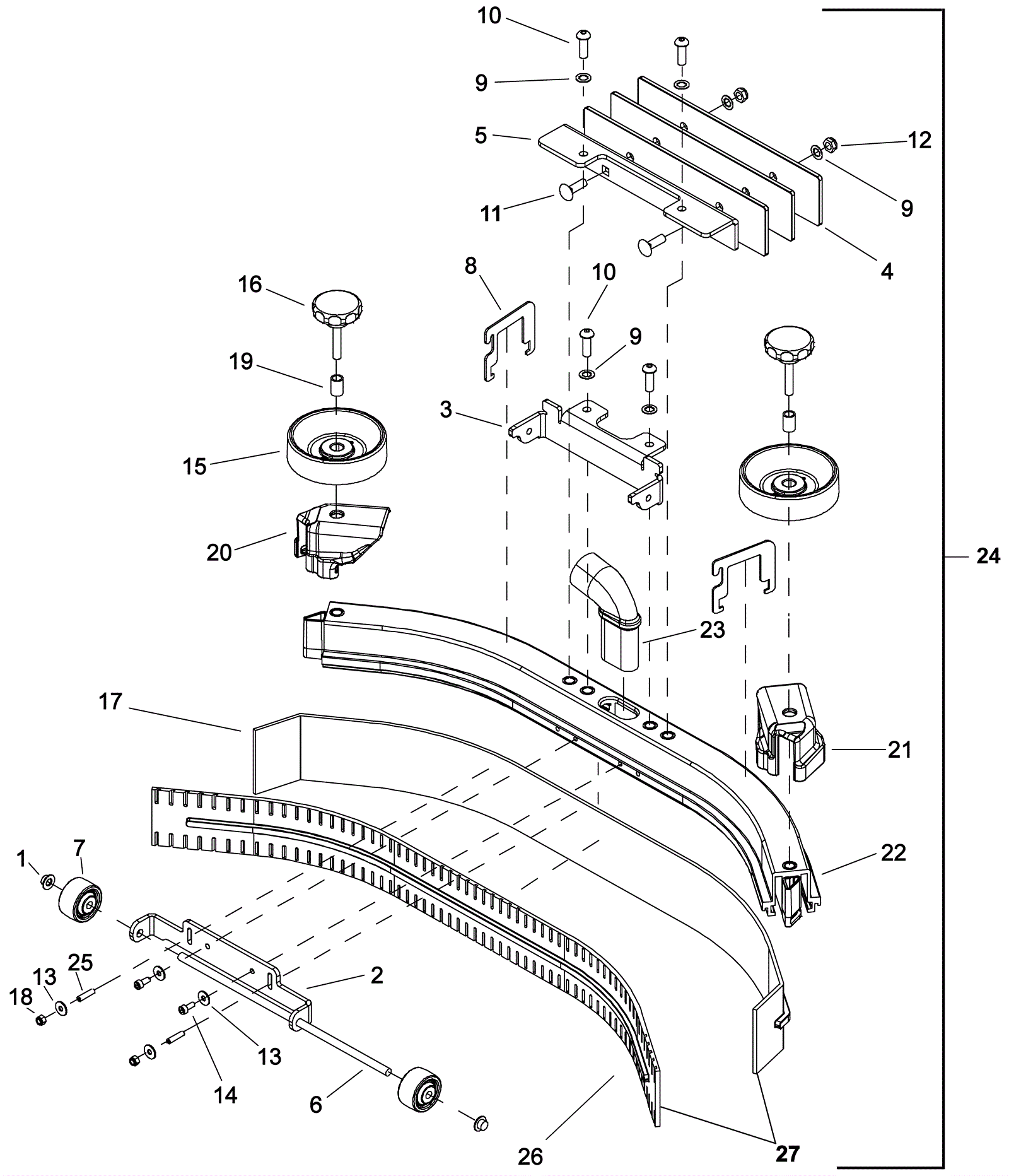

CHARIOT2 ISCRUB22SP Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-7065 Nut 5/16 $4.29 2 usually ships 7-19 days
2 273-7066 Squeegee caster bracket $44.80 1 usually ships 1-5 days
3 273-7067 Squeegee latch bracket $56.00 1 usually ships 1-5 days
4 273-7068 Squeegee weight plate $30.60 3 usually ships 7-19 days
5 273-7069 Weight mount bracket $40.40 1 usually ships 1-5 days
6 273-7070 Squeegee caster axle $48.90 1 usually ships 7-19 days
7 173-3028 Roller wheel $30.51 2 ships same day
8 273-7071 Bracket $9.85 2 usually ships 1-5 days
9 999-1053 Washer 5/16 internal star lock stainless steel $0.99 6 ships same day
10 999-0910 Screw M8-1.25 x 25mm button head socket $3.19 4 usually ships 11-24 days
11 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 2 ships same day
12 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
13 273-5591 Washer M5 flat stainless steel $1.65 2 usually ships 7-19 days
14 273-5734 Screw M5-.8 x 12mm socket head cap stainless steel $3.10 4 usually ships 7-19 days
15 273-5925 Guide wheel $24.10 2 usually ships 7-19 days
16 273-7072 Star knob $21.10 2 usually ships 7-19 days
17 273-2058 Squeegee blade rear linatex $181.36 1 (after SN 10061250002171, 10061300000028, 1006130002349, 10061340000040, 10061370000353, 10061380000386) usually ships 7-19 days
18 999-0495 Nut M5-.8 nylon insert lock zinc plated $0.99 2 ships same day
19 273-5924 Sleeve suction bar $8.30 2 usually ships 7-19 days
20 273-3475 Left and right end pieces $79.50 1 usually ships 7-19 days
21 273-3475 Left and right end pieces $79.50 1 usually ships 7-19 days
22 273-7074 Pre-assembled curved suction bar $750.00 1 usually ships 7-19 days
23 273-7075 Squeegee vacuum tube $26.30 1 usually ships 7-19 days
24a 273-7076 Squeegee assembly linatex $1,515.00 1 (after SN 10061250002171, 10061300000028, 1006130002349, 10061340000040, 10061370000353, 10061380000386) (includes 1-17a, 18-23, 25, 26a) usually ships 7-19 days
24b 273-7080 Squeegee assembly $535.00 1 (before SN 10061250002173, 10061300000030, 10061330002351, 10061340000042, 10061370000355, 10061380000388) (includes 1-16, 18-23, 25, 27) usually ships 1-5 days
25 273-7077 Screw M5 x 25mm stainless steel $3.60 2 usually ships 1-5 days
26 273-2059 Squeegee blade front linatex $160.32 1 (after SN 10061250002171, 10061300000028, 1006130002349, 10061340000040, 10061370000353, 10061380000386) ships same day
27 273-7079 Squeegee rubber lip set $339.06 1 (before SN 10061250002173, 10061300000030, 10061330002351, 10061340000042, 10061370000355, 10061380000388) usually ships 7-19 days
