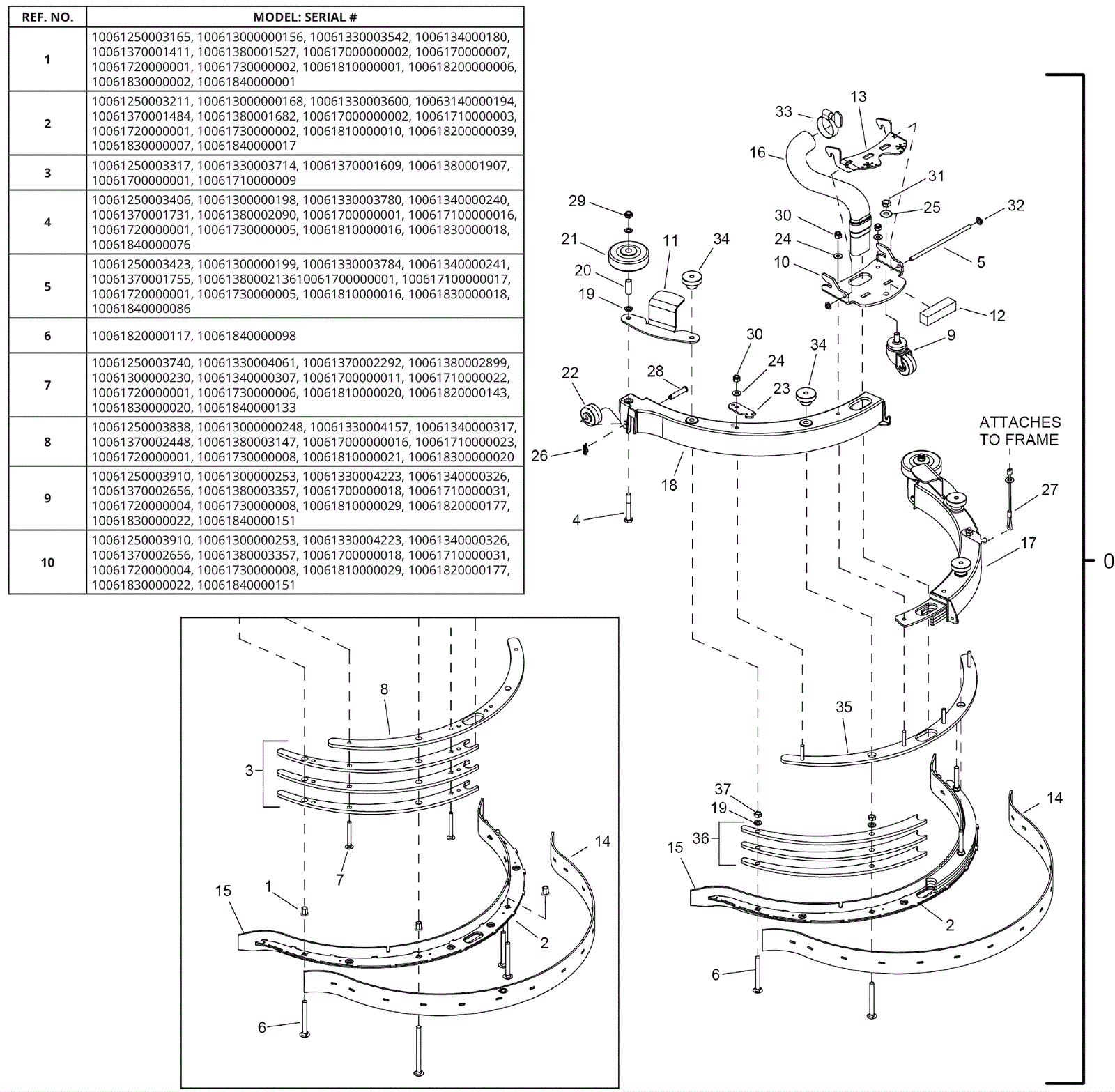

CHARIOT2 ISCRUB20D Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
0 173-7295 Squeegee assembly $1,030.90 1 (includes 1-37) usually ships 7-19 days
1 173-7275 Nut 5/16-18 x 9/16 (OBSOLETE) $10.62 4 (before SN reference number 10) usually ships 7-19 days
2 173-7276 Squeegee blade retainer $298.16 1 usually ships 7-19 days
3 173-7277 Squeegee weight plate $53.14 6 (before SN reference number 10) ships same day
4 173-7278 Screw 5/16-18 x 2 1/4 hex head cap stainless steel $0.77 2 usually ships 7-19 days
5 173-7279 Pivot latch shaft $28.93 1 usually ships 7-19 days
6 999-1335 Bolt 5/16-18 x 3 round head carriage stainless steel $5.54 4 ships same day
7 999-1855 Bolt 1/4 20 x 2 1/4 round head stainless steel $1.54 4 (before SN reference number 10) ships same day
8 173-7282 Squeegee cover brace $79.20 1 (before SN reference number 10) usually ships 7-19 days
9 173-7283 Caster wheel $79.75 1 ships same day
10 173-7284 Squeegee latch plate $59.95 1 usually ships 1-5 days
11 173-7285 Squeegee bumper lift bracket $38.39 2 usually ships 7-19 days
12 173-7286 Rubber spring $8.91 1 usually ships 7-19 days
13 173-7287 Squeegee latch $47.52 1 ships same day
14a 173-7288 Squeegee blade gum rubber rear (red) $53.79 1 ships same day
14b 173-9858 Rear squeegee blade urethane $64.35 1 (option) usually ships 7-19 days
15a 173-7289 Squeegee blade gum rubber front (red) $49.17 1 (OEM) ships same day
15b 173-9857 Front squeegee blade urethane $52.14 1 (option) (OEM) usually ships 7-19 days
15c 994-0500 Squeegee blade 37 inch Linatex front (red) $38.40 1 (NON-OEM) ships same day
16 173-7290 Squeegee vacuum hose $80.30 1 ships same day
17 173-7291 Right squeegee cover $46.13 1 ships same day
18 173-7292 Left squeegee cover $73.71 1 usually ships 7-19 days
19a 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 (before SN reference number 10) ships same day
19b 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 8 (after SN reference number 10) ships same day
20 173-1634 Bushing $11.55 2 usually ships 7-19 days
21a 173-1630 3 inch rubber wheel $5.50 2 ships same day
22 173-3028 Roller wheel $33.56 2 usually ships 7-19 days
23 173-7293 Bracket $9.08 2 usually ships 1-5 days
24 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
25 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
26 173-1480 Cotter ring $2.12 2 ships same day
27 173-7294 Cable lanyard $19.58 2 usually ships 7-19 days
28 173-3181 Clevis pin $7.10 2 ships same day
29 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
30 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 4 ships same day
31 999-0169 Nut 3/8-24 hex jam plain finish $0.99 1 ships same day
32 173-8413 Nut 1/4 cap $0.99 2 ships same day
33 273-7915 Gear wing clamp $2.78 1 ships same day
34 173-3184 Knob $48.29 4 ships same day
35 273-1394 Squeegee cover brace $78.10 1 (after SN reference number 10) usually ships 7-19 days
36 273-1395 Squeegee weight plate $25.96 6 (after SN reference number 10) usually ships 7-19 days
37 999-1019 Nut 5/16-18 hex jam stainless steel $0.99 4 (after SN reference number 10) ships same day
