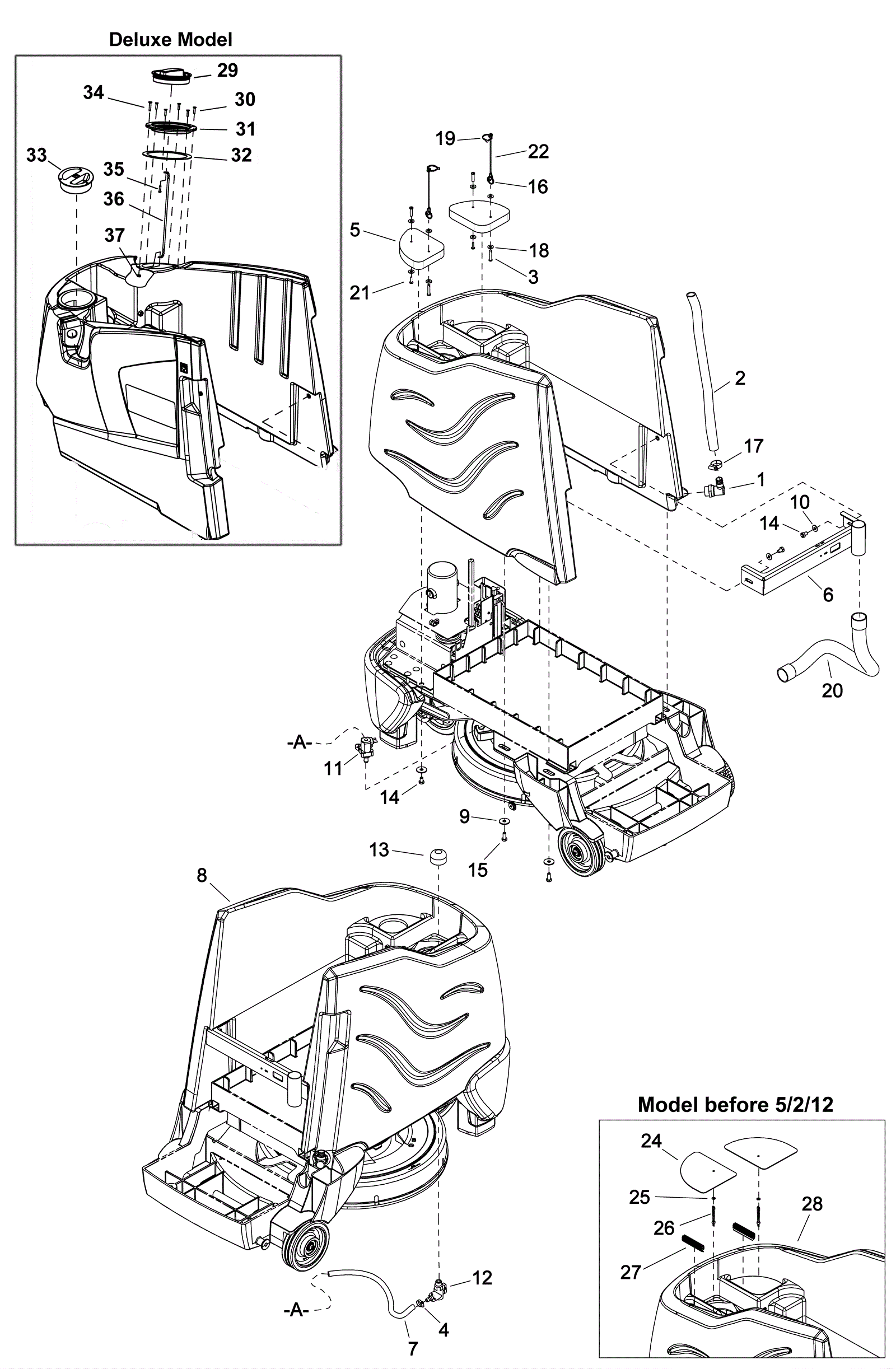

Solution Tank Assembly

#PartDescription ReqNotesAvailability
1 173-7266 Elbow 1
2 173-7267 Hose 3/4 x 20 inch (clear) 1
3 273-7059 Clevis pin 2
4 173-1821 Hose clamp 1
5 273-7060 Solution fill plug 2
6 173-7271 Tank brace bracket 1
7 173-7272 Hose 3/8 x 18 inch wirebound 1
8 273-7604 Solution tank (gray) 1
9 273-8187 Washer 5
10 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
11 273-1142 36V solution solenoid valve 1
12 273-6530 Ball valve 1
13 189-4181 3/8 inch mesh strainer 1
14 173-3962 Bolt 5/16-18 x 1/2 hex head 4
15 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 3
16 273-7063 Split ring 2
17 173-1079 Hose clamp (OBSOLETE) 1
18 999-0123 Washer 1/4 SAE flat zinc plated 8
19 173-0822 Wire tie 2
20 173-7220 Hose assembly 1.25 x 18 inch 1
21 273-7062 1/4 x 1 inch plastic screw post 2
22 273-0006 Strap 2
24 173-7270 Fill port cover 2 (before 05/2/2012)
25 999-1158 Washer #6 flat stainless steel 2 (before 05/2/2012)
26 173-7268 Elastic lanyard (OBSOLETE) 2 (before 05/2/2012)
27 173-7274 3 inch fill port gasket 2 (before 05/2/2012)
28 173-7273 Solution tank 1 (before 05/2/2012)
29 273-5972 Fill port lid 1 (deluxe)
30 999-1141 Screw 8 x 3/4 pan head phillips zinc plated 5 (deluxe)
31 273-5973 4 inch fill port rim 1 (deluxe)
32 273-5981 Gasket 1 (deluxe)
33 273-6408 Cover 1 (deluxe)
34 999-1603 Screw 8-32 x 1 flat head phillips SS 1 (deluxe)
35 173-5950 Screw KA50 x 16 oval head phillips SS (OBSOLETE) 1 (deluxe)
36 173-9162 Stainless steel bead chain #10 x 10 inch 1 (deluxe)
37 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel 1 (deluxe)
