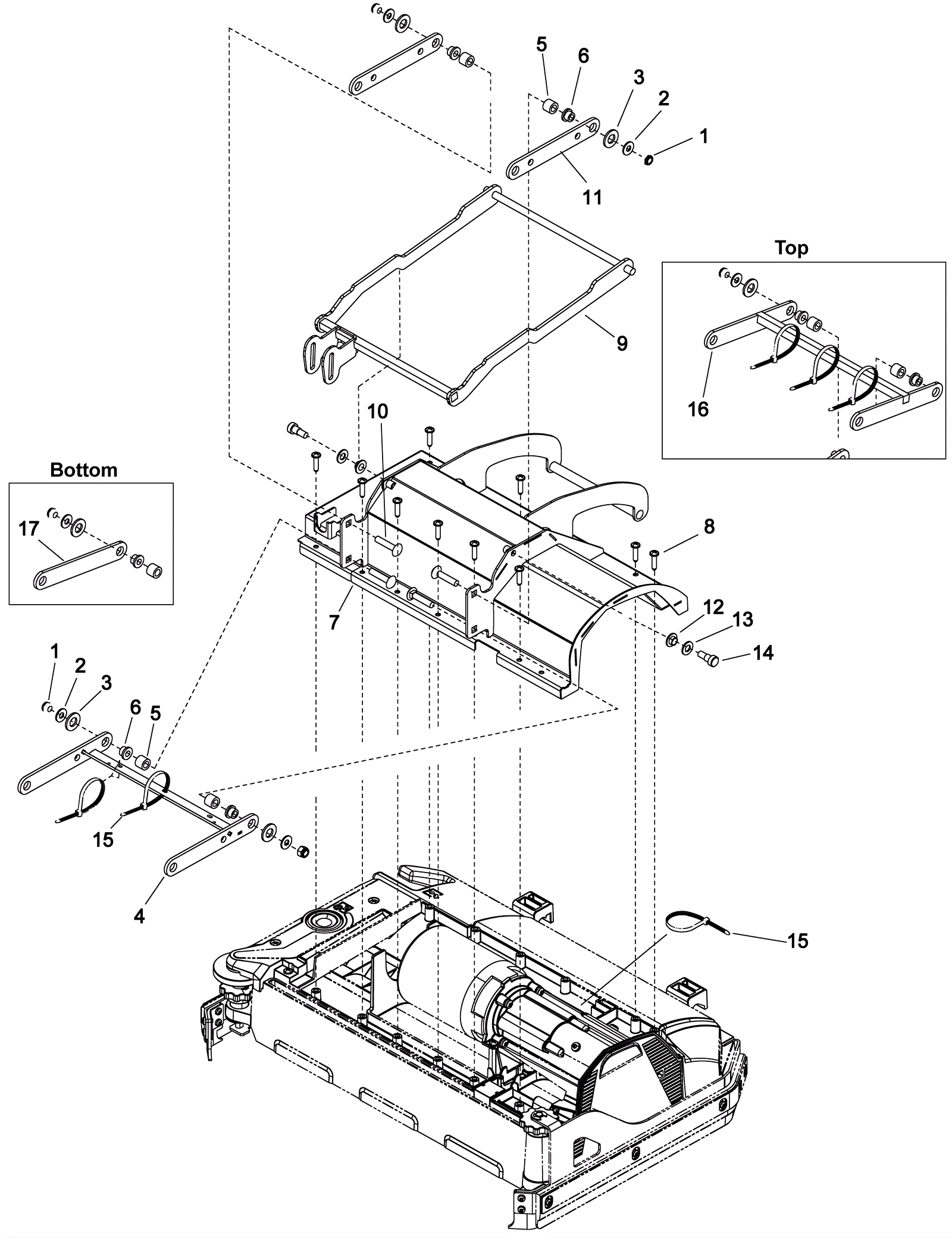

CHARIOT2 ISCRUB22SP Scrub Deck Linkage Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
2 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
3 173-3964 Thrust washer $5.85 4 ships same day
4 273-7898 Bottom linkage bracket $102.02 1 (after SN 10061250003423, 10061300000199, 10061330003784, 10061340000241, 10061370001755, 10061380002136, 10061700000001, 100617100000017, 10061720000001, 10061730000005, 10061810000016, 10061830000018, 10061840000086) usually ships 7-19 days
5 273-7051 Spacer $4.73 4 usually ships 1-5 days
6 273-5628 Flanged bearing $5.00 4 ships same day
7 273-7052 Deck cover $455.00 1 usually ships 1-5 days
8 273-6049 Screw 6-10.9 x 25mm $3.08 13 usually ships 1-5 days
9 273-7053 Lift arm frame $185.00 1 usually ships 1-5 days
10 173-5464 Screw 5/16-18 x 1 1/2 carriage head stainless steel $4.62 4 usually ships 1-5 days
11 273-7899 Top arm linkage $13.00 2 (after SN 10061250003423, 10061300000199, 10061330003784, 10061340000241, 10061370001755, 10061380002136, 10061700000001, 100617100000017, 10061720000001, 10061730000005, 10061810000016, 10061830000018, 10061840000086) usually ships 7-19 days
12 273-7055 Nylon flanged bearing $1.27 2 usually ships 1-5 days
13 999-1007 Washer 3/8 x 1/16 flat nylon $0.99 2 ships same day
14 173-1545 Shoulder bolt $26.30 2 usually ships 7-19 days
15 173-3169 Wire tie $0.94 3 (Qty was 4) (after SN 10061250003423, 10061300000199, 10061330003784, 10061340000241, 10061370001755, 10061380002136, 10061700000001, 100617100000017, 10061720000001, 10061730000005, 10061810000016, 10061830000018, 10061840000086) usually ships 1-5 days
16 273-7054 Upper linkage bracket $86.00 1 usually ships 1-5 days
17 273-7050 Lower linkage bracket $18.50 2 usually ships 1-5 days
