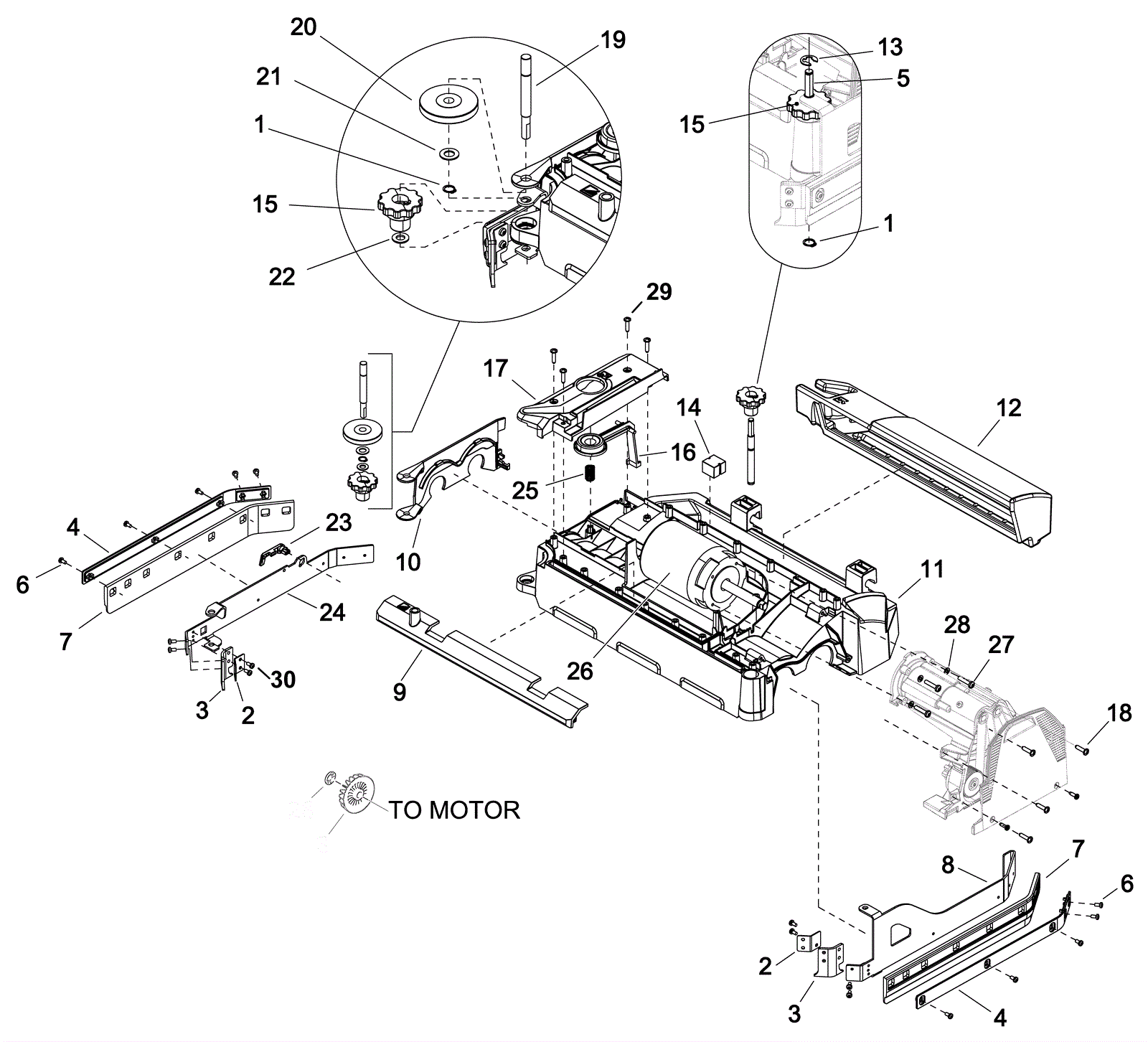

CHARIOT2 ISCRUB22SP Scrub Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-6070 Locking ring $1.27 2 usually ships 7-19 days
2 273-7028 Rubber lip side plate $43.90 2 usually ships 7-19 days
3 273-7032 Side strip $147.29 2 usually ships 7-19 days
4 273-7030 Squeegee blade screen $66.63 2 ships same day
5 273-7031 Lock washer $1.71 1 usually ships 7-19 days
6 173-6196 Screw M5 x 12mm $4.08 18 usually ships 7-19 days
7 273-7032 Side strip $147.29 2 usually ships 7-19 days
8 273-7033 Bracket $206.00 1 usually ships 7-19 days
9 273-7034 Water distributor strip $106.00 1 usually ships 1-5 days
10 273-7035 Brush retainer $82.67 1 usually ships 7-19 days
11 273-7036 Lower housing $619.00 1 usually ships 1-5 days
12 273-7037 Sweep tank counter rotation $481.00 1 usually ships 7-19 days
13 273-7038 Sleeve $88.00 1 usually ships 1-5 days
14 273-7039 Cap $70.14 1 usually ships 1-5 days
15 273-5845 Adjustment wheel $21.90 2 usually ships 1-5 days
16 273-7040 Brush locking $42.50 1 usually ships 1-5 days
17 273-7041 Upper housing lock $73.50 1 usually ships 1-5 days
18 273-6049 Screw 6-10.9 x 25mm $3.08 8 usually ships 1-5 days
19 273-7042 Bolt $101.00 1 ships same day
20 273-7043 Deflector roll $82.50 1 usually ships 7-19 days
21 273-7044 Washer $6.50 1 usually ships 1-5 days
22 273-7045 Washer $3.14 1 usually ships 7-19 days
23 273-7046 Side plate locking bar $99.50 1 usually ships 7-19 days
24 273-4373 Sheet metal strip $242.48 1 usually ships 7-19 days
25 273-7048 Pressure spring $4.73 1 usually ships 1-5 days
26 273-7049 Motor with plug $931.00 1 usually ships 7-19 days
27 999-1261 Washer M6 flat stainless steel $0.99 4 ships same day
28 273-3528 Screw M6 x 30mm A2 $3.22 4 usually ships 1-5 days
29 273-6049 Screw 6-10.9 x 25mm $3.08 8 usually ships 1-5 days
30 999-6676 Screw M5-.8 x 10mm hex socket head stainless steel $0.99 8 ships same day
