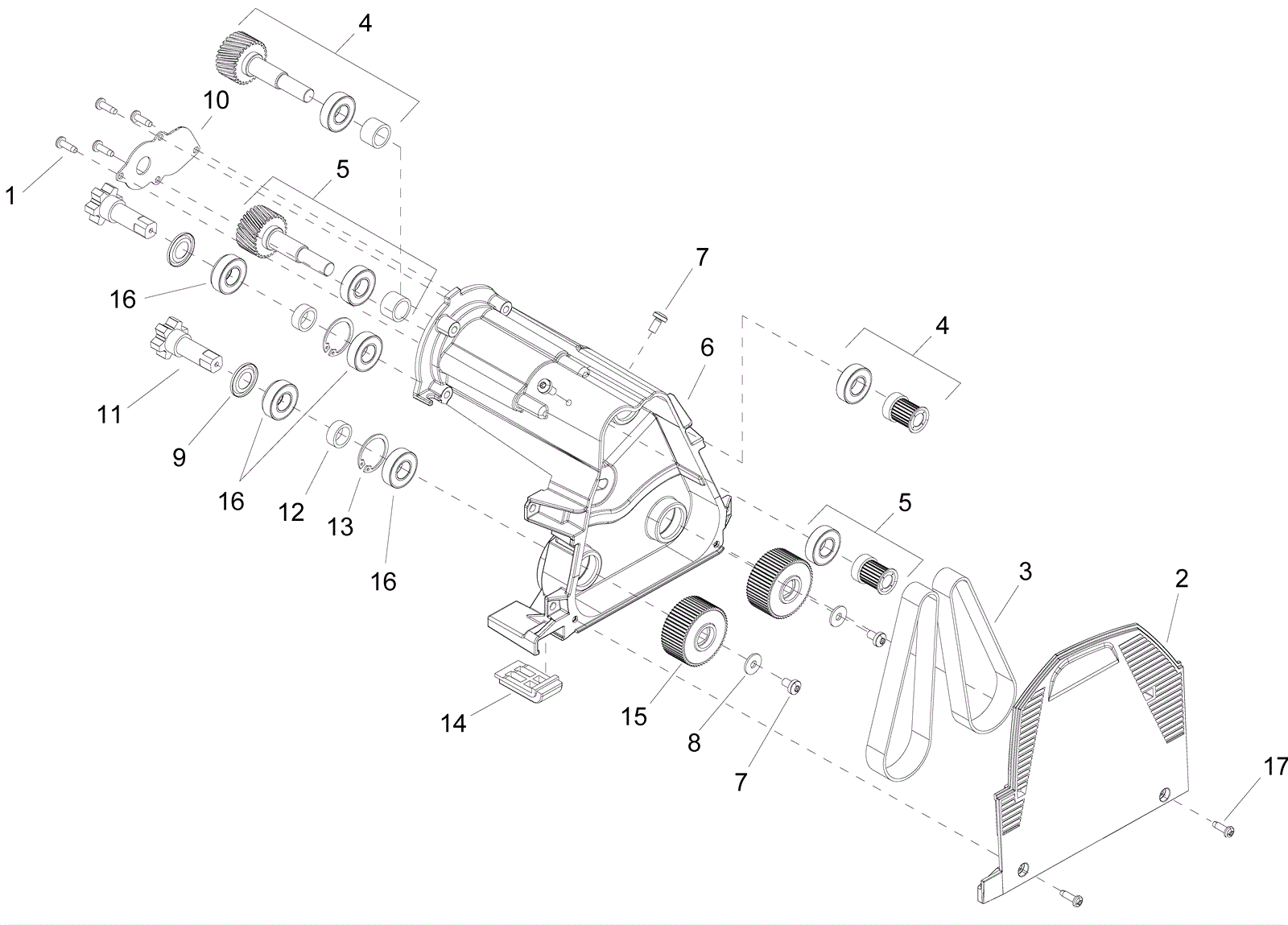

CHARIOT2 ISCRUB22SP Scrub Deck Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1 183-0281 Screw $1.23 4 usually ships 8-21 days
2 273-7019 Gear cover $52.00 1 usually ships 1-5 days
3 273-7020 Toothed belt $101.00 2 usually ships 7-19 days
4 273-7021 Right gear shaft $426.00 1 usually ships 1-5 days
5 273-7900 Left side gear shaft $377.00 1 usually ships 7-19 days
6 273-7022 Carrier motor $118.02 1 usually ships 7-19 days
7 273-7023 Screw M6 x 12 $2.37 3 usually ships 1-5 days
8 173-6337 Washer $1.20 2 usually ships 7-19 days
9 273-7901 Stainless steel joint ring $42.50 2 ships same day
10 273-7902 Gear cap covering $41.30 1 ( if this part is metal you will also need to order 3, 4 and 5) usually ships 7-19 days
11 273-7903 Driveshaft $124.00 2 usually ships 7-19 days
12 173-6284 Spacer sleeve $10.40 2 usually ships 7-19 days
13 273-5828 Locking ring $2.46 2 usually ships 7-19 days
14 273-5816 Rocker $24.30 1 usually ships 7-19 days
15 273-7026 Pulley $37.00 2 usually ships 7-19 days
16 273-5827 Ball bearing $32.50 4 usually ships 7-19 days
17 173-6287 Screw M5 x 16mm $1.76 2 usually ships 1-5 days
