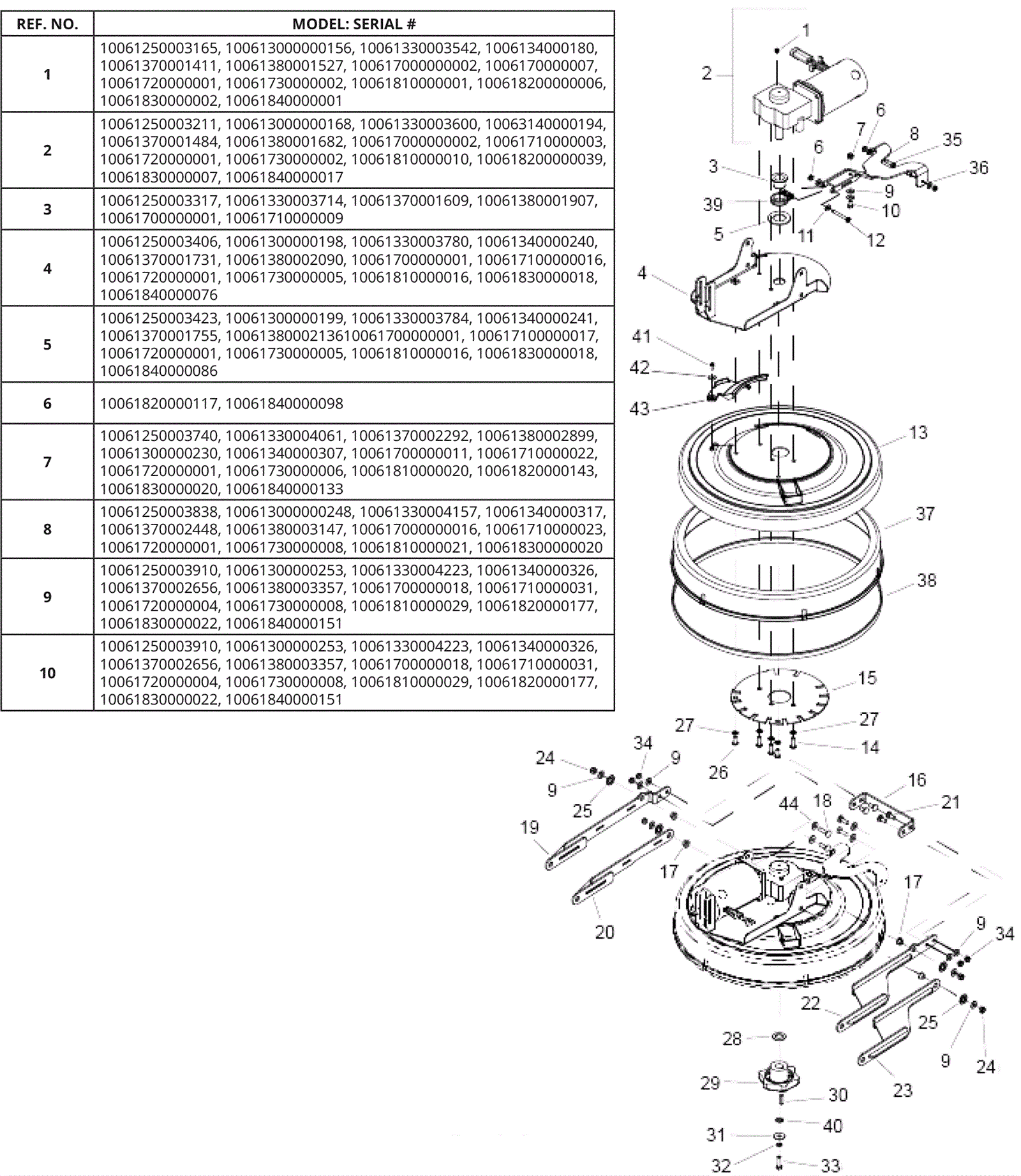

CHARIOT2 ISCRUB20D Scrub Brush Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-7232 Breather vent $21.56 1 usually ships 1-5 days
2a 173-7233 36V brush motor $843.70 1 (includes 1) usually ships 7-19 days
2b 173-7234 Carbon brush (pkg of 2) $65.46 1 usually ships 7-19 days
3 173-7235 Flanged bushing $31.90 1 usually ships 1-5 days
4 273-7018 Motor support assembly $188.10 1 usually ships 1-5 days
5 273-6444 Suction gasket $14.19 1 usually ships 1-5 days
6 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 3 ships same day
7 999-1019 Nut 5/16-18 hex jam stainless steel $0.99 1 ships same day
8 173-7239 Squeegee pivot linkage arm assembly $147.40 1 usually ships 1-5 days
9 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 10 ships same day
10 999-0547 Bolt 5/16-18 x 1/2 hex head stainless steel $0.99 1 ships same day
11 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
12 999-1020 Bolt 1/4-20 x 2 hex head hot dipped galvanized $2.57 1 usually ships 11-24 days
13 173-7241 20 inch scrub deck shroud $182.60 1 usually ships 7-19 days
14 999-0910 Screw M8-1.25 x 25mm button head socket $3.19 3 ships same day
15 173-7243 Shroud support plate $61.60 1 usually ships 7-19 days
16 173-7244 Deck lifting bracket $42.35 1 usually ships 1-5 days
17 273-5628 Flanged bearing $5.50 4 ships same day
18 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 4 ships same day
19 173-7245 Upper right hand deck lifting bracket $129.80 1 usually ships 1-5 days
20 173-7246 Lower right hand deck lifting bracket $114.40 1 usually ships 1-5 days
21 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 4 ships same day
22 173-7247 Upper left hand deck lifting bracket $165.00 1 usually ships 1-5 days
23 173-7248 Lower left hand deck lifting bracket $133.10 1 usually ships 1-5 days
24 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
25 173-3964 Thrust washer $6.44 4 ships same day
26 999-1333 Screw 5/16-18 x 3/4 button head stainless steel $4.17 2 ships same day
27 999-1053 Washer 5/16 internal star lock stainless steel $0.99 5 ships same day
28 173-7250 Washer M19 x 3mm flat stainless steel $5.23 1 usually ships 7-19 days
29 173-1569 Star drive hub $113.32 1 usually ships 7-19 days
30 189-0323 Square keyway $35.72 1 ships same day
31 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 1 ships same day
32 999-0028 Washer 5/16 split lock plain finish $0.99 1 ships same day
33 999-9082 Screw M8-1.25 x 25mm hex head stainless steel $1.85 1 ships same day
34 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
35 173-7252 Bolt 5/16 x 5/8 shoulder stainless steel $21.12 2 usually ships 7-19 days
36 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
37 173-7253 20 inch brush skirt $70.40 1 usually ships 7-19 days
38 173-7254 20 inch flexible brush strip $50.71 1 usually ships 7-19 days
39 173-7236 Bracket $43.67 1 usually ships 1-5 days
40 173-7256 Spacer $8.64 1 usually ships 7-19 days
41 173-2566 Screw #10 x 1/2 pan head $1.03 1 ships same day
42 173-7257 Washer #10 -.75 x .04 nylon $1.03 1 usually ships 7-19 days
43 173-7258 Brush release cover $18.04 1 usually ships 7-19 days
44 173-3985 Washer 7/16 flat stainless steel $1.21 4 (see SN reference number 3) usually ships 7-19 days
