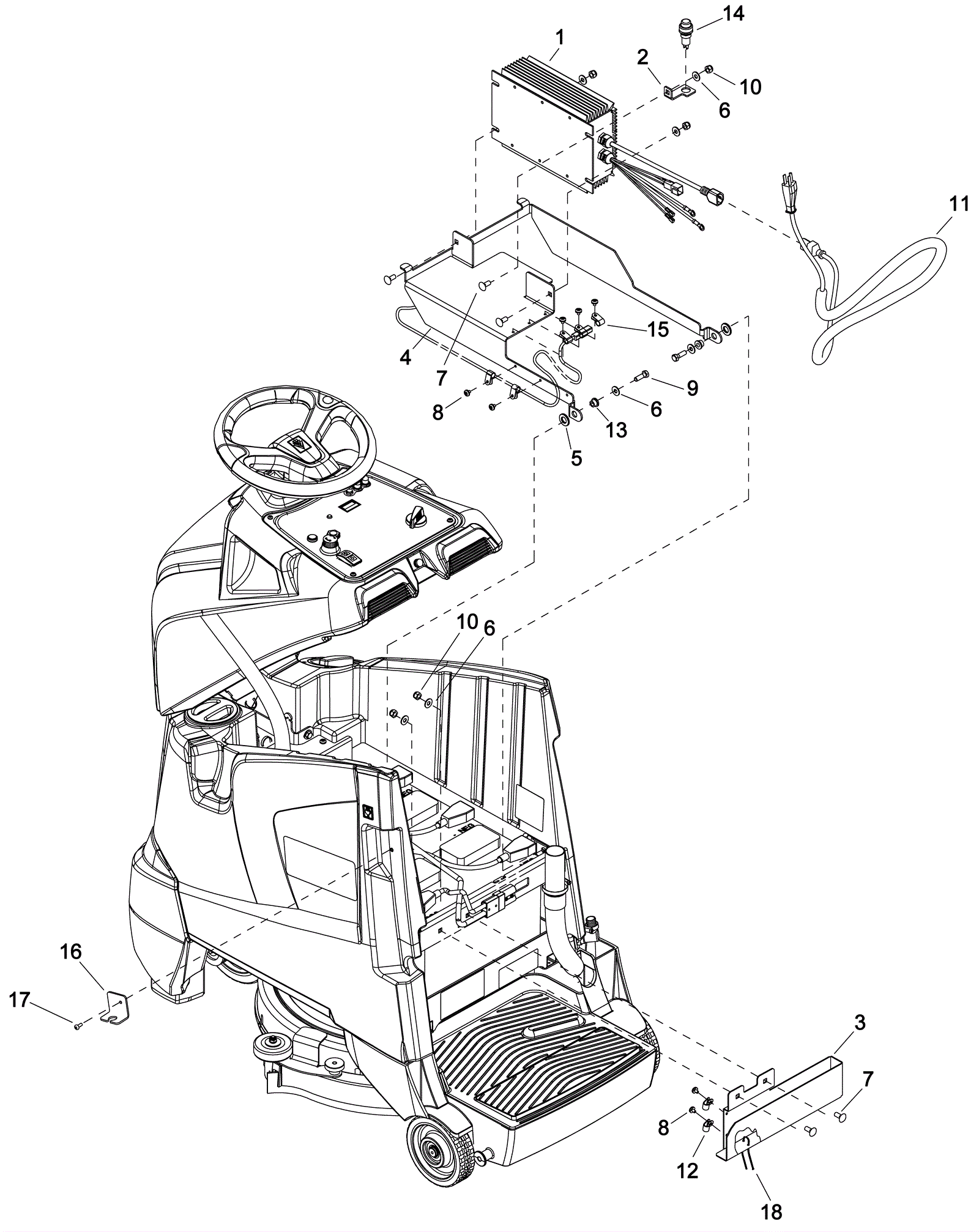

CHARIOT2 ISCRUB20D On Board Battery Charger Assembly - Deluxe and Cylindrical

#PartDescriptionPriceReqNotesAvailability
1a 173-7309 36V 15amp onboard battery charger kit $1,452.00 1 (before SN 10061250002173, 10061300000030, 10061330002351, 10061340000042, 10061370000355, 10061380000388) usually ships 7-19 days
1b 273-7013 36V 15amp onboard battery charger kit $1,424.50 1 (after SN 10061250002171, 10061300000028, 1006130002349, 10061340000040, 10061370000353, 10061380000386) ships same day
2 173-7310 Charger meter bracket (OBSOLETE) $31.23 1 usually ships 7-19 days
3 273-7015 Charger cord storage bracket $165.00 1 usually ships 1-5 days
4 173-7312 Charger bracket $288.20 1 usually ships 7-19 days
5 173-3963 Washer 1/2 thrust $7.32 2 usually ships 7-19 days
6 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 7 ships same day
7 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 5 ships same day
8a 273-7014 Screw 10-32 x 5/16 (OBSOLETE) $2.97 7 (before SN 10061250002173, 10061300000030, 10061330002351, 10061340000042, 10061370000355, 10061380000388) usually ships 7-19 days
8b 173-8400 Screw 10-32 x 1/4 $1.03 7 (after SN 10061250002171, 10061300000028, 1006130002349, 10061340000040, 10061370000353, 10061380000386) usually ships 7-19 days
10 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 5 ships same day
11 273-7016 16/3 on board charger cord (OBSOLETE) $136.40 1 usually ships 7-19 days
12 173-1800 5/16 nylon clamp (OBSOLETE) $0.99 2 usually ships 7-19 days
13 273-5628 Flanged bearing $5.50 2 ships same day
14 173-7313 Battery charge meter (OBSOLETE) $122.10 1 usually ships 7-19 days
15 173-2099 P clamp (OBSOLETE) $1.39 5 usually ships 7-19 days
16 273-7017 Charger cord bracket $70.70 1 ships same day
17 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 1 ships same day
18 273-3820 11 inch cable tie $0.41 1 ships same day
