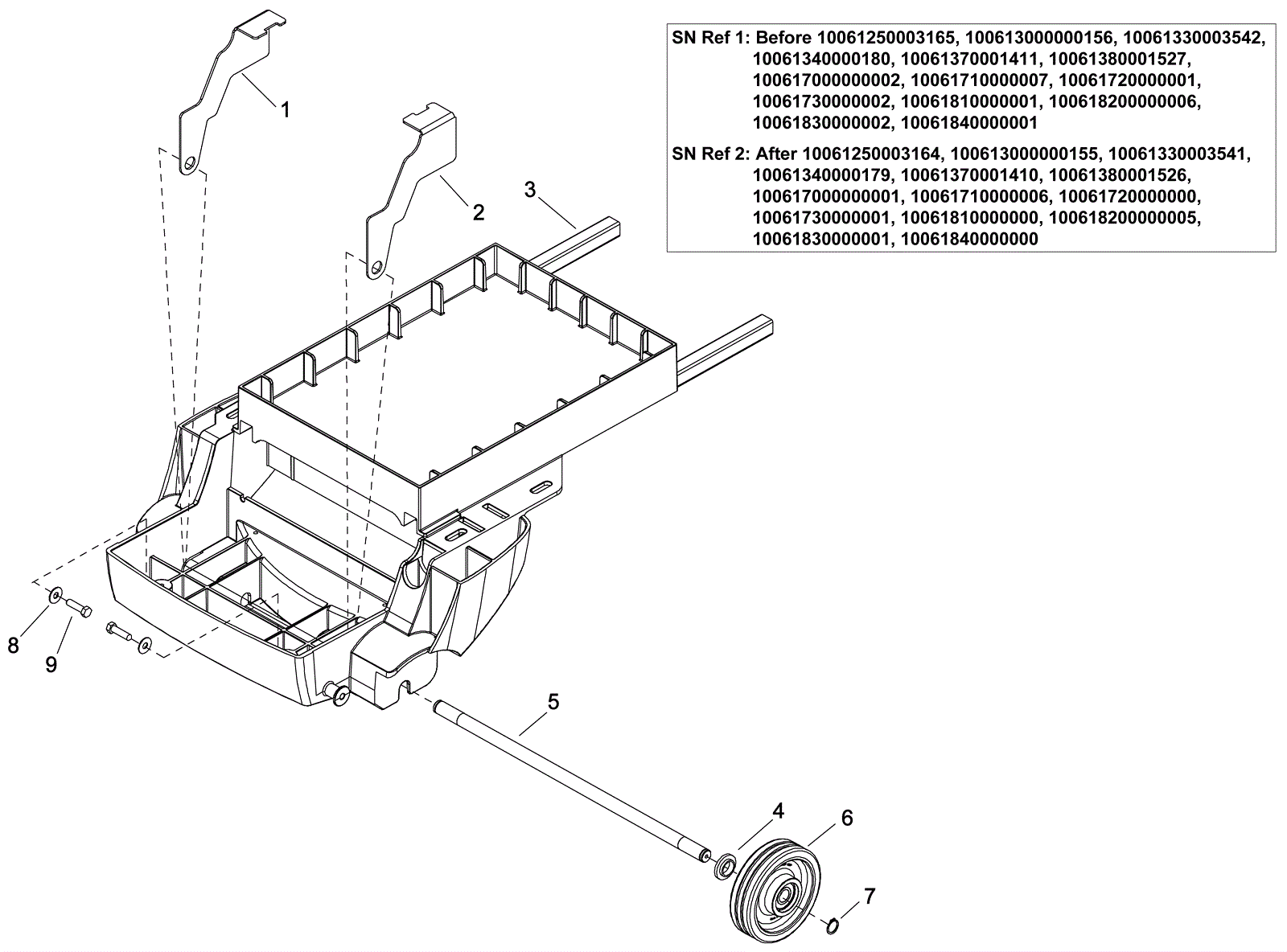

CHARIOT2 ISCRUB20D Frame and Rear Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-7205 Left hand frame bracket $37.07 1 usually ships 7-19 days
2 173-7206 Right hand frame bracket $40.70 1 usually ships 7-19 days
3a 273-7011 Frame assembly $407.00 1 (includes 8-9) usually ships 7-19 days
3b 273-4351 Frame assembly $507.10 1 (for models with chemical metering) usually ships 7-19 days
4 173-7208 Spacer $3.82 2 usually ships 7-19 days
5 173-7209 Axle $98.45 1 usually ships 7-19 days
6 173-7210 Wheel (set of 2) $156.22 1 usually ships 7-19 days
7 173-4748 External snap ring (OBSOLETE) $0.99 2 usually ships 7-19 days
8 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
9 999-1489 Screw 3/8-16 x 1 1/2 hex head stainless steel $1.72 2 ships same day
