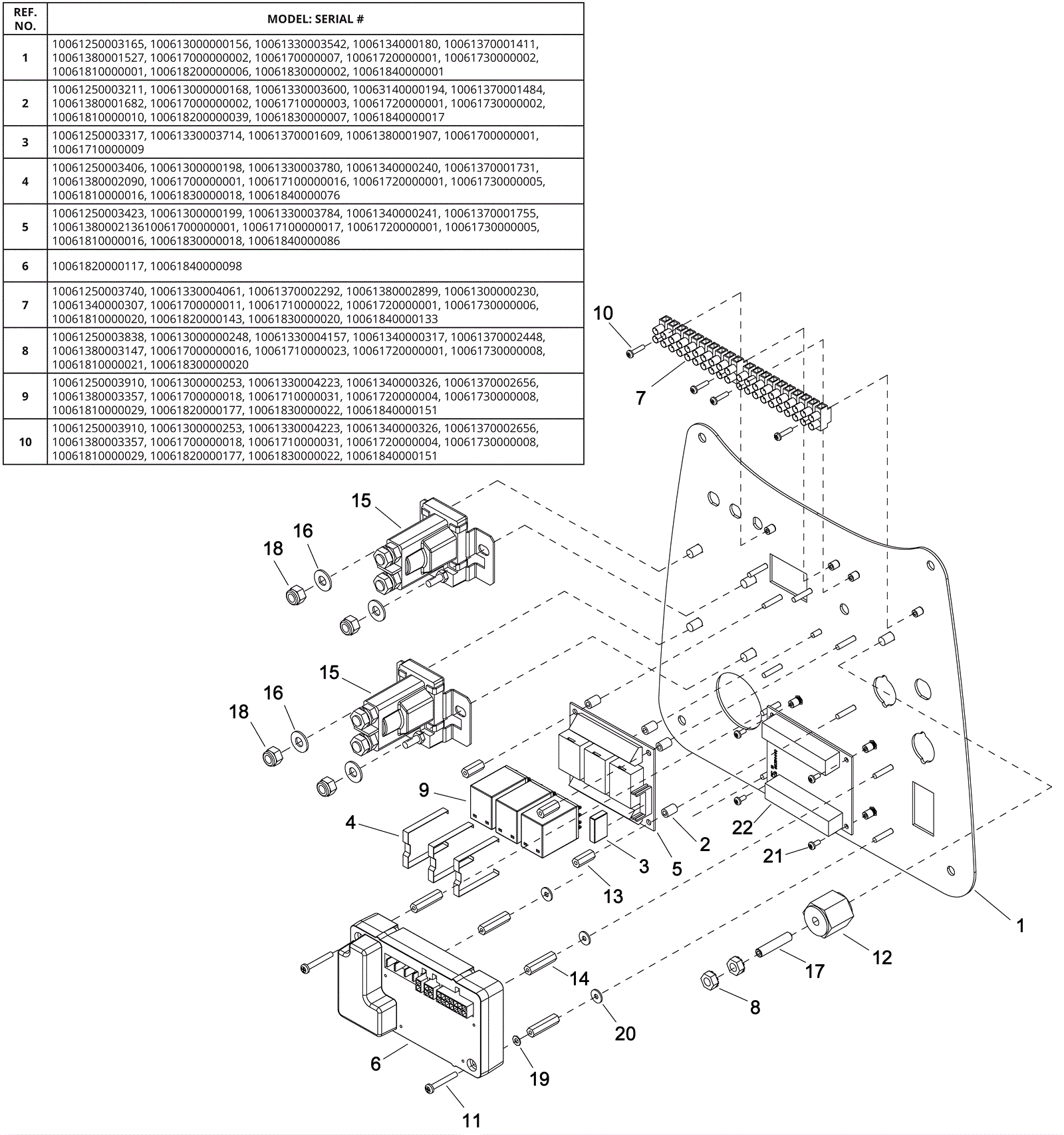

CHARIOT2 ISCRUB20D Control Panel Assembly - 1

#PartDescriptionPriceReqNotesAvailability
1 273-6989 Control panel $226.60 1 usually ships 1-5 days
2 273-6627 Spacer $1.40 5 usually ships 7-19 days
3a 273-7003 Relay circuit board $454.30 1 (see SN reference number 1-7) (to replace omron relay only) usually ships 7-19 days
3b 273-6698 Relay (OBSOLETE) $17.27 1 (see SN reference number 8-10) (to replace pansonic relay only) usually ships 7-19 days
4 273-6625 Relay clip $4.18 3 usually ships 7-19 days
5 273-7003 Relay circuit board $454.30 1 usually ships 7-19 days
6a 273-6473 Controller $731.50 1 ships same day
6b 273-7944 Controller $336.60 1 (see SN reference number 6-10) (for models 1.006-182.0 and 1.006-184.0) usually ships 7-19 days
6c 273-7943 Controller $538.00 1 (see SN reference number 4-10) usually ships 7-19 days
7 173-5965 10 position connector with 8mm pitch $31.13 2 usually ships 1-5 days
8 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 2 ships same day
9 273-0912 5amp relay $24.64 3 usually ships 7-19 days
10 999-1330 Screw 4-40 x 1/2 pan head stainless steel $0.99 4 ships same day
11 999-0974 Screw 6-32 x 1 1/4 pan head phillips stainless steel $7.92 2 ships same day
12 173-1145 Insulated stand-off $22.55 1 usually ships 7-19 days
13 173-1520 Nylon standoff $6.66 2 ships same day
14 273-6622 Nylon standoff 6-32 x 1.25 $6.22 4 usually ships 1-5 days
15 173-1872 100amp relay $90.75 2 usually ships 7-19 days
16 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
17 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 1 ships same day
18 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 4 ships same day
19 999-0148 Washer #6 external star lock zinc plated $0.99 1 ships same day
20 999-1158 Washer #6 flat stainless steel $0.99 3 ships same day
21 173-2014 Screw 4-40 x 1/4 $0.99 4 usually ships 1-5 days
22a 273-7004 Control board $157.62 1 ships same day
22b 273-7945 PCB board $278.30 1 (chemical metering) usually ships 7-19 days
22c 273-7946 PCB assembly $193.60 1 (for models 1.006-182.0 and 1.006-184.0) usually ships 7-19 days
