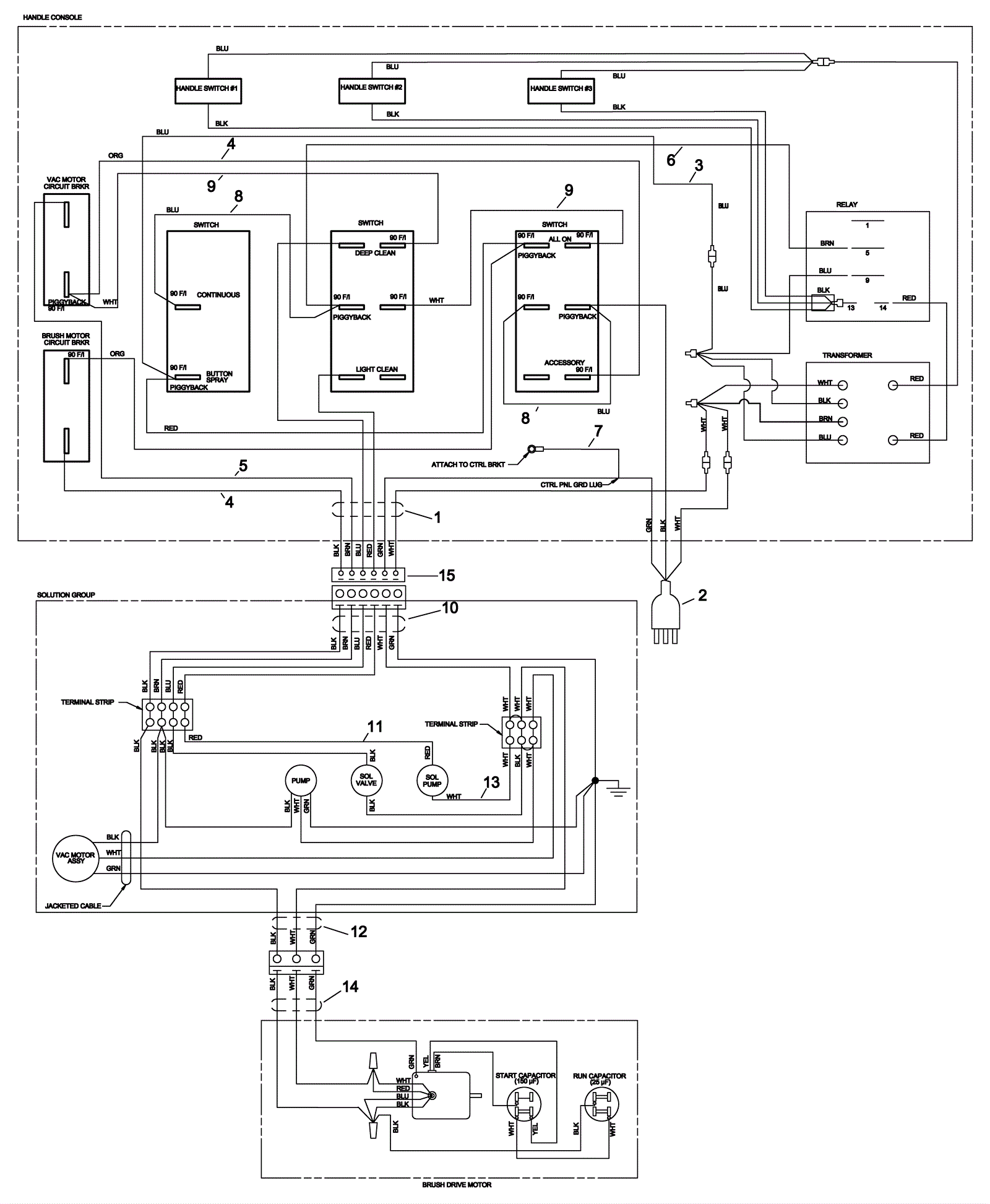

CLIPPER DUO Wiring Diagram Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-5751 Handle harness $102.30 1 usually ships 7-19 days
2 173-5320 14/3 pigtail cord assembly with twist lock 22 inch $90.76 2 ships same day
3 273-5752 540 mm wire (blue) Call for price 1 usually ships 1-5 days
4 273-5753 240mm wire (orange) (OBSOLETE) $12.21 2 usually ships 7-19 days
5 273-5754 150mm wire (red) $6.22 1 ships same day
6 273-5755 605mm wire (brown) (OBSOLETE) $12.76 1 usually ships 7-19 days
7 273-5756 15 inch wire (green) (OBSOLETE) $11.11 1 usually ships 7-19 days
8 273-5757 80mm wire (blue) (OBSOLETE) $38.50 2 usually ships 7-19 days
9 273-5758 150mm wire (white) $11.11 2 ships same day
10 273-5708 Handle harness connector $79.20 1 usually ships 1-5 days
11 273-5759 10 inch wire (white) $13.20 1 ships same day
12 273-5760 Brush deck harness $94.05 1 usually ships 1-5 days
13 273-5761 10 inch wire (red) $14.41 1 ships same day
14 273-5762 Brush deck wiring harness $67.65 1 usually ships 7-19 days
15 273-5763 Handle harness connector (OBSOLETE) $130.90 1 usually ships 7-19 days
