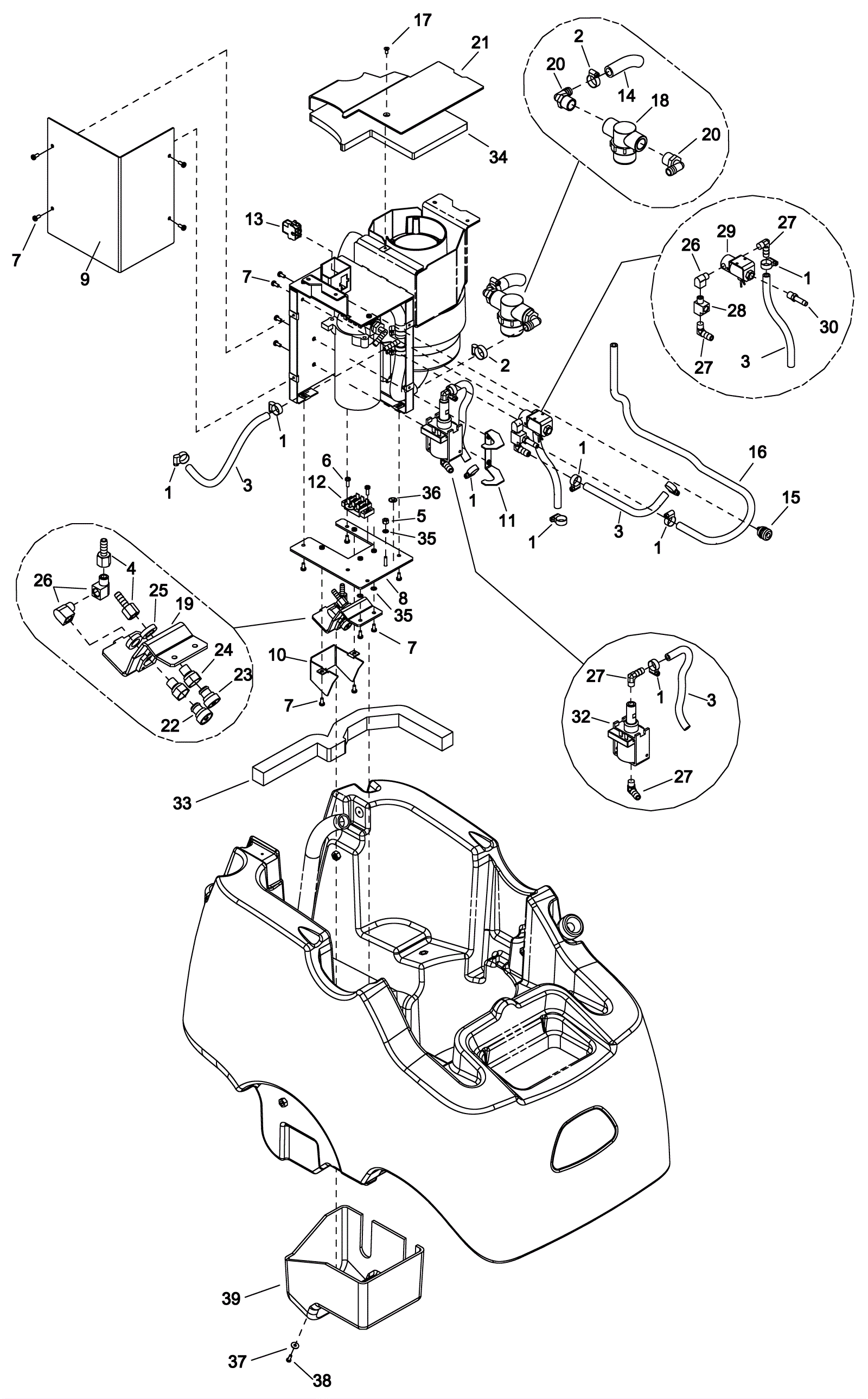

Solution Assembly- External

#PartDescription ReqNotesAvailability
1 173-2741 Hose clamp 9
2 173-1821 Hose clamp 2
3 173-5322 Hose nylon braid 1/4 x 8 inch 4
4 173-9751 Hosebarb 1/8 x 1/4 inch 2
5 999-0308 Nut 8-32 plain 1
6 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 2
7 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated 15
8 273-5703 Bottom plate 1
9 273-5704 Side cover 1
10 273-5705 Nozzel mounting cover 1
11 273-5706 Solenoid pump clamp 1
12 273-5707 3 position terminal strip 1
13 273-5708 Handle harness connector 1
14 173-8326 Wire bound hose 1/2 x 8 inch 1
15 273-5709 Strain relief bushing 1
16 273-5710 Nylon braided hose 1/4 x 27 inch 1
17 999-0437 Screw 8-32 x 1/2 flat head phillips zinc plated 1
18 173-8612 Solution filter with screen 1 (screen not available separately (screen not available separately)
19 273-5712 Nozzel mounting assembly 1
20 173-1685 Hosebarb 1/2 x 1/2 inch 2
21 273-5713 Acoustic baffle 1
22 173-5329 Spray nozzle jet 1
23 173-8641 Promax jet 11001 1
24 173-2210 Jet body 2
25 173-2555 Washer 7/16 x 3/16 inch rubber 2
26 173-2223 90 degree elbow 3
27 273-5715 Hosebarb 1/8 x 1/4 inch 4
28 273-5716 1/8 inch street run tee nickel plated thread 1
29 173-5321 Solenoid valve 1
30 173-4999 Hose barb 1/8 x 1/4 1
32 173-7036 120V flojet pump 1
33 273-5718 Foam 1
34 273-5719 Solution foam lid assembly 1
35 999-0311 Washer #10 external star lock zinc plated 3
36 173-2188 Ground symbol decal 1
37 999-0998 Washer #10 flat stainless steel 1
39 273-7875 Lower trim solution cover 1
