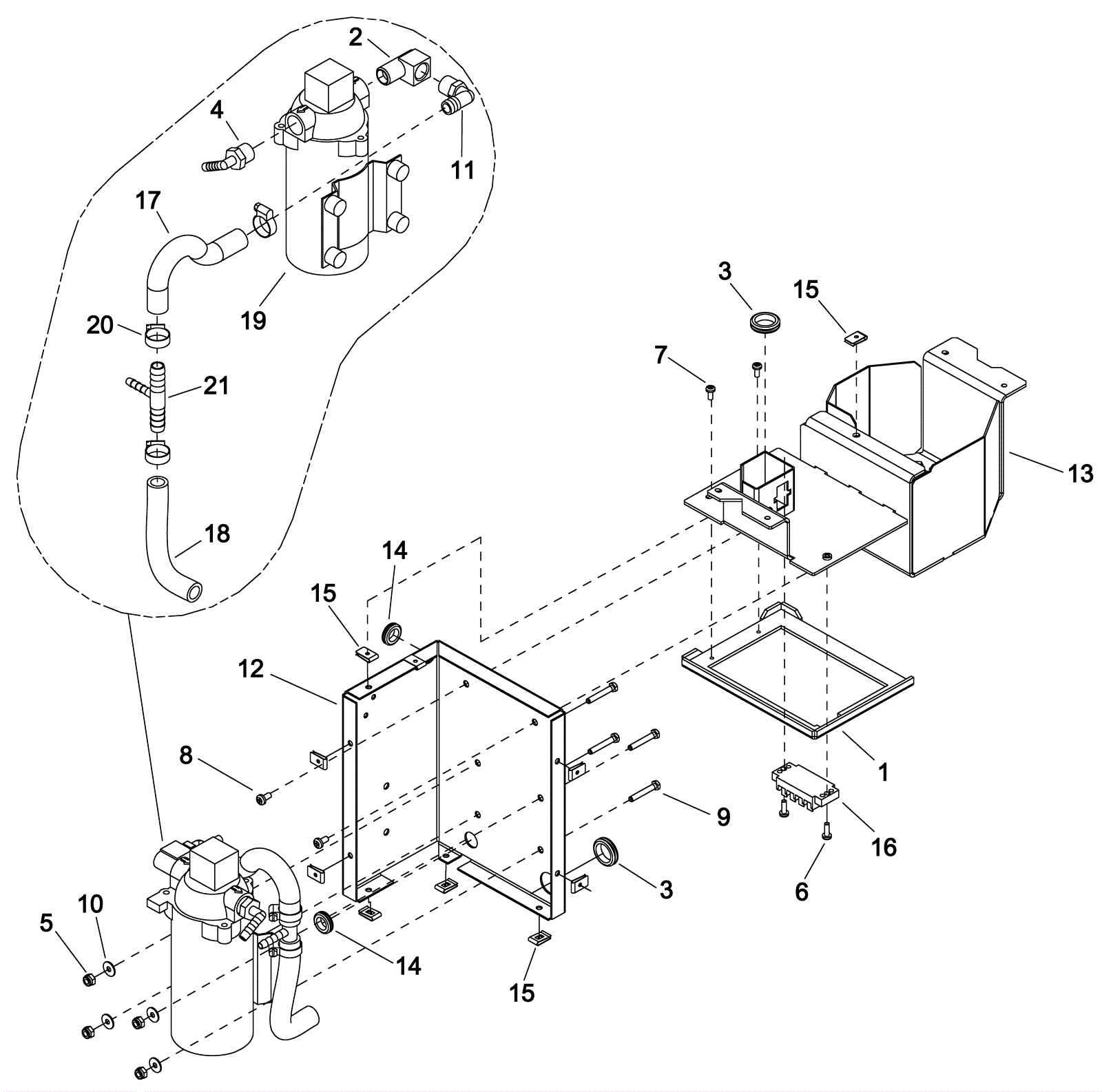

CLIPPER DUO Solution Assembly- Internal

#PartDescriptionPriceReqNotesAvailability
1 273-5694 Solution gasket assembly $19.58 1 usually ships 1-5 days
2 173-0965 3/8 inch street elbow nickel plated $15.73 1 usually ships 7-19 days
3 273-5695 Grove grommet $37.04 2 usually ships 7-19 days
4 173-4129 90 degree hosebarb 3/8 x 1/4 inch $13.64 1 usually ships 1-5 days
5 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 4 ships same day
6 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 2 ships same day
7 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated $0.99 2 ships same day
8 999-0896 Screw 10-32 x 3/8 round head phillips stainless steel $0.99 2 ships same day
9 273-5665 Screw 10-32 x 1mm hex head $2.44 4 usually ships 1-5 days
10 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
11 173-1072 Hosebarb 3/8 x 1/2 inch $9.24 1 usually ships 7-19 days
12 273-5696 Solution bracket assembly $67.10 1 usually ships 1-5 days
13 273-5697 Frame solution assembly $231.00 1 usually ships 1-5 days
14 273-5698 Grommet $9.74 4 usually ships 1-5 days
15 273-5699 Nut #8 x 32 speed $5.50 10 usually ships 7-19 days
16 273-5700 4-position terminal strip $27.39 1 usually ships 1-5 days
17 173-8326 Wire bound hose 1/2 x 8 inch $32.89 1 ships same day
18 173-1691 Wire bound hose 1/2 x 5 inch $25.74 1 usually ships 1-5 days
19 273-5701 110V 100PSI pump assembly $586.30 1 usually ships 7-19 days
20 173-1821 Hose clamp $6.39 3 ships same day
21 273-5702 Tee hosebarb 1/2 x 1/4 x 1/2 inch $11.99 1 usually ships 1-5 days
