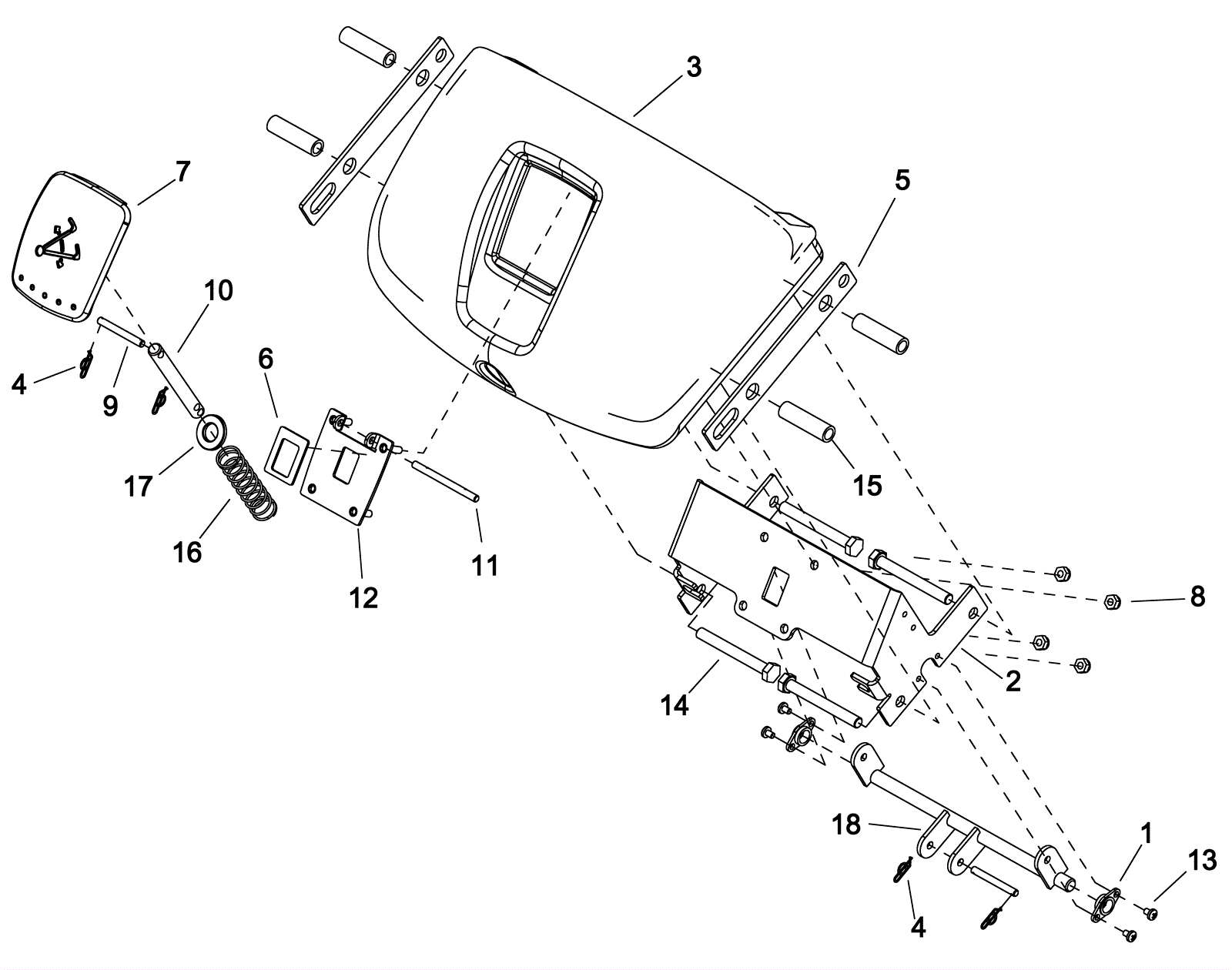

CLIPPER DUO Handle Release Lever Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-5675 Flanged bearing $13.86 2 usually ships 1-5 days
2 273-5676 Lever console bracket $77.55 1 usually ships 1-5 days
3 273-8969 Console trim (black) $34.76 1 usually ships 7-19 days
4 173-1130 Cotter ring $2.42 4 ships same day
5 273-5678 Console tube gasket $6.00 2 usually ships 1-5 days
6 273-5679 Lever handle gasket Call for price 1 usually ships 1-5 days
7 273-5680 Pivot handle lever $29.34 1 usually ships 1-5 days
8 273-5681 Nut 10-32 hex nylon lock stainless steel $11.55 4 usually ships 1-5 days
9 273-5682 Lever shaft pin $0.99 2 usually ships 1-5 days
10 273-5683 Linkage pin $16.83 1 usually ships 1-5 days
11 273-5684 Pivot lever pin $5.28 1 usually ships 1-5 days
12 273-5685 Pivot lever plate Call for price 1 usually ships 1-5 days
13 273-5637 Screw M4-.7 x 6mm phillips head $1.45 4 usually ships 1-5 days
14 999-9078 Screw M8 x 70mm hex head $1.27 4 usually ships 1-5 days
15 273-5687 Spacer $5.35 4 usually ships 1-5 days
16 173-5493 Spring $10.62 1 usually ships 7-19 days
17 173-3963 Washer 1/2 thrust $7.32 1 usually ships 7-19 days
18 273-5688 Pivot shaft weldment lever $9.02 1 usually ships 1-5 days
