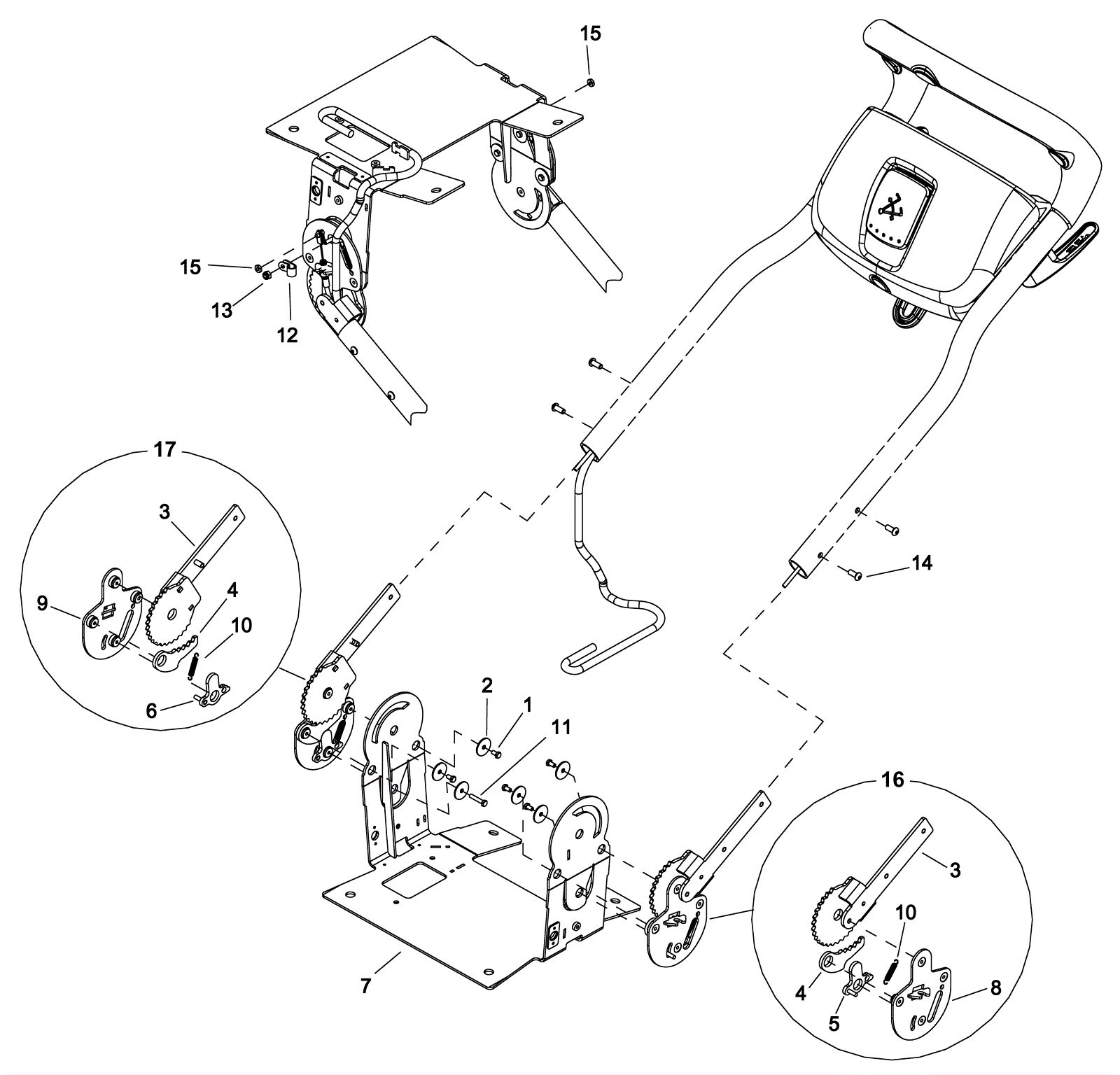

CLIPPER DUO Handle Bracket Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1276 Screw 10-32 x 3/8 hex head stainless steel $0.99 5 ships same day
2 999-0006 Washer 3/16 flat zinc plated $0.99 6 ships same day
3 273-5657 Handle pivot bracket $88.28 2 usually ships 11-15 days
4 273-5658 Handle pivot latch plate $20.13 2 usually ships 11-15 days
5 273-5659 Left handle release lever $29.30 1 usually ships 11-15 days
6 273-5660 Right handle release lever $29.30 1 usually ships 11-15 days
7 273-5661 Handle tank mount bracket $293.07 1 usually ships 1-5 days
8 273-5662 Left mechanism mount $253.06 1 usually ships 11-15 days
9 273-5663 Right mechanism mount $253.06 1 usually ships 1-5 days
10 273-5664 Extension spring $37.66 2 usually ships 11-15 days
11 273-5665 Screw 10-32 x 1mm hex head $2.44 1 usually ships 1-5 days
12 173-1709 P clamp (OBSOLETE) $2.30 1 usually ships 11-15 days
13 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 1 ships same day
14 999-0395 Screw 1/4-20 x 5/8 button head socket plain finish $0.99 4 ships same day
15 999-1353 Nut 10-32 hex nylon lock insert stainless steel $0.99 2 ships same day
16 273-5668 Left handle pivot kit $343.68 1 (includes 3, 4, 5, 8 and 10) usually ships 11-15 days
17 273-5669 Right handle pivot kit $343.68 1 (includes 3, 4, 6, 9 and 10) usually ships 11-15 days
