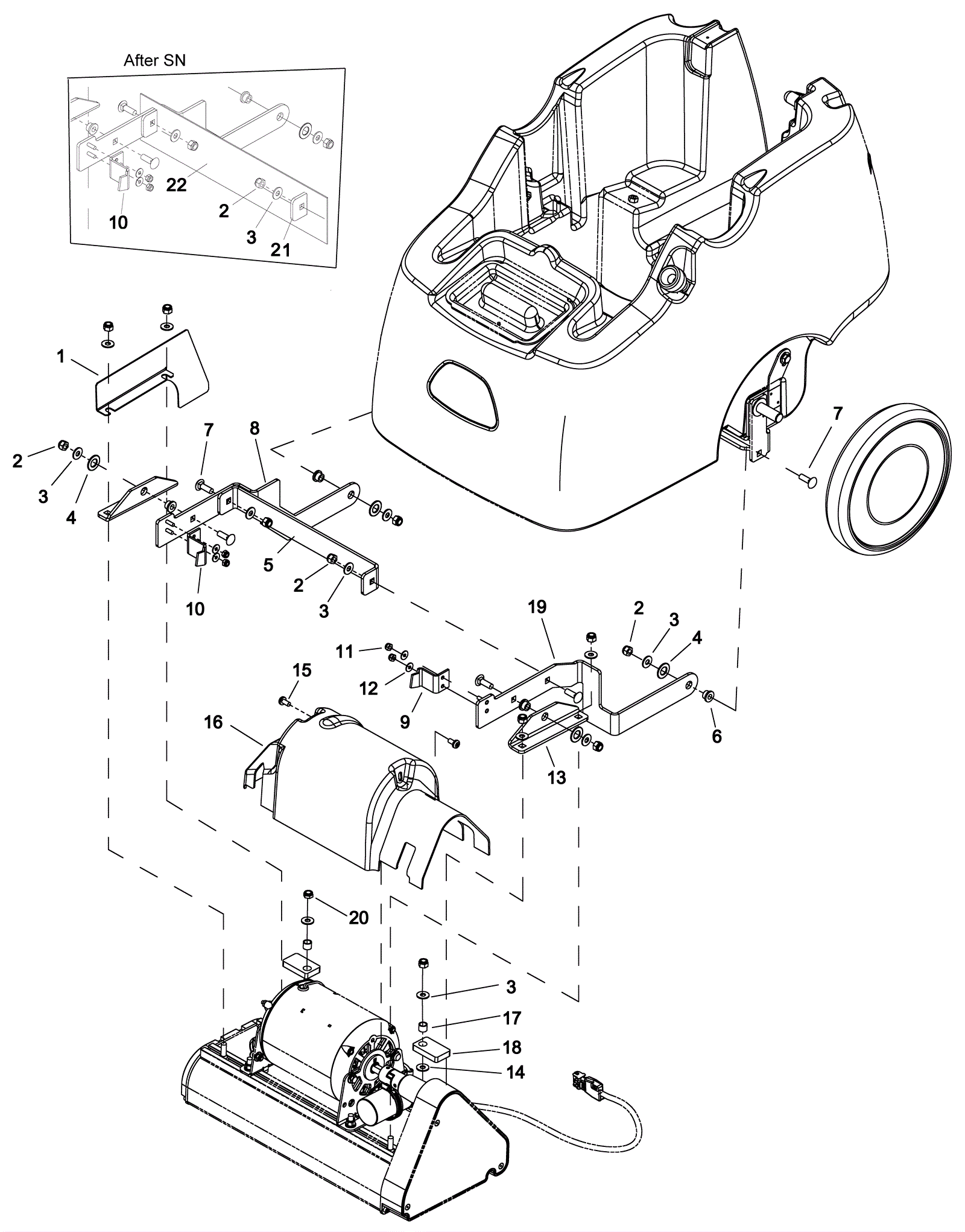

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-5626
|
Spray deflector |
1 |
|
|
2 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
11 |
|
|
3 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
13 |
|
|
4 |
173-3964
|
Thrust washer |
4 |
|
|
5 |
273-5627
|
Deck arm crossbar bracket |
1 |
(Before SN 1000090716) |
|
6 |
273-5628
|
Flanged bearing |
4 |
|
|
7 |
999-0252
|
Screw 5/16-18 x 1 carriage head grade 5 zinc |
8 |
|
|
8 |
273-5629
|
Deck arm bracket right |
1 |
|
|
9 |
273-5630
|
Deck hanger bracket left |
1 |
|
|
10 |
273-5631
|
Deck hanger bracket right |
1 |
|
|
11 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
4 |
|
|
12 |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
13 |
273-5632
|
Brush deck pivot bracket |
2 |
|
|
14 |
273-5613
|
Washer 5/16 x .63mm stainless steel |
1 |
|
|
15 |
999-0522
|
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
2 |
|
|
16 |
273-8955
|
Brush deck motor cover |
1 |
|
|
17 |
173-1591
|
Spacer |
2 |
|
|
18 |
273-5634
|
Brush deck cushion |
2 |
|
|
19 |
273-5635
|
Deck arm bracket left |
1 |
|
|
20 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
1 |
|
|
21 |
273-5627
|
Deck arm crossbar bracket |
1 |
(After SN 1000090717) |
|
22 |
273-4223
|
Splash guard |
1 |
(After SN 1000090717) |
|
