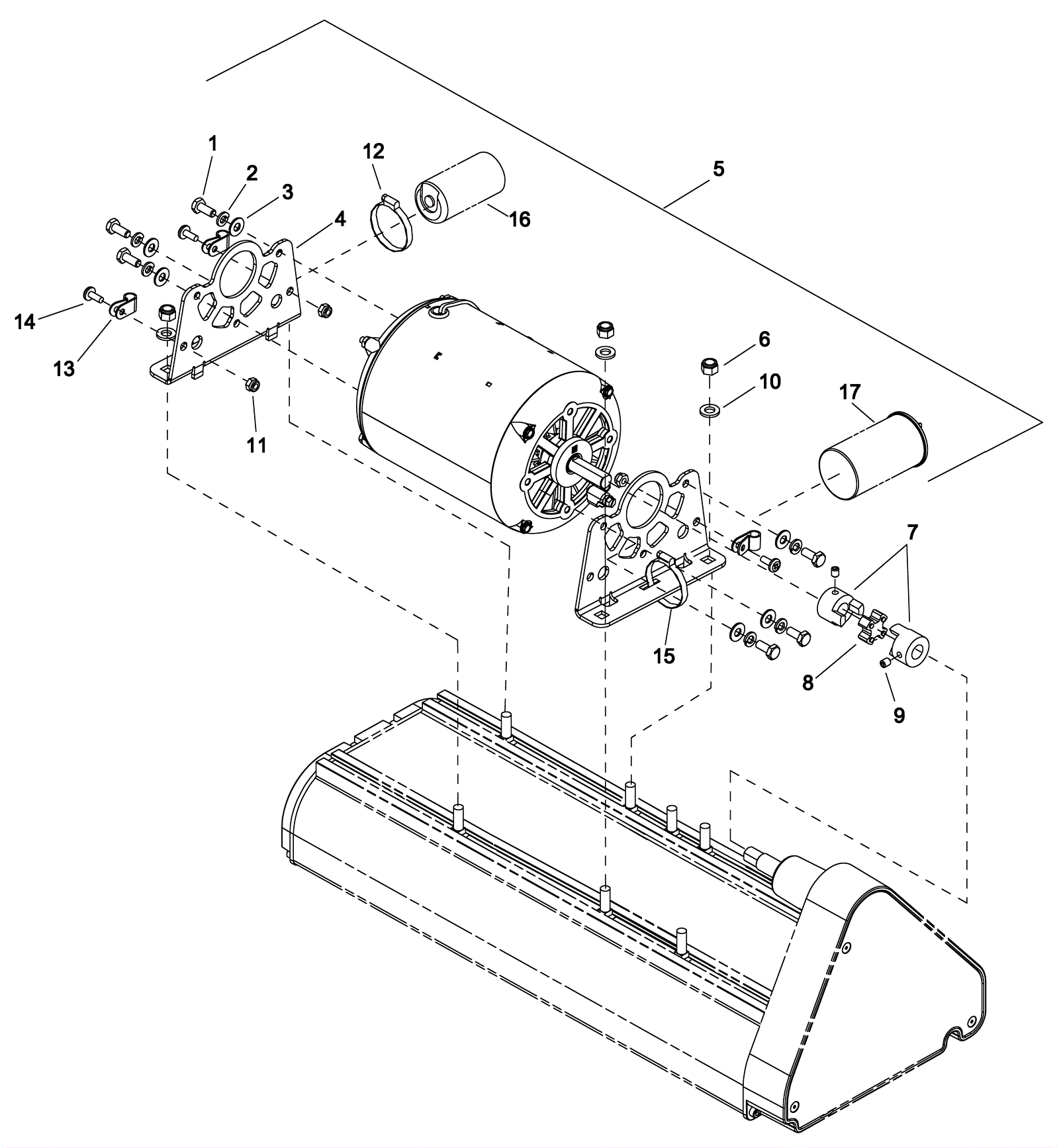

CLIPPER DUO Brush Motor Assmbly- Internal

#PartDescriptionPriceReqNotesAvailability
1 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 6 ships same day
2 999-0632 Washer 1/4 split lock stainless steel $0.99 6 ships same day
3 999-0123 Washer 1/4 SAE flat zinc plated $0.99 6 ships same day
4 273-5608 Motor mounting bracket $30.91 2 usually ships 1-5 days
5 273-5609 115V brush motor assembly $812.90 1 (includes 4, 16, 17) usually ships 7-19 days
6 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 3 ships same day
7 273-5610 35mm coupler kit $172.70 2 usually ships 7-19 days
8 273-5611 Spider coupler $97.90 1 usually ships 7-19 days
9 999-1413 Screw M6-1 x 8mm socket cup point set $0.99 2 ships same day
10 273-5613 Washer 5/16 x .63mm stainless steel $2.12 3 usually ships 7-19 days
11 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 3 ships same day
12 997-2000 Hose clamp $2.37 1 ships same day
13 173-1800 5/16 nylon clamp (OBSOLETE) $0.99 3 (Only on models before SN 86408800) usually ships 7-19 days
14 999-1341 Screw 10-32 x 2 1/2 truss head phillips zinc $1.19 3 (Only on models before SN 86408800) ships same day
15 273-5615 Worm gear clamp $18.26 1 usually ships 7-19 days
16 273-5617 150uF capacitor start $62.27 1 usually ships 7-19 days
17 273-5616 25uF capacitor run $67.65 1 usually ships 7-19 days
