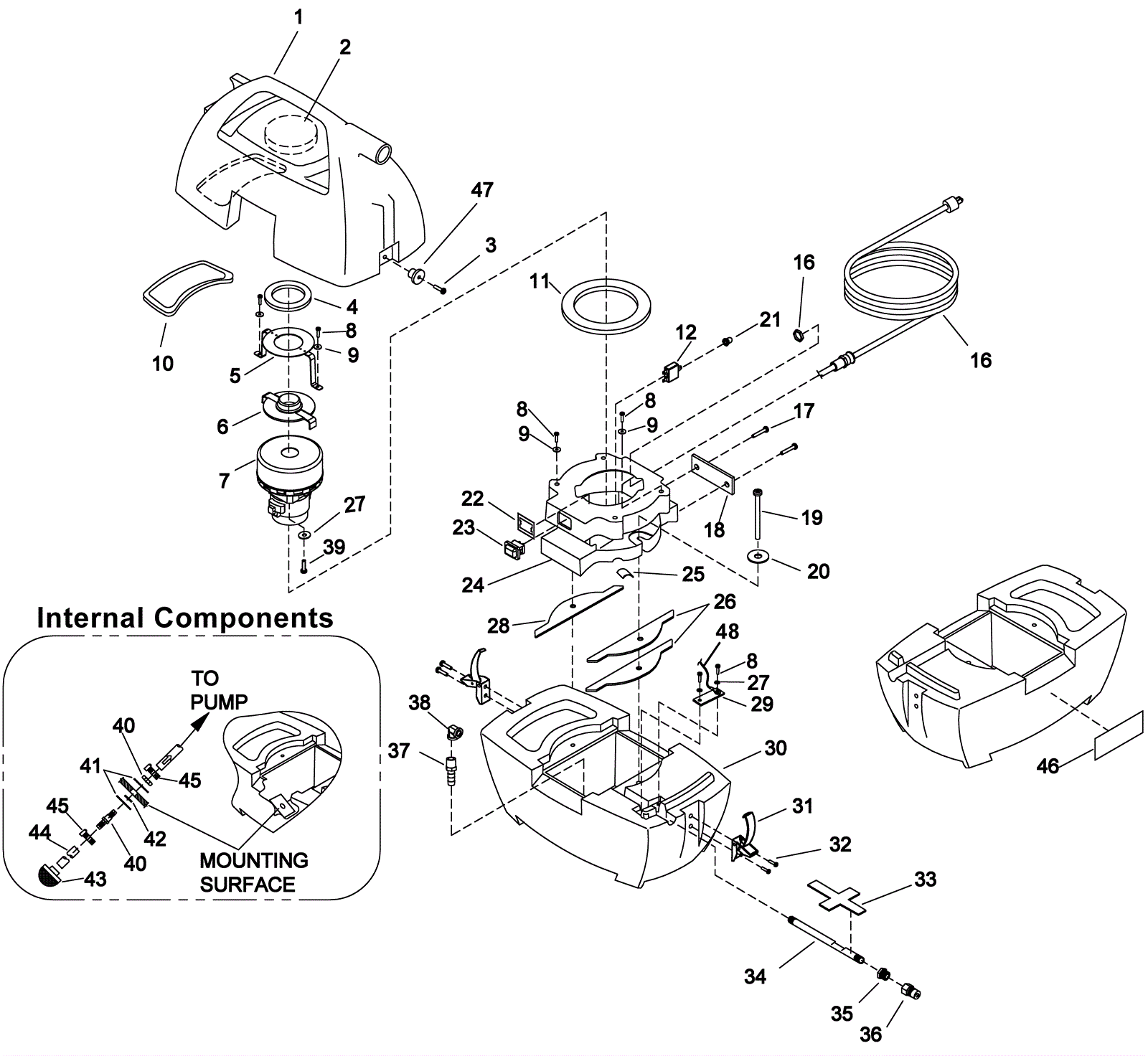

PRESTO 3 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-2688 Recovery tank $423.50 1 usually ships 7-19 days
2 173-2692 Foam $16.39 1 usually ships 7-19 days
3 999-1148 Screw 8-32 x 1/2 filister head slotted stainless steel $0.99 2 ships same day
4 273-0910 Vacuum bracket gasket $28.93 1 usually ships 7-19 days
5 273-5554 Vacuum motor retainer $26.84 1 usually ships 1-5 days
6 273-5555 Vacuum motor cover $30.58 1 usually ships 7-19 days
7 273-0903 120V vacuum motor $146.32 1 usually ships 7-19 days
8 999-0896 Screw 10-32 x 3/8 round head phillips stainless steel $0.99 6 ships same day
9 999-1261 Washer M6 flat stainless steel $0.99 4 ships same day
10 173-2709 Gasket $26.73 1 usually ships 7-19 days
11 173-2696 Gasket $29.59 1 usually ships 7-19 days
12 273-5447 8amp circuit breaker $9.79 1 ships same day
16a 173-5365 14/3 power cord 25 foot (yellow) $113.30 1 (OEM) usually ships 1-5 days
16b 991-5006 16/3 replacement power cord 50 foot (yellow) $37.50 1 (NON-OEM) ships same day
16c 991-5002 16/3 extension cord 50 foot (yellow) $48.73 1 (NON-OEM) ships same day
16d 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 1 (NON-OEM) ships same day
17 173-9578 Rivet M3 x 12mm $0.99 2 usually ships 1-5 days
18 173-2710 Data decal plate $24.53 1 usually ships 1-5 days
19 999-0398 Screw 1/4-20 x 1 1/2 pan head phillips zinc plated $0.99 2 ships same day
20 273-5561 Washer M8 flat $13.42 2 usually ships 1-5 days
21 189-0312 3/8 inch circuit breaker boot $59.75 1 usually ships 11-24 days
22 173-2084 Switch retaining clip $8.09 1 usually ships 7-19 days
23 273-0902 DPST switch $22.55 1 usually ships 1-5 days
24 173-2698 Vacuum motor housing $242.00 1 usually ships 1-5 days
25 173-2717 Gasket $4.11 1 usually ships 1-5 days
26 173-2708 Gasket $12.76 2 usually ships 7-19 days
27 999-0311 Washer #10 external star lock zinc plated $0.99 3 ships same day
28 273-5562 Gasket $37.62 1 usually ships 7-19 days
29 173-2704 Nipple bracket (OBSOLETE) $25.30 1 usually ships 1-5 days
30a 273-5563 Solution tank (gray) $135.30 1 usually ships 1-5 days
30b 273-5563 Solution tank (gray) $135.30 1 usually ships 1-5 days
31 173-0311 Latch $50.71 2 usually ships 7-19 days
32 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated $0.99 4 ships same day
33 273-5564 Ground wire gasket $31.13 1 usually ships 7-19 days
34 173-2702 Nipple $64.90 1 usually ships 7-19 days
35 273-5565 Adaptor 1/8 x 1/4 inch brass $8.20 1 usually ships 7-19 days
36 991-8149 1/8 inch male quick disconnect $5.93 1 ships same day
37 273-5566 Hosebarb 1/4 x 3/8 inch $5.94 1 usually ships 1-5 days
38 173-4943 Elbow 1/4 x 1/4 $15.51 1 usually ships 1-5 days
39 173-4697 Screw M4-.8 x 10mm hex head thread forming $2.00 1 ships same day
40 173-2715 Bulkhead union $72.60 1 usually ships 7-19 days
41 173-2581 Washer flat $1.03 2 usually ships 7-19 days
42 173-2716 O-ring $1.76 1 usually ships 7-19 days
43 173-0099 Mesh strainer $24.42 1 usually ships 7-19 days
44 273-5567 Single braided hose 3/8 x 5 inch rubber $9.96 1 usually ships 7-19 days
45 173-1821 Hose clamp $6.39 2 ships same day
46 273-5568 Warning label $12.32 1 usually ships 1-5 days
47 273-5569 Latch keeper $5.15 2 usually ships 7-19 days
48 173-2038 14 inch wire (green) $0.99 1 usually ships 1-5 days
