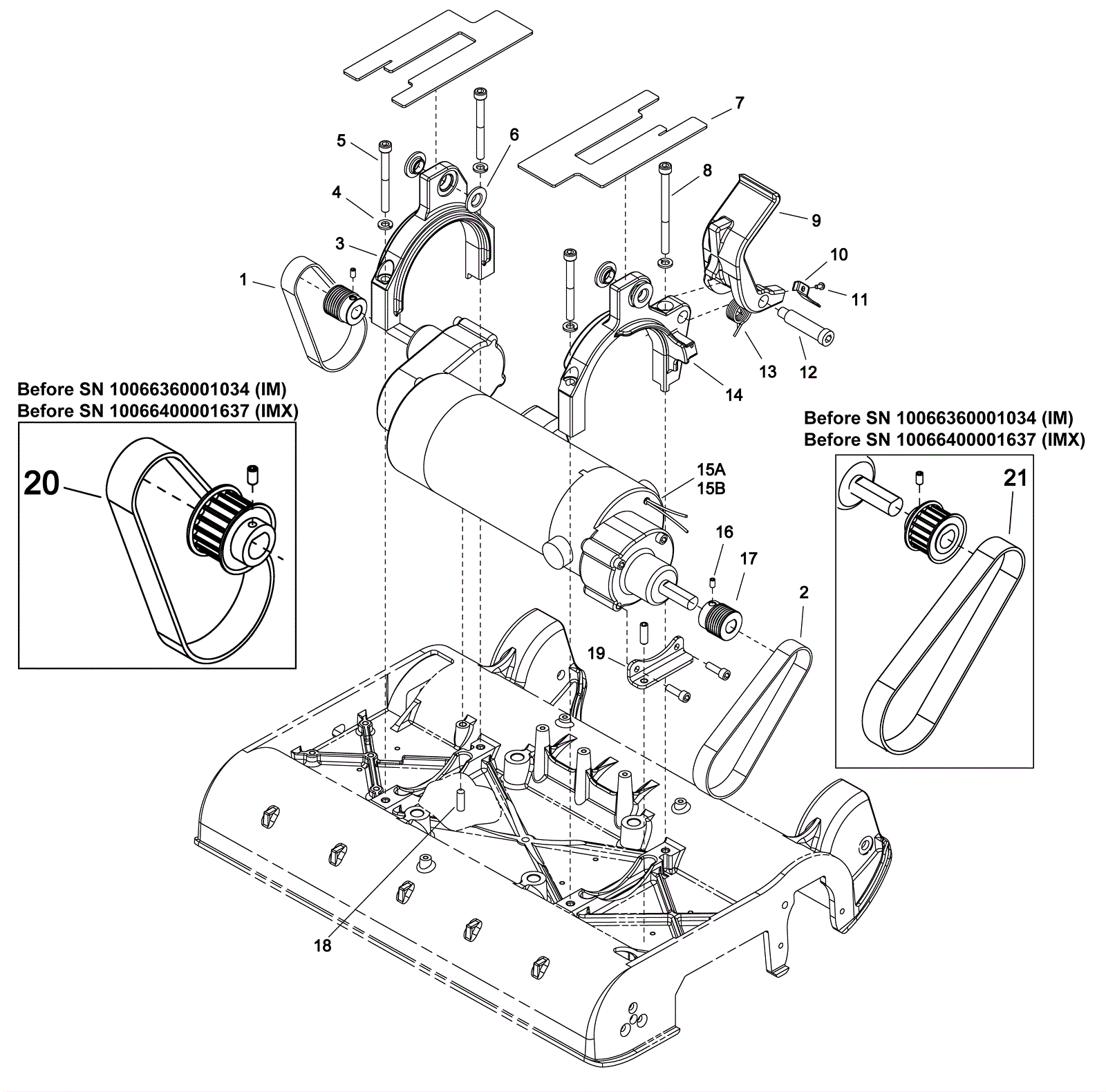

ICAPSOL MINI Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-7178 Right side flex v-belt $81.96 1 (after SN 10066360001033 model IM and SN 10066400001637 model IMX) usually ships 7-19 days
2 273-7179 Left side flex v-belt $87.46 1 (after SN 10066360001033model IM and SN 10066400001637 model IMX) usually ships 7-19 days
3 273-5505 Right side motor mount bracket $93.50 1 usually ships 1-5 days
4 273-5506 Washer 6mm spring lock (OBSOLETE) $1.52 4 usually ships 7-19 days
5 273-5507 Screw M6 x 60mm socket head cap $10.56 3 usually ships 1-5 days
6 273-5508 Flanged bearing $18.04 4 usually ships 1-5 days
7 273-5509 Plate $15.73 2 usually ships 7-19 days
8 273-5510 Screw M6 x 80mm socket head cap $6.44 1 usually ships 1-5 days
9 273-5511 Foot pedal release handle $44.33 1 usually ships 1-5 days
10 273-5512 Foot pedal switch bracket $3.70 1 usually ships 7-19 days
11 273-5441 Screw M3 x 6mm button socket head (OBSOELTE) $2.18 1 usually ships 7-19 days
12 273-5478 Screw M10 x M8 x 55mm shoulder $13.53 1 usually ships 1-5 days
13 273-5513 Torsion spring $4.72 1 usually ships 7-19 days
14 273-5514 Left side motor mount bracket $124.30 1 usually ships 1-5 days
15a 273-5515 Brush motor $784.30 1 usually ships 7-19 days
15b 273-5516 Carbon brush (pkg of 2) $19.58 1 usually ships 7-19 days
16 273-5468 Screw M6 x 8mm set $7.26 2 (after SN 10066360001033 model IM and SN 10066400001637 model IMX) usually ships 7-19 days
17 273-7180 27mm pulley $43.67 2 (after SN 10066360001033 model IM and SN 10066400001637 model IMX) usually ships 1-5 days
18 173-5563 Screw M6 x 25mm set nickel plated $34.32 2 (after SN 10066360001033 model IM and SN 10066400001637 model IMX) usually ships 1-5 days
19 273-7181 Motor adjustment bracket $5.50 1 usually ships 1-5 days
20 273-5503 Right side belt $31.90 1 (before SN 10066360001034 model IM and SN 10066400001637 model IMX) usually ships 7-19 days
21 273-5504 Left side belt $32.23 1 (before SN 10066360001034 model IM and SN 10066400001637 model IMX) usually ships 7-19 days
