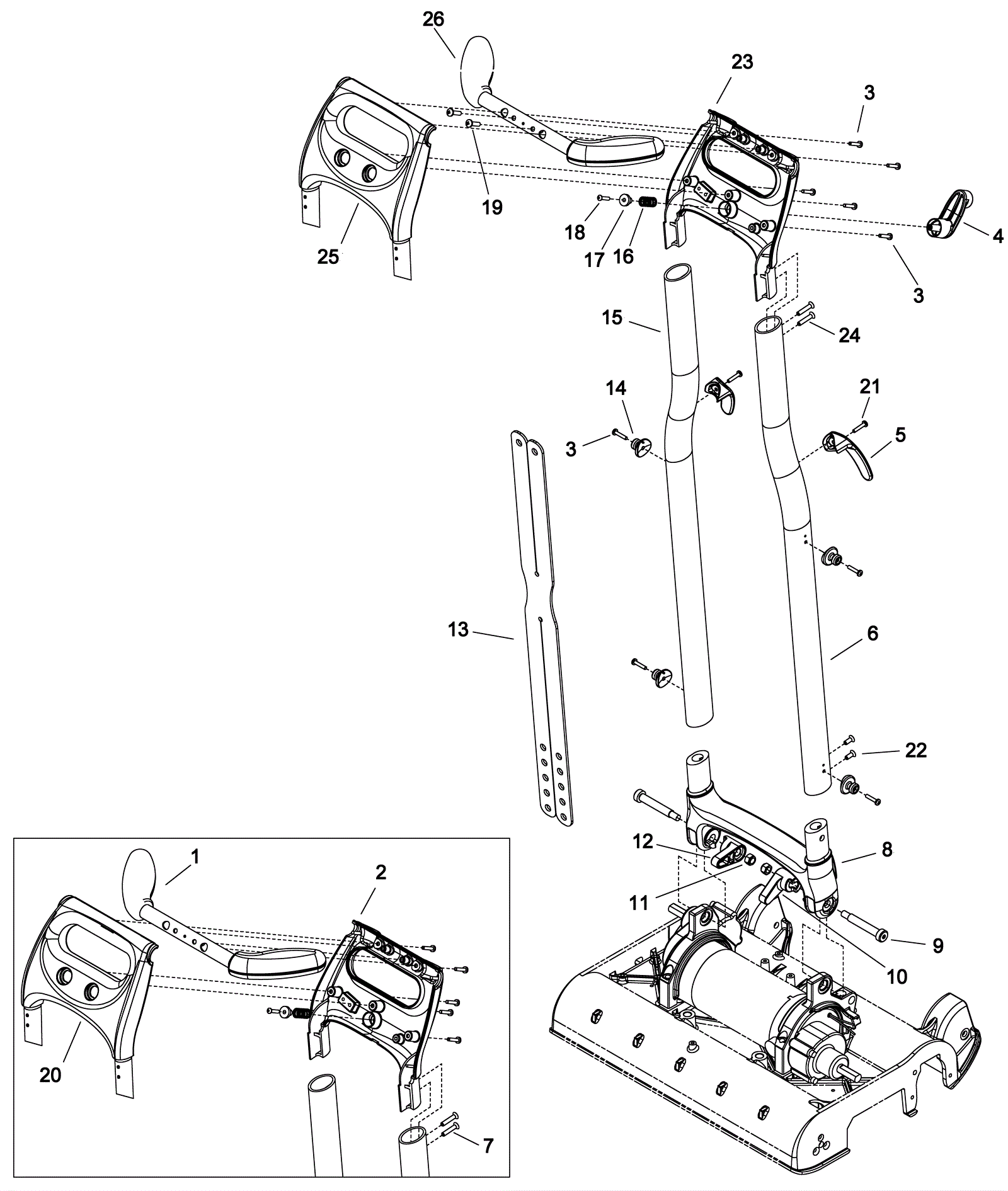

ICAPSOL MINI Handle Assembly

#PartDescription ReqNotesAvailability
1 273-5469 Handle grip (OBSOLETE) 1 (after SN 10066360001033) usually ships 14-20 days
2 273-5470 Rear console (OBSOLETE) 1 (after SN 10066360001033) usually ships 1-5 days
3 273-5446 Screw M4 x 20mm pan head phillips 9 usually ships 14-20 days
4 273-5471 Upper cord hook 1 usually ships 14-20 days
5 273-5472 Lower cord hook 2 usually ships 14-20 days
6a 273-5473 Left side extrusion handle 1 (Deluxe) usually ships 1-5 days
6b 273-5474 Left side extrusion handle 1 (Standard) usually ships 1-5 days
7 273-5475 Screw M5 x 12mm oval head countersunk stainless steel 4 (after SN 10066360001033) usually ships 1-5 days
8a 273-5476 Pivot casting 1 (Deluxe) usually ships 1-5 days
8b 273-8791 Karcher pivot casting 1 (Standard) usually ships 14-20 days
9 273-5478 Screw M10 x M8 x 55mm shoulder 2 usually ships 1-5 days
10 273-5479 Left hand lifting cam 1 usually ships 1-5 days
11 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2 usually ships 11-14 days
12 273-5481 Right hand lifting cam 1 usually ships 1-5 days
13 273-5482 Hold down sprayer strap 1 usually ships 14-20 days
14 273-5483 Rubber strap hook 4 usually ships 1-5 days
15a 273-5484 Right side extrusion handle 1 (Deluxe) usually ships 1-5 days
15b 273-5485 Right side extrusion handle 1 (Standard) usually ships 1-5 days
16 273-5486 Compression spring 1 usually ships 1-5 days
17 273-5487 Spring retainer 1 usually ships 1-5 days
18 273-5488 Screw 40 x 35 oval head 1 usually ships 1-5 days
19 273-5489 Screw M5 x 20mm pan head phillips stainless steel 2 usually ships 1-5 days
20 273-5490 Top console 1 (after SN 10066360001033) usually ships 1-5 days
21 173-8687 Screw M4 x 14mm pan head phillips 2 usually ships 14-20 days
22 273-5491 Screw M5 x 12mm with locking 4 (Deluxe) usually ships 1-5 days
23a 273-8792 Karcher bottom console 1 (Deluxe) (after SN 10066360001034 for IM model and 10066400001637 for IMX model) usually ships 14-20 days
23b 273-8793 ICAPSOL bottom console 1 (Standard) (before SN 10066360001034 IM model and 10066400001637 IMX model) usually ships 14-20 days
24a 273-5493 Screw M5 x 30mm countersunk oval head 4 (Deluxe) (after SN 10066360001034 for IM model and 10066400001637 for IMX model) usually ships 14-20 days
24b 273-5475 Screw M5 x 12mm oval head countersunk stainless steel 4 (Standard) (before SN 10066360001034 IM model and 10066400001637 IMX model) usually ships 1-5 days
25a 273-8788 ICAPSOL top console (black) 1 (Deluxe) (after SN 10066360001034 for IM model and 10066400001637 for IMX model) usually ships 14-20 days
25b 273-5490 Top console 1 (Standard) (before SN 10066360001034 IM model and 10066400001637 IMX model) usually ships 1-5 days
26a 273-5497 Handle grip 1 (Deluxe) (after SN 10066360001034 for IM model and 10066400001637 for IMX model) usually ships 14-20 days
26b 273-5469 Handle grip (OBSOLETE) 1 (Standard) (before SN 10066360001034 IM model and 10066400001637 IMX model) usually ships 14-20 days
