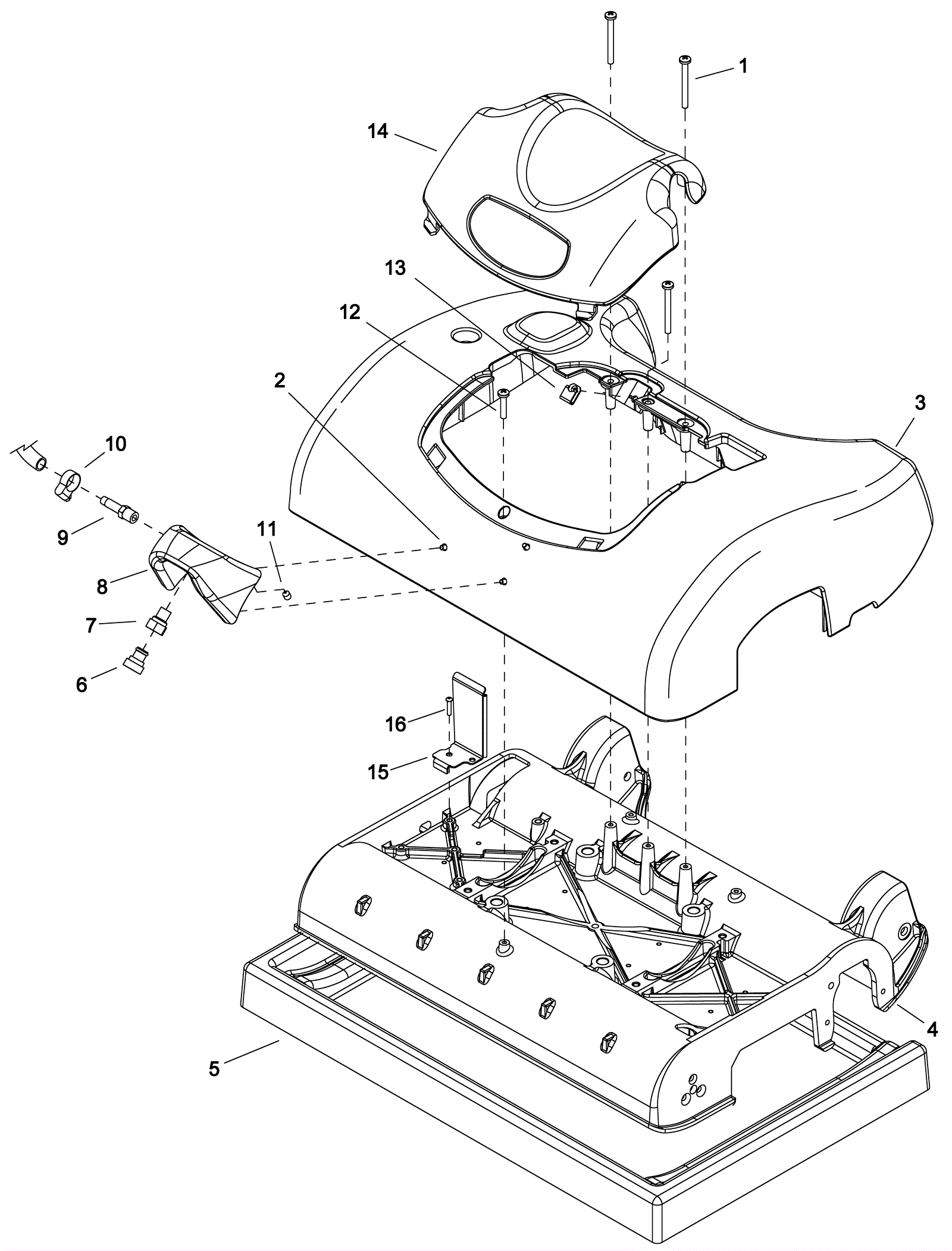

ICAPSOL MINI Frame Assembly - Deluxe

#PartDescriptionPriceReqNotesAvailability
1 999-9169 Screw M4-0.7 x 40mm pan head ss $0.99 3 usually ships 12-18 days
2 273-5499 Screw M4 x 10mm button head socket cap $2.83 3 usually ships 14-22 days
3 173-5425 Cover $326.03 1 usually ships 1-5 days
4 273-5464 Single motor frame $367.22 1 usually ships 14-22 days
5 273-5463 iCapsol mini tray $173.02 1 usually ships 14-22 days
6 173-8641 Promax jet 11001 $23.07 1 ships same day
7 173-2210 Jet body $9.24 1 ships same day
8 173-8642 Sprayer manifold $42.72 1 usually ships 14-22 days
9 173-4999 Hose barb 1/8 x 1/4 $7.01 1 usually ships 14-22 days
10 173-2741 Hose clamp $2.76 1 usually ships 14-22 days
11 273-5468 Screw M6 x 8mm set $7.77 1 usually ships 14-22 days
12 273-5446 Screw M4 x 20mm pan head phillips $2.68 1 usually ships 14-22 days
13 273-5465 Nut M4 x .7 x 3mm u-clamp $1.98 1 usually ships 1-5 days
14 273-5466 Dome assembly $168.31 1 usually ships 14-22 days
15 273-7177 Splash guard plate $5.76 1 (after SN 10066360001034 for model IM) (after SN 1006640001637 for model IMX) usually ships 1-5 days
16 273-5452 Screw M5 x 10mm button socket head $5.50 1 (after SN 10066360001034 for model IM) (after SN 1006640001637 for model IMX) usually ships 1-5 days
