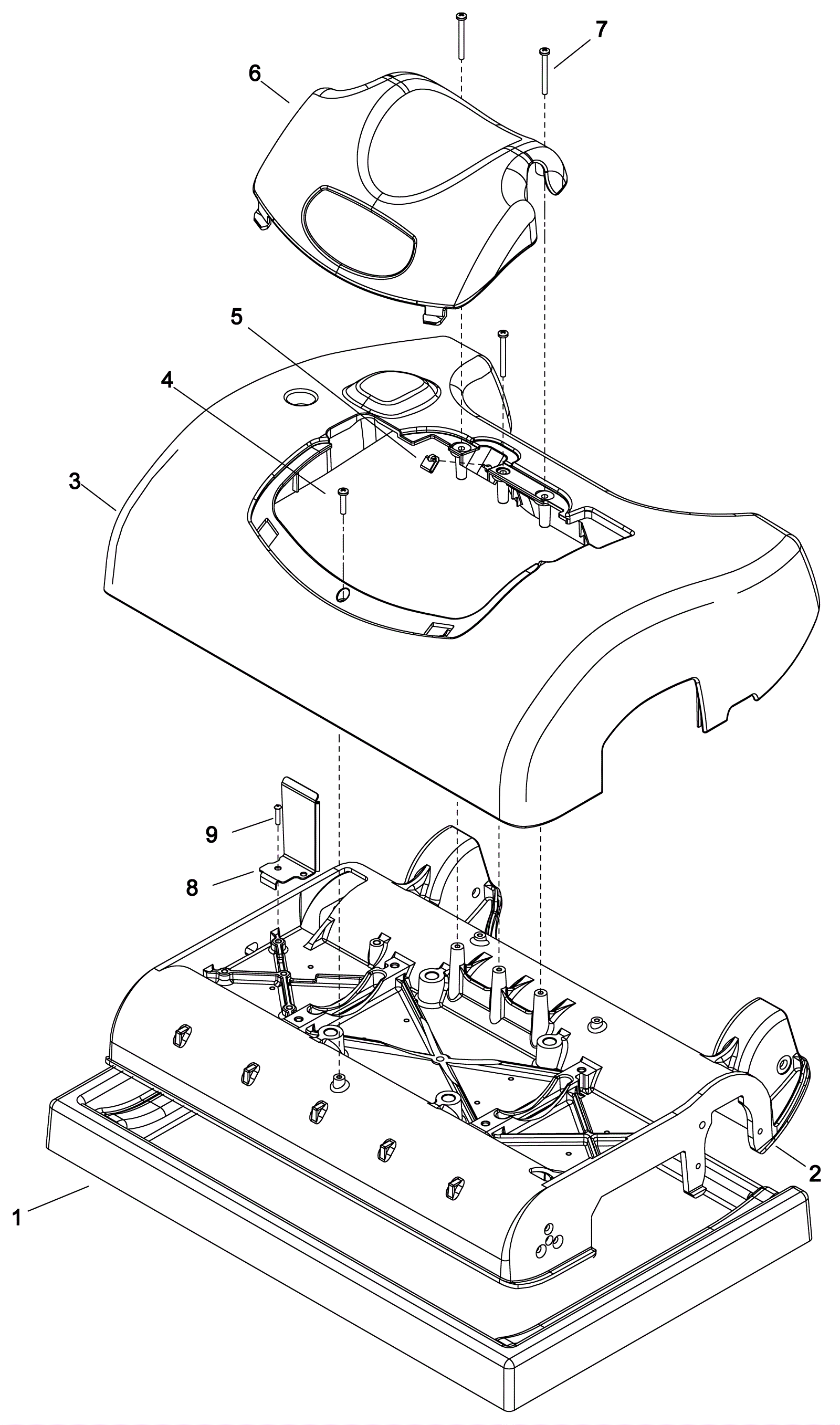

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
273-5463
|
iCapsol mini tray |
1 |
|
|
2 |
273-5464
|
Single motor frame |
1 |
|
|
3 |
273-0920
|
Cover |
1 |
|
|
4 |
273-5446
|
Screw M4 x 20mm pan head phillips |
1 |
|
|
5 |
273-5465
|
Nut M4 x .7 x 3mm u-clamp |
1 |
|
|
6 |
273-5466
|
Dome assembly |
1 |
|
|
7 |
999-9169
|
Screw M4-0.7 x 40mm pan head ss |
3 |
|
|
8 |
273-7177
|
Splash guard plate (OBSOLETE) |
1 |
(after SN 10066360001033 for model IM)
(after SN 1006640001637 for model IMX) |
|
9 |
273-5452
|
Screw M5 x 10mm button socket head |
1 |
(after SN 10066360001033 for model IM)
(after SN 1006640001637 for model IMX) |
|
