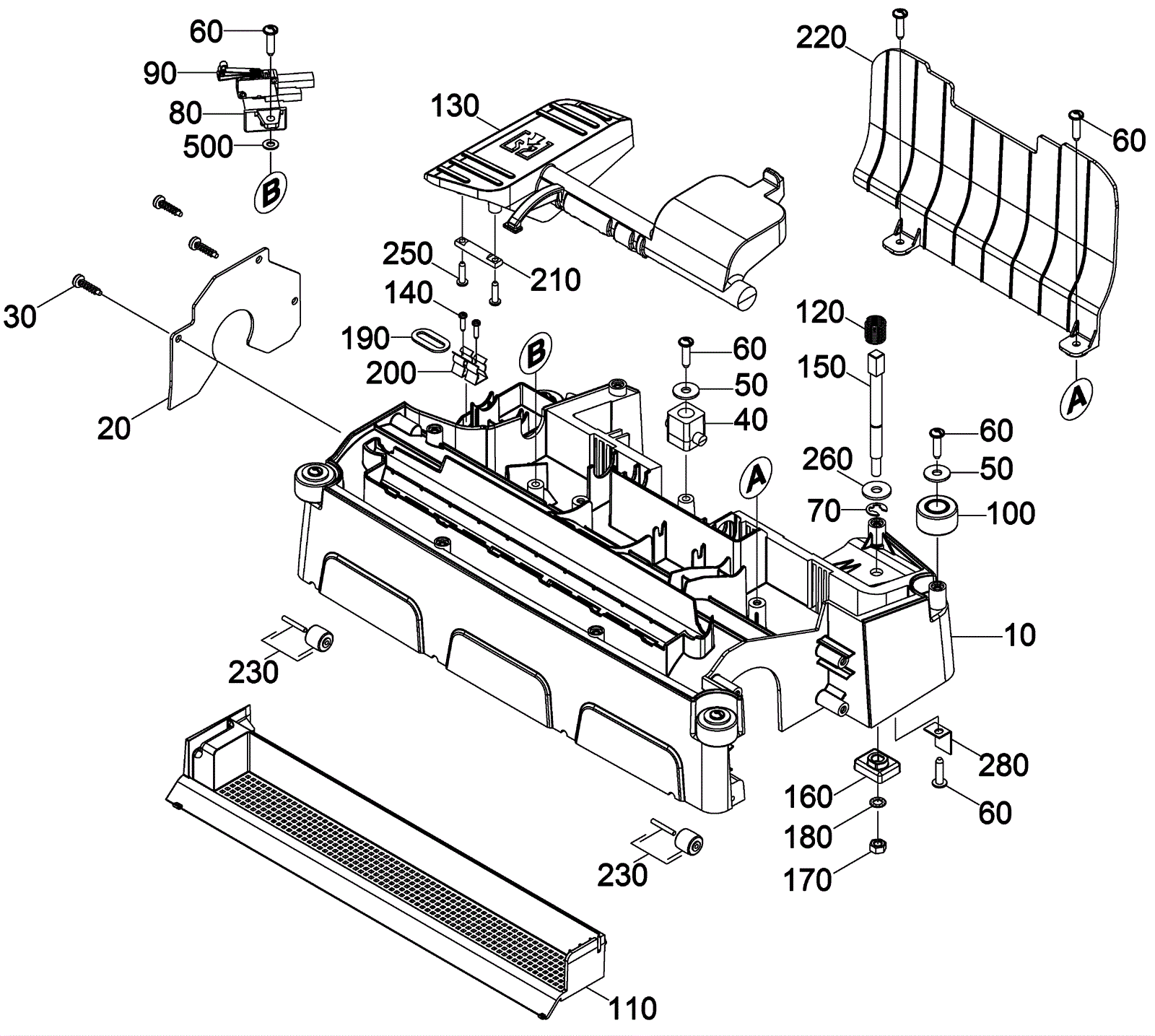

BR 35/12 Brush Housing Assembly

#PartDescriptionPriceReqNotesAvailability
10 273-9049 Brush housing $149.60 1 usually ships 14-22 days
20 273-8465 Brush plate $100.65 1 usually ships 14-22 days
30 173-6139 Screw 5 x 20 $3.70 4 usually ships 14-22 days
40 273-8464 Swivel joint $15.62 1 usually ships 14-22 days
50 173-5899 Washer $0.99 2 usually ships 14-22 days
60 173-6202 Screw M5 x 20mm $1.03 6 ships same day
70 173-6209 Lock washer $1.94 1 usually ships 14-22 days
80 173-6270 Micro switch retainer $8.64 1 usually ships 14-22 days
90 173-6268 Micro switch $41.47 1 usually ships 1-5 days
100 273-8463 Deflector $7.32 4 usually ships 14-22 days
110 273-8449 Debris drawer $27.06 1 ships same day
120 173-6261 Helical spring $2.85 1 usually ships 14-22 days
130 273-9050 Suction bar retaining bracket $125.40 1 usually ships 14-22 days
140 273-9982 Screw 3 x 12 $3.39 2 usually ships 14-22 days
150 273-8487 Pin $119.90 1 usually ships 14-22 days
160 273-9051 Height adjustment $9.90 1 usually ships 14-22 days
170 183-0262 Hex nut $1.54 1 usually ships 1-5 days
180 173-6298 Serrated lock washer $0.99 1 usually ships 1-5 days
190 273-9052 Plate $32.34 1 usually ships 14-22 days
200 173-6252 Spring clip $15.73 2 usually ships 1-5 days
210 273-9053 Pedal fixing axle $20.02 1 usually ships 14-22 days
220 273-8460 Plate $38.39 1 usually ships 14-22 days
230 183-8106 Roller assembly $18.48 1 ships same day
250 173-4378 Screw $0.99 2 usually ships 14-22 days
260 999-9097 Washer M8 flat stainless steel $0.99 1 ships same day
280 273-8458 Plate $10.45 2 usually ships 14-22 days
500 273-8124 Washer $0.99 1 usually ships 14-22 days
