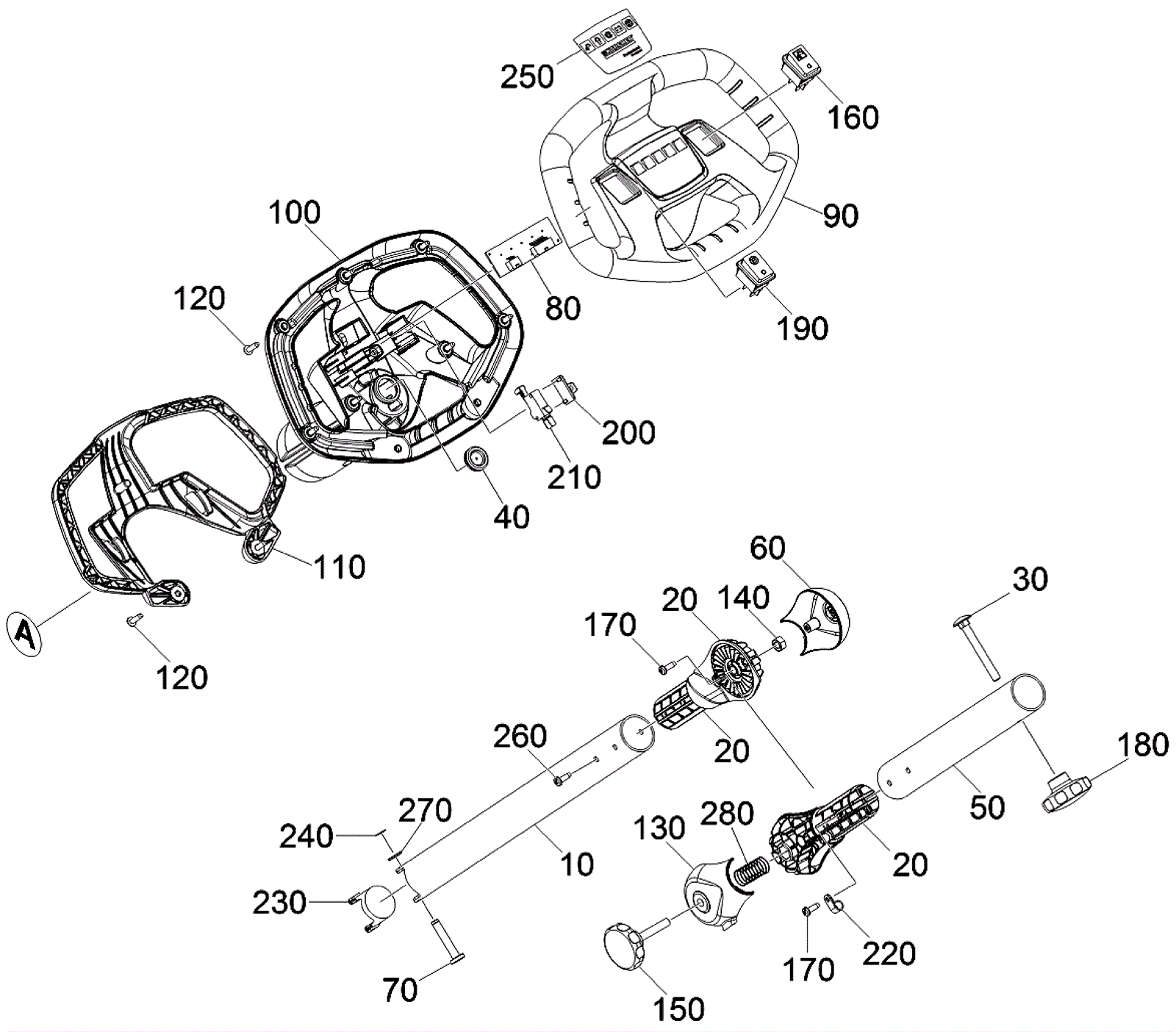

BR 35/12 Steering Pillar Assembly

#PartDescriptionPriceReqNotesAvailability
10 273-9027 Bottom steering pillar $277.00 1 usually ships 7-19 days
20 273-9028 Joint steering pillar $104.00 2 usually ships 7-19 days
30 273-9029 Screw M8 x 70 saucer head $4.84 1 usually ships 7-19 days
40 273-9030 Profile gasket $5.00 1 usually ships 7-19 days
50 273-9031 Top steering pillar $199.00 1 usually ships 7-19 days
60 273-9032 Joint cover cap $14.10 1 usually ships 7-19 days
70 273-8523 Bolt $104.00 1 usually ships 7-19 days
80 273-9033 Diode board $112.00 1 usually ships 7-19 days
90 273-9034 Top steering wheel $54.50 1 usually ships 7-19 days
100 273-9035 Bottom steering wheel $82.00 1 usually ships 7-19 days
110 273-9036 Retaining bracket switch $59.00 1 usually ships 7-19 days
120 173-6202 Screw M5 x 20mm $0.94 11 usually ships 7-19 days
130 273-9037 Joint cable gland cap $14.10 1 usually ships 7-19 days
140 999-1651 Nut M8-1 hex stainless steel $2.83 1 ships same day
150 273-7146 Star grip $14.70 1 usually ships 7-19 days
160 273-8526 Switch $38.50 1 usually ships 7-19 days
170 183-0075 Screw 5-16 x 10.9mm $0.90 4 usually ships 8-21 days
180 273-6004 Knob $21.00 1 usually ships 7-19 days
190 273-9038 Eco switch $101.00 1 usually ships 7-19 days
200 173-6270 Micro switch retainer $7.85 1 usually ships 7-19 days
210 273-9039 Switch $71.50 1 usually ships 7-19 days
220 273-9040 Pipe clamp $4.60 1 usually ships 7-19 days
230 273-9041 Joint steering pillar $14.10 1 usually ships 7-19 days
240 183-4102 Spring clip $1.23 1 usually ships 1-5 days
250 273-9042 Foil control panel $22.00 1 usually ships 7-19 days
260 273-9043 Screw M5 x 16 countersunk $0.90 9 usually ships 7-19 days
270 999-9097 Washer M8 flat stainless steel $0.99 1 ships same day
280 273-8522 Spring $3.36 1 usually ships 7-19 days
