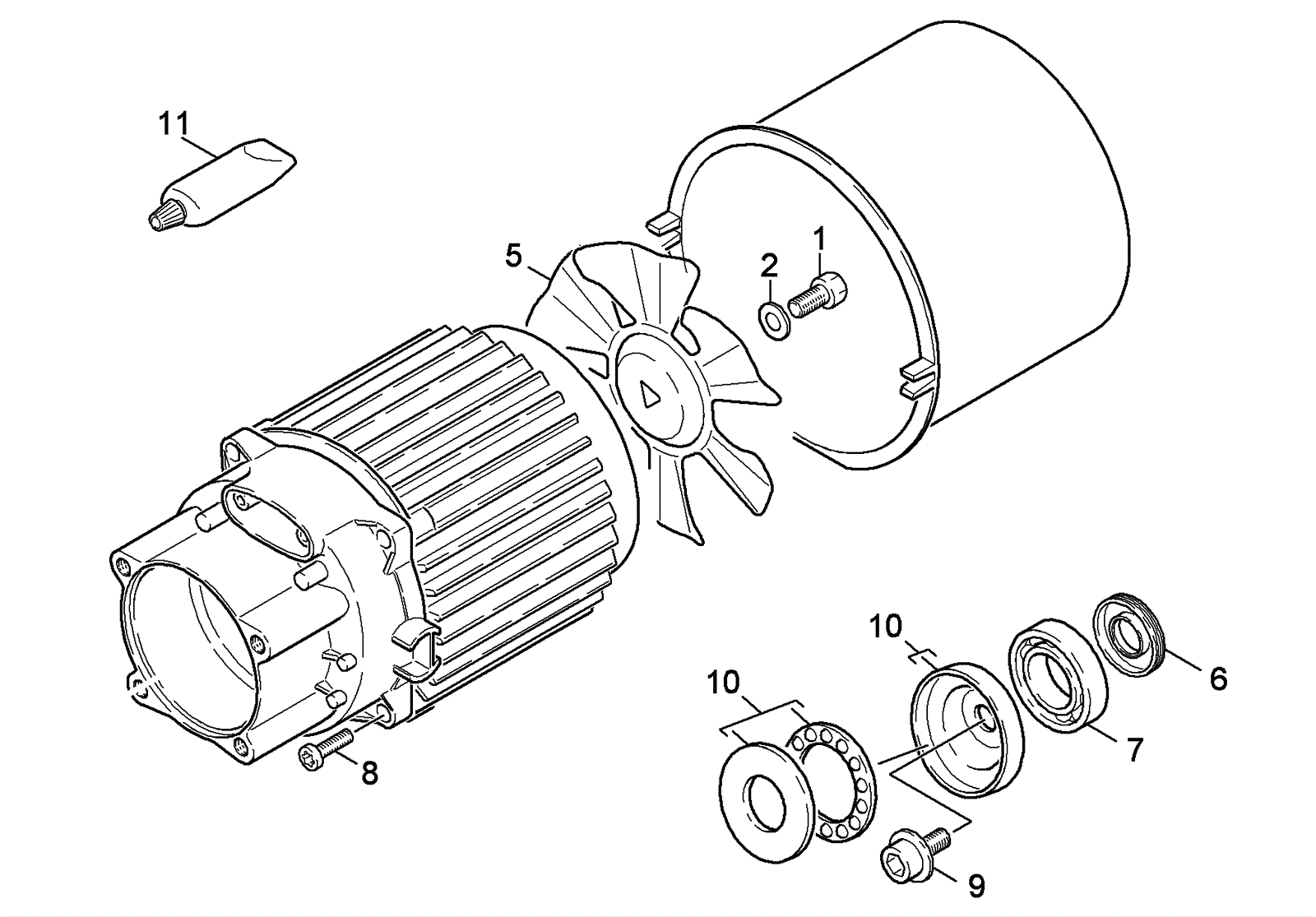

HDR 2012 Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-8159 Screw M8 x 16 hex head $0.99 1 usually ships 7-19 days
2 173-6265 Serrated lock washer $1.21 1 usually ships 1-5 days
5 173-7676 Blower wheel $9.49 1 usually ships 7-19 days
6 173-7677 Sealing ring $13.86 1 usually ships 7-19 days
7 173-7678 Ball bearing $5.49 1 usually ships 7-19 days
8 173-7679 Screw M5 x 20mm st r2r $2.37 4 usually ships 7-19 days
9 173-7680 Screw M8 x 16mm $1.10 1 usually ships 7-19 days
10 173-7681 Wobble plate $68.75 1 usually ships 7-19 days
11 173-7682 50ml viscous oil $21.12 1 usually ships 7-19 days
