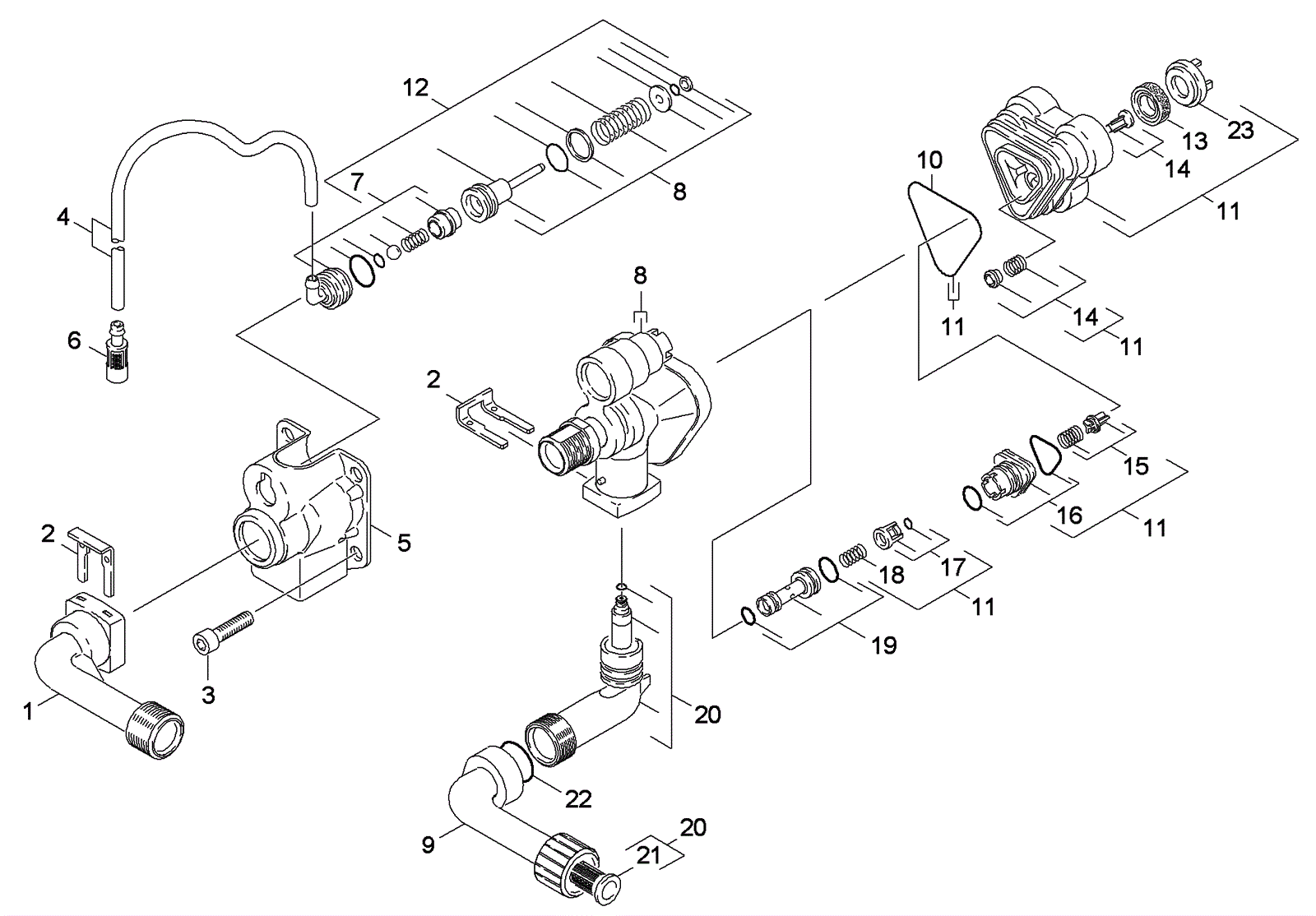

HDR 2012 Valve and Filter Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-7652 Delivery side connection $10.64 1 usually ships 7-19 days
2 173-7653 Metal fork $2.15 2 usually ships 7-19 days
3 173-7654 Screw M8 x 55mm class 8.8 $1.50 4 usually ships 7-19 days
4 173-6219 Hose (sold by the foot) $6.60 1 usually ships 12-29 days
5 173-7655 Cover $33.07 1 usually ships 7-19 days
7 173-7656 Cleaning agents aspiration $8.31 1 usually ships 7-19 days
8 173-7657 Control head spare parts set $65.33 1 usually ships 7-19 days
9 173-7658 Suction side connection $30.88 1 usually ships 7-19 days
10 173-7659 Foam seal $1.41 1 usually ships 7-19 days
11 173-7660 Cylinder head assembly $40.48 1 (includes 13-18, and 23) usually ships 7-19 days
12 173-7661 Pressure piston and detergent nipple $32.34 1 (includes 7-8) usually ships 7-19 days
13 273-3272 Grooved ring $4.74 3 usually ships 7-19 days
14 173-7662 Moulded part assembly $11.87 1 usually ships 7-19 days
15 173-7663 Valve spare part set $8.31 1 usually ships 7-19 days
16 173-7664 Joining piece $11.87 1 usually ships 7-19 days
17 173-7665 Cage assembly $7.12 1 usually ships 7-19 days
18 173-7666 Spring $2.35 1 usually ships 7-19 days
19 173-7667 Injector assembly $17.81 1 usually ships 7-19 days
20 173-7668 Connection spare part set $21.37 1 (includes 21) usually ships 7-19 days
21 173-7669 Long line filter $7.12 1 usually ships 7-19 days
22 173-7671 O ring $1.40 1 usually ships 7-19 days
