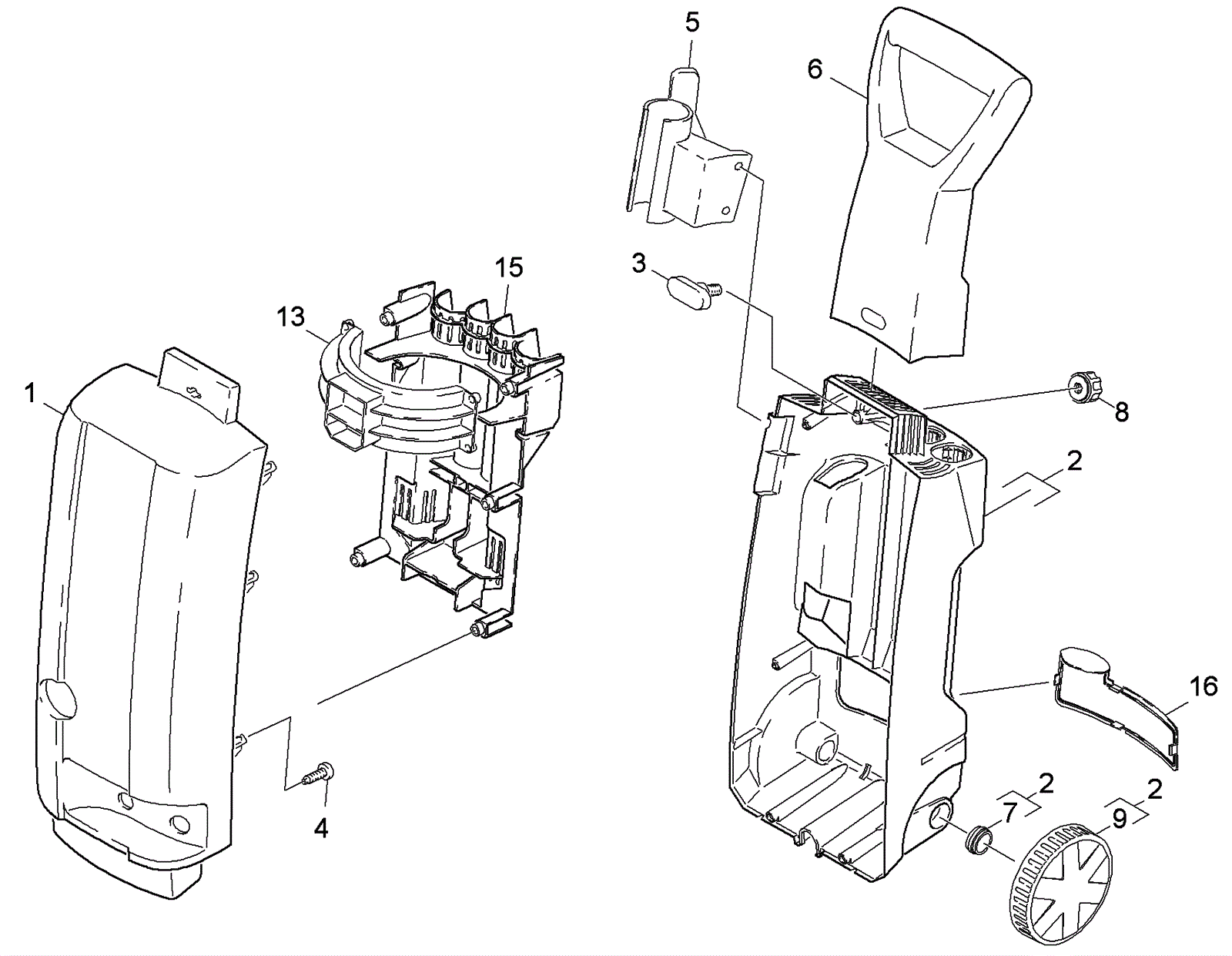

Housing Assembly

#PartDescription ReqNotesAvailability
1 173-7640 Workzone cover 1
2 173-7641 Chassis assembly 1
3 173-7642 Handle screw 1
4 173-7643 Screw 4.1 x 22mm ATF 8
5 173-7644 Accessories holder 1
6 173-7645 Hand grip 1
7 173-7646 Plug 2
8 173-7647 Turning knob 1
9 173-7648 Wheel set 2
13 173-7649 Flange bracket 1
15 173-7650 Moulded part 1
16 173-7651 Chemical tank cover 1
