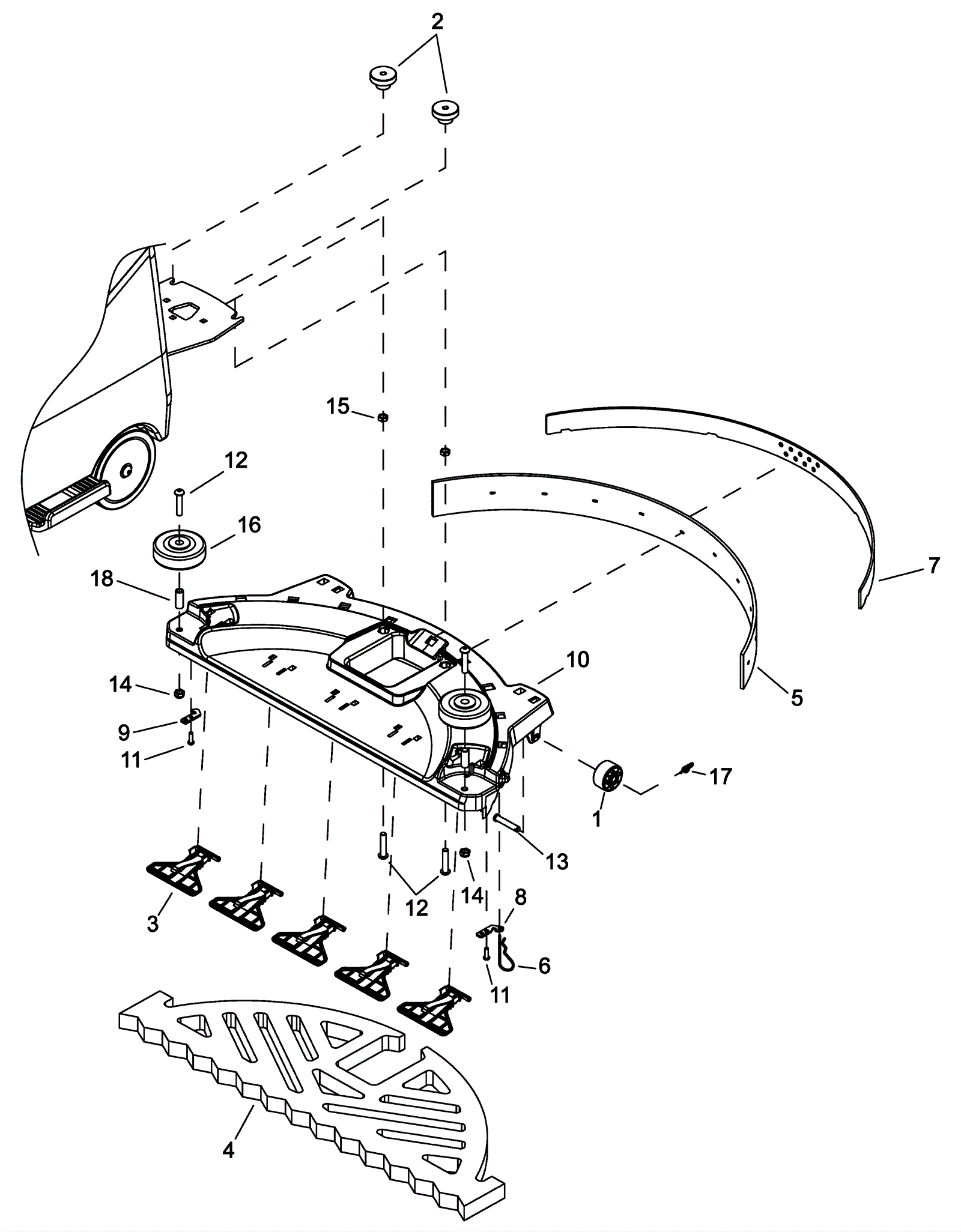

B 60/10 ECO Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-4454 Wheel $15.18 2 usually ships 11-16 days
2 173-3184 Knob $51.67 2 ships same day
3 173-4455 Flipper assembly $31.66 5 usually ships 11-16 days
4 273-3575 Scrub pad $77.10 1 usually ships 11-16 days
5 173-4456 Squeegee blade 31 13/32 inches $104.17 1 usually ships 11-16 days
6 173-4458 Hitch pin 3/32 x 2 5/16 stainless steel $9.82 1 usually ships 11-16 days
7 173-4459 Strap latch $35.19 1 usually ships 11-16 days
8 173-4460 Squeegee retainer plate $3.41 1 usually ships 11-16 days
9 173-4461 Squeegee hook plate $5.50 1 usually ships 11-16 days
10 173-4462 Squeegee deck $145.95 1 usually ships 11-16 days
11 183-0281 Screw $1.54 2 usually ships 15-28 days
12 273-0022 Screw 5/16-8 x 1 3/4 hex cap stainless steel $9.89 4 usually ships 11-16 days
13 173-1481 Clevis pin $5.50 2 usually ships 1-5 days
14 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
15 999-1019 Nut 5/16-18 hex jam stainless steel $0.99 2 ships same day
16 173-1630 3 inch rubber wheel $5.89 2 ships same day
17 173-1480 Cotter ring $2.46 2 ships same day
18 173-1634 Bushing $12.36 2 usually ships 11-16 days
N/S 173-4457 Squeegee blade 31 1/8 inch urethane $123.59 1 (optional) usually ships 11-16 days
