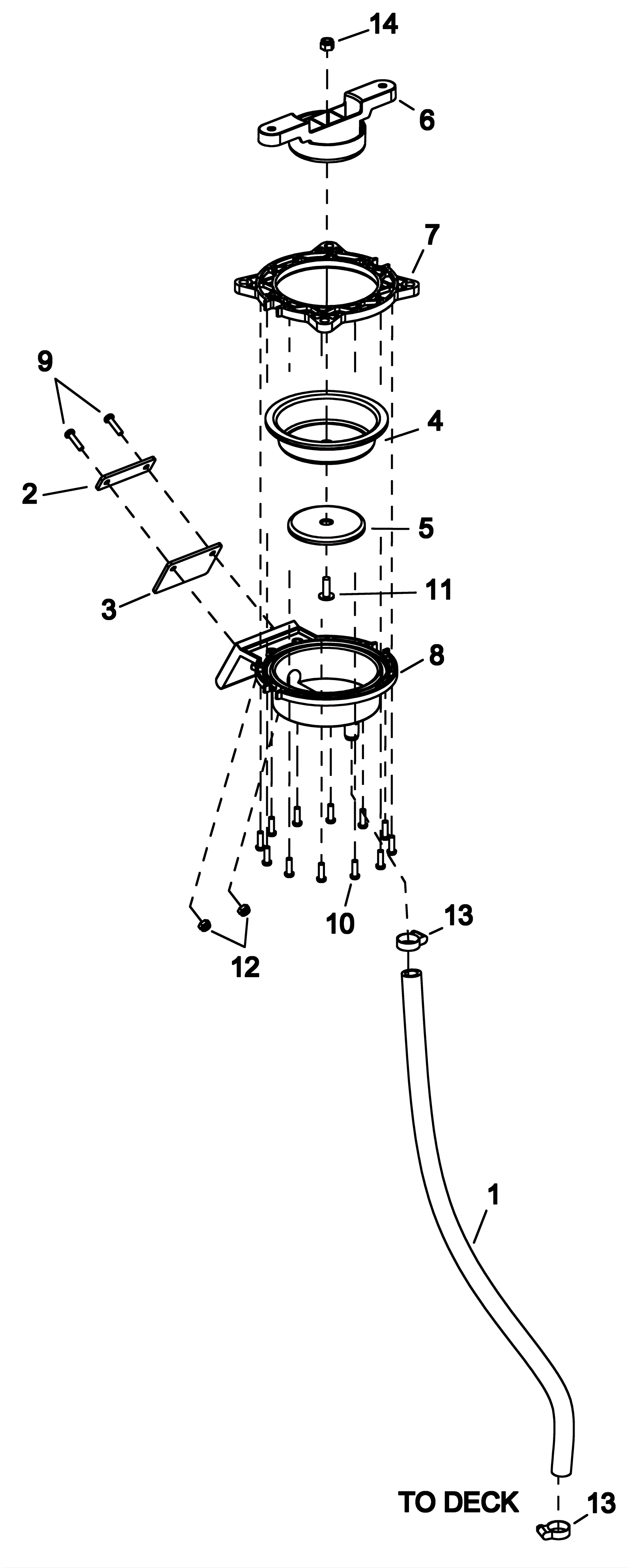

CRICKET AUTOMOP Recovery Pump Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-4466 Wirebound hose 1/2 x 29 inch $2.90 1 usually ships 7-19 days
2 173-4467 4 inch check valve sheet $14.30 1 usually ships 7-19 days
3 173-4468 Check valve retainer $6.93 1 usually ships 7-19 days
4 173-4469 4 3/4 inch diaphragm $107.80 1 usually ships 7-19 days
5 173-4470 Lower diaphragm clamp $33.66 1 usually ships 7-19 days
6 173-4471 Upper diaphragm clamp $31.13 1 usually ships 7-19 days
7 173-4472 Clamp ring $33.66 1 usually ships 7-19 days
8 173-4473 Pump housing $47.52 1 usually ships 7-19 days
9 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
10 173-5950 Screw KA50 x 16 oval head phillips SS (OBSOLETE) $2.85 12 usually ships 7-19 days
11 999-9094 Screw 3/8-16 x 3 hex head stainless steel $6.25 1 ships same day
12 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
13 173-1821 Hose clamp $6.39 2 ships same day
14 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
