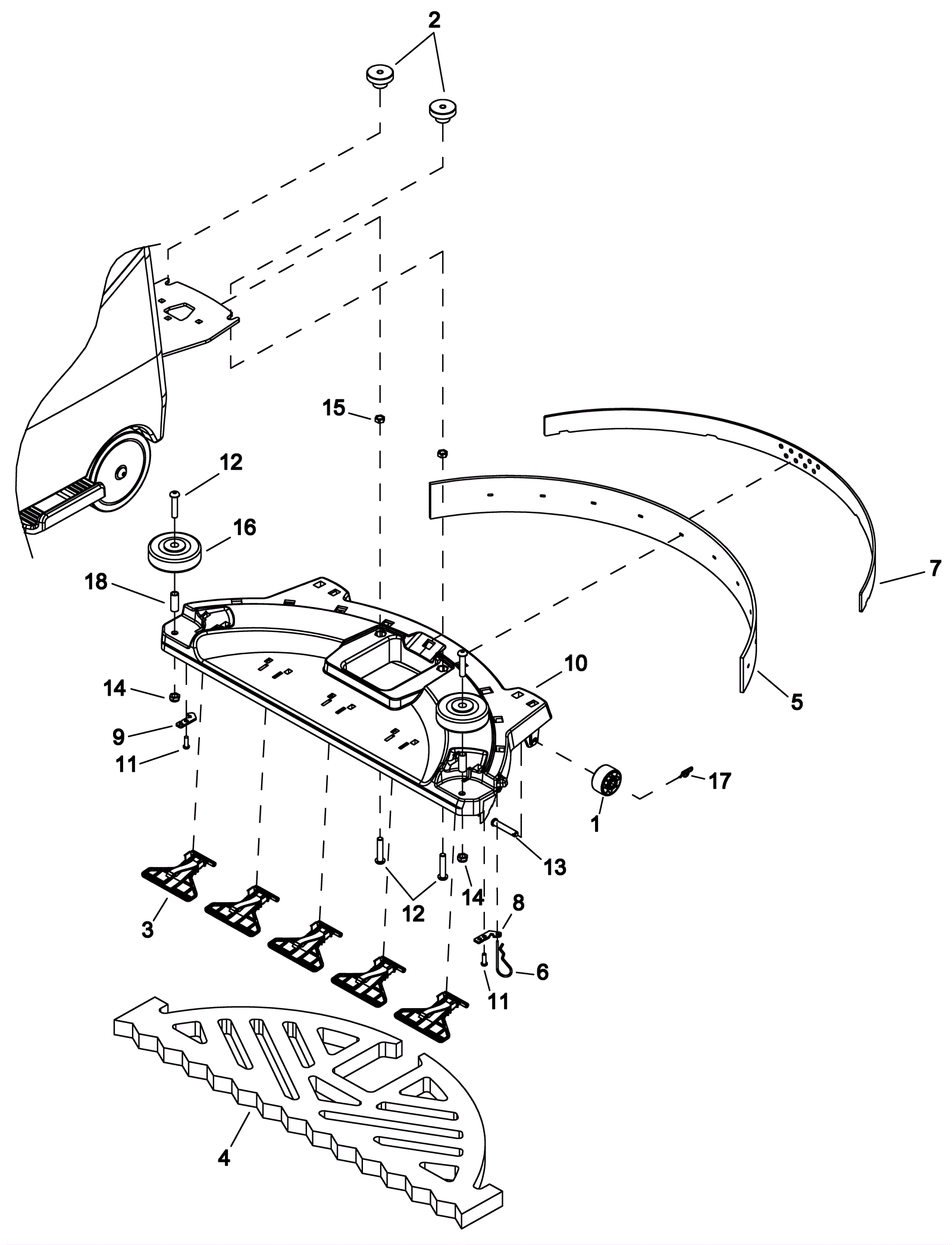

CRICKET AUTOMOP Squeegee Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-4454 Wheel $14.19 2 usually ships 7-19 days
2 173-3184 Knob $48.29 2 ships same day
3 173-4455 Flipper assembly $29.59 5 usually ships 7-19 days
4 273-3575 Scrub pad $72.05 1 usually ships 7-19 days
5a 173-4456 Squeegee blade 31 13/32 inches $97.35 1 usually ships 7-19 days
5b 173-4457 Squeegee blade 31 1/8 inch urethane $115.50 1 (option) usually ships 7-19 days
6 173-4458 Hitch pin 3/32 x 2 5/16 stainless steel $9.19 1 usually ships 7-19 days
7 173-4459 Strap latch $32.89 1 usually ships 7-19 days
8 173-4460 Squeegee retainer plate $3.41 1 usually ships 7-19 days
9 173-4461 Squeegee hook plate $5.50 1 usually ships 7-19 days
10 173-4462 Squeegee deck $136.40 1 usually ships 7-19 days
11 173-5950 Screw KA50 x 16 oval head phillips SS (OBSOLETE) $2.85 2 usually ships 7-19 days
12 273-0022 Screw 5/16-8 x 1 3/4 hex cap stainless steel $9.24 4 usually ships 7-19 days
13 173-1481 Clevis pin $5.20 2 usually ships 1-5 days
14 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
15 999-1019 Nut 5/16-18 hex jam stainless steel $0.99 2 ships same day
16a 173-1630 3 inch rubber wheel $5.50 2 ships same day
17 173-1480 Cotter ring $2.12 2 usually ships 7-19 days
18 173-1634 Bushing $11.55 2 usually ships 7-19 days
