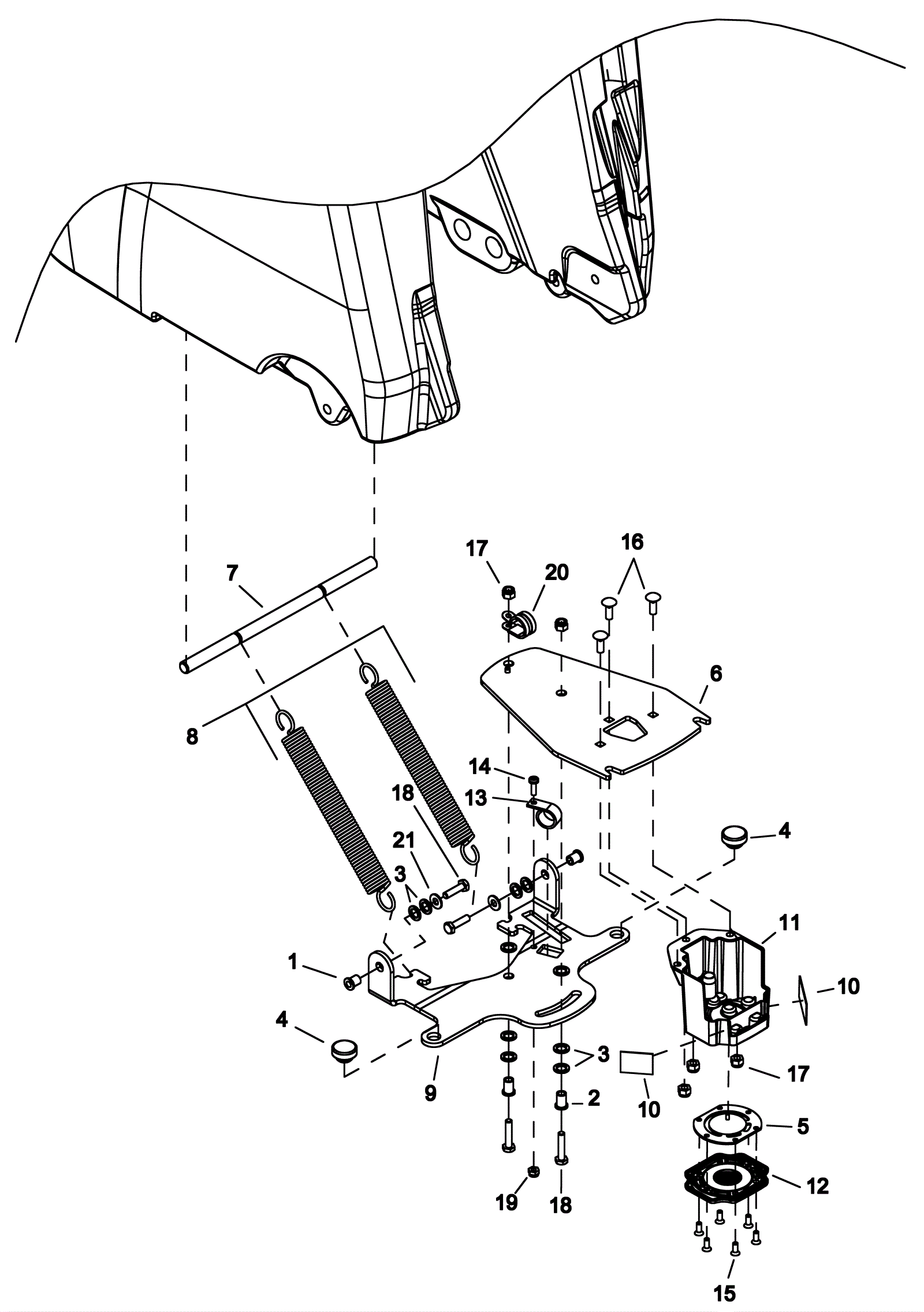

CRICKET AUTOMOP Lift Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-4441 Bushing 1/4 x 3/8 x 1/2 inch $3.30 2 usually ships 7-19 days
2 173-4442 Bushing 1/4 x 3/8 x 5/8 inch $10.18 2 usually ships 7-19 days
3 173-4443 Washer 3/8 inch $3.41 10 usually ships 7-19 days
4 173-4444 1 inch rubber bumper $1.98 2 usually ships 7-19 days
5 173-4445 Check valve $50.05 1 usually ships 7-19 days
6 173-4446 Squeegee link bracket $27.39 1 usually ships 7-19 days
7 173-4447 Spring bar $13.42 1 usually ships 7-19 days
8 173-4448 Extension spring kit $44.33 1 (springs (2)) usually ships 7-19 days
9 173-4449 Squeegee link bracket $45.76 1 usually ships 7-19 days
10 173-4450 Velcro hook $3.30 2 usually ships 7-19 days
11 173-4451 Suction block $58.85 1 usually ships 7-19 days
12 173-4452 Suction grate $8.20 1 usually ships 7-19 days
13 273-6596 P clamp $1.40 1 usually ships 1-5 days
14 999-0713 Screw 10-32 x 5/8 pan head slotted stainless steel $0.99 1 ships same day
15 173-4453 Screw10-32 x 1/2 flat head machine stainless steel $0.99 6 usually ships 7-19 days
16 173-3931 Screw 1/4-20 x 3/4 carriage $0.99 3 usually ships 1-5 days
17 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 5 ships same day
18 999-9072 Bolt 1/4-20 x 1 hex head cap $7.32 4 ships same day
19 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
20 173-1772 P clamp $4.13 1 usually ships 1-5 days
21 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
