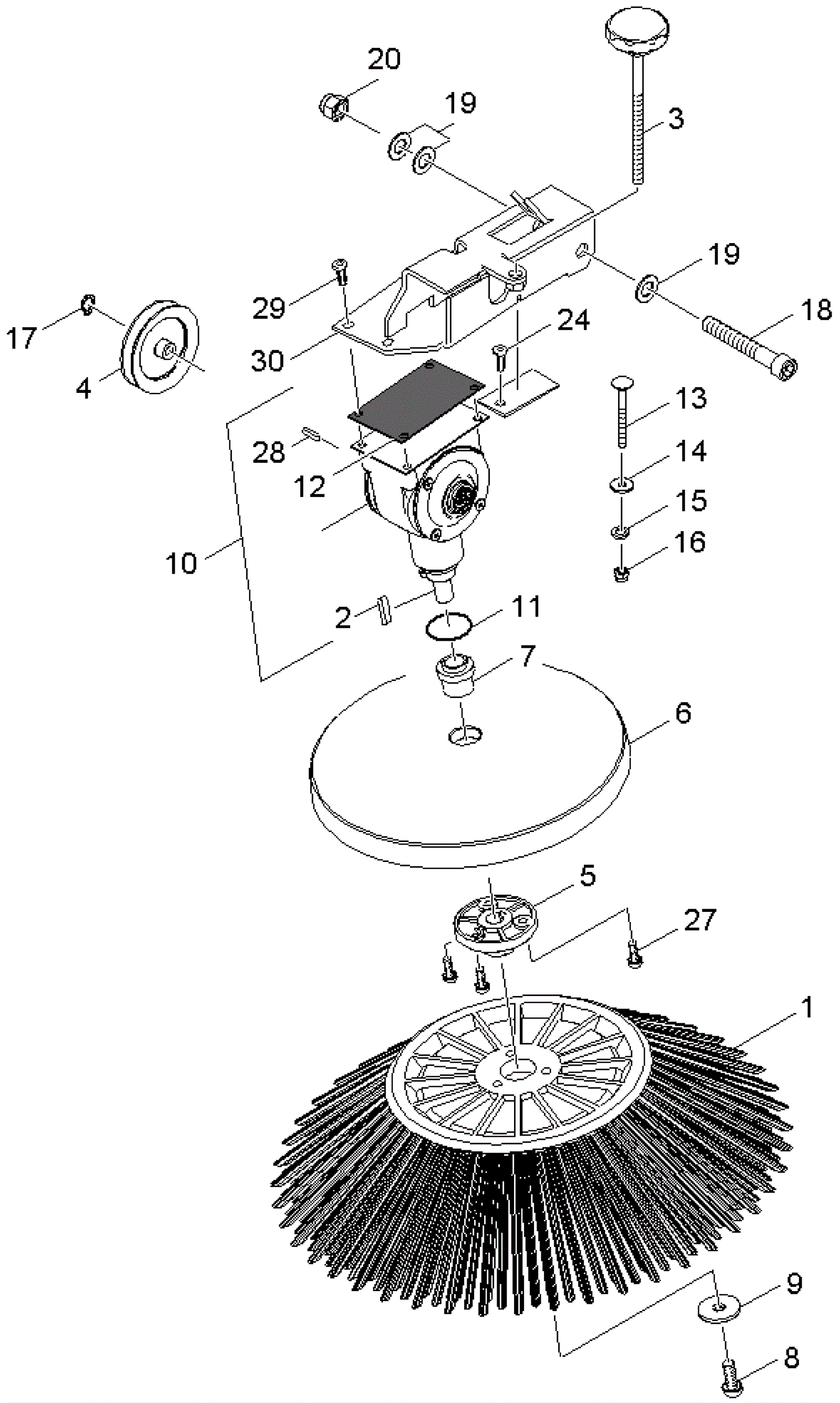

RADIUS 300 Side Broom Assembly

#PartDescriptionPriceReqNotesAvailability
1a 273-1130 Side broom soft $209.51 1 usually ships 11-16 days
1b 273-2973 Side broom hard $209.51 1 usually ships 11-16 days
2 183-4138 Square keyway $2.42 1 usually ships 1-5 days
3 273-7536 Star grip $31.66 1 usually ships 1-5 days
4 273-7537 Round belt pulley $270.71 1 usually ships 1-5 days
5 273-7538 Hub $94.16 1 usually ships 1-5 days
6 273-1129 Rejecting plate $62.98 1 usually ships 1-5 days
7 273-7539 Plate rejecting sleeve $57.32 1 usually ships 1-5 days
8 173-9890 Screw M6 x 20 $2.26 1 usually ships 1-5 days
9 273-7540 Washer 6 $3.25 1 usually ships 11-16 days
10 273-7541 Side brush gear $277.12 1 usually ships 1-5 days
11 173-6283 Joint ring $5.50 2 usually ships 11-16 days
12 273-7501 Seal $22.59 1 usually ships 1-5 days
13 273-7542 Screw M6 x 60 saucer head $4.60 5 usually ships 1-5 days
14 173-6337 Washer $1.41 4 usually ships 11-16 days
15 273-7459 Spring washer $1.41 5 usually ships 1-5 days
16 999-1308 Nut M6-1 hex stainless steel $0.99 5 ships same day
17 183-4102 Spring clip $1.54 1 usually ships 1-5 days
18 273-7543 Screw M12 x 80 cylinder head $5.48 1 usually ships 1-5 days
19 273-7044 Washer $7.66 3 usually ships 1-5 days
20 999-0503 Nut M12-1.75 hex stainless steel $1.91 1 ships same day
24 273-6089 Screw 6-10.9 x 20mm $2.26 1 usually ships 11-16 days
27 273-1131 Screw M6-8.8 x 12mm cylinder head $6.18 3 usually ships 1-5 days
28 273-7544 Square keyway $5.50 1 usually ships 1-5 days
29 273-7502 Screw M5 x 12 $1.91 4 usually ships 1-5 days
30 273-7545 Sheet metal side broom arm $151.83 1 usually ships 1-5 days
