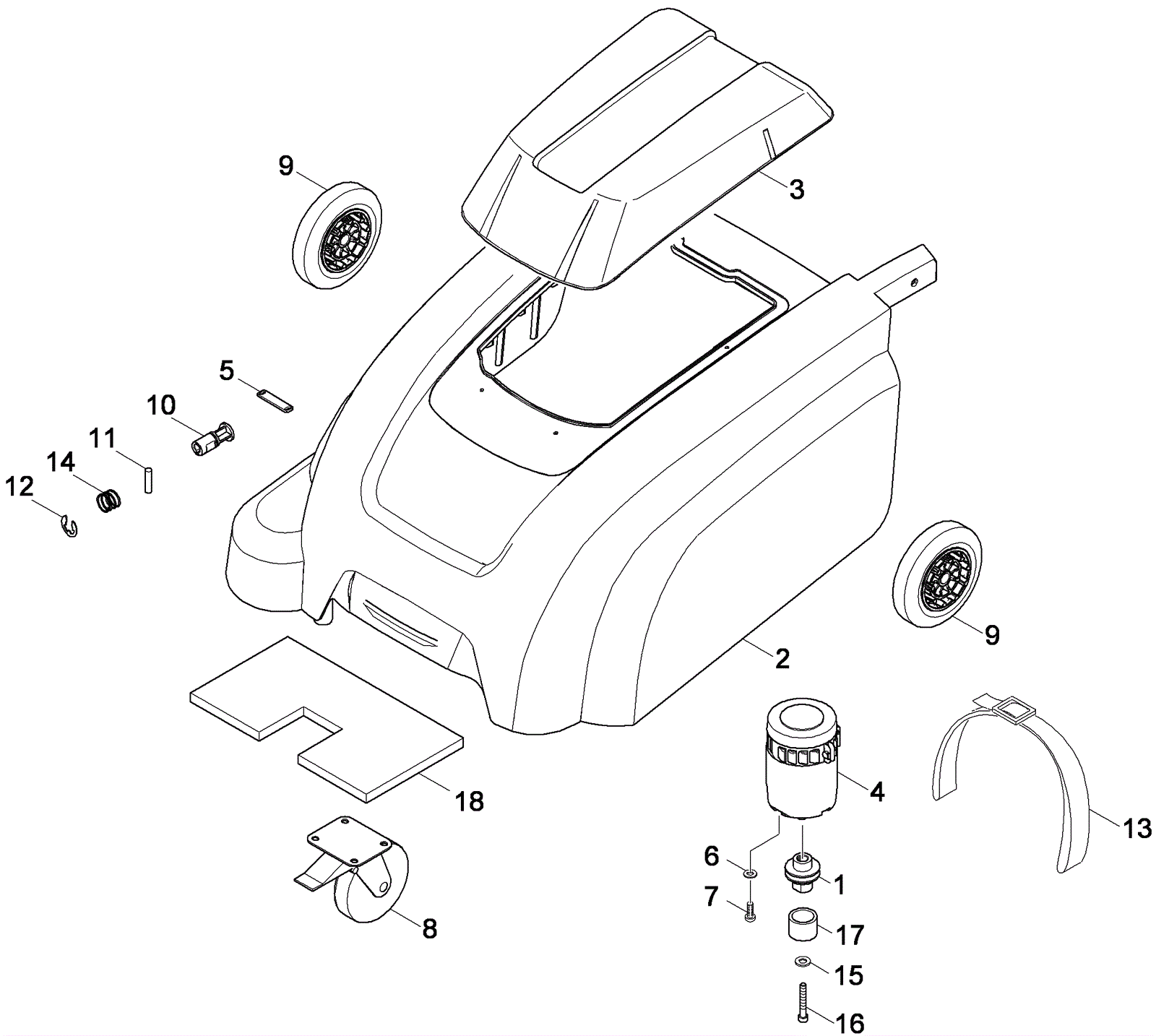

RADIUS 300 Battery Transmission Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-7523 Battery motor shaft $66.00 1 usually ships 1-5 days
2 273-7524 Battery cover $835.84 1 usually ships 1-5 days
3 273-7525 Battery flap service $140.80 1 usually ships 1-5 days
4 273-7526 400 watt motor (OBSOLETE) $584.34 1 usually ships 14-22 days
5 273-7527 Plate cover closure $11.66 1 usually ships 1-5 days
6 173-6297 Washer $1.94 4 usually ships 1-5 days
7 173-9890 Screw M6 x 20 $1.94 4 usually ships 1-5 days
8 273-7528 Caster $249.70 1 usually ships 14-22 days
9 273-7529 Complete traceless wheel $106.70 2 usually ships 1-5 days
10 273-7530 Bolt closure $21.89 1 usually ships 1-5 days
11 273-7531 Straight pin $5.28 1 usually ships 1-5 days
12 183-0372 Washer $6.36 1 usually ships 1-5 days
13 273-7532 Retaining belt $61.60 2 usually ships 1-5 days
14 273-7533 Helical spring $3.99 1 usually ships 1-5 days
15 173-6204 Washer 8M $1.28 1 usually ships 14-22 days
16 273-7126 Screw M8 x 55 cylinder head $7.81 1 usually ships 1-5 days
17 273-7534 Wheel blower sleeve $20.13 1 usually ships 1-5 days
18 273-7535 Plate $14.41 1 usually ships 1-5 days
