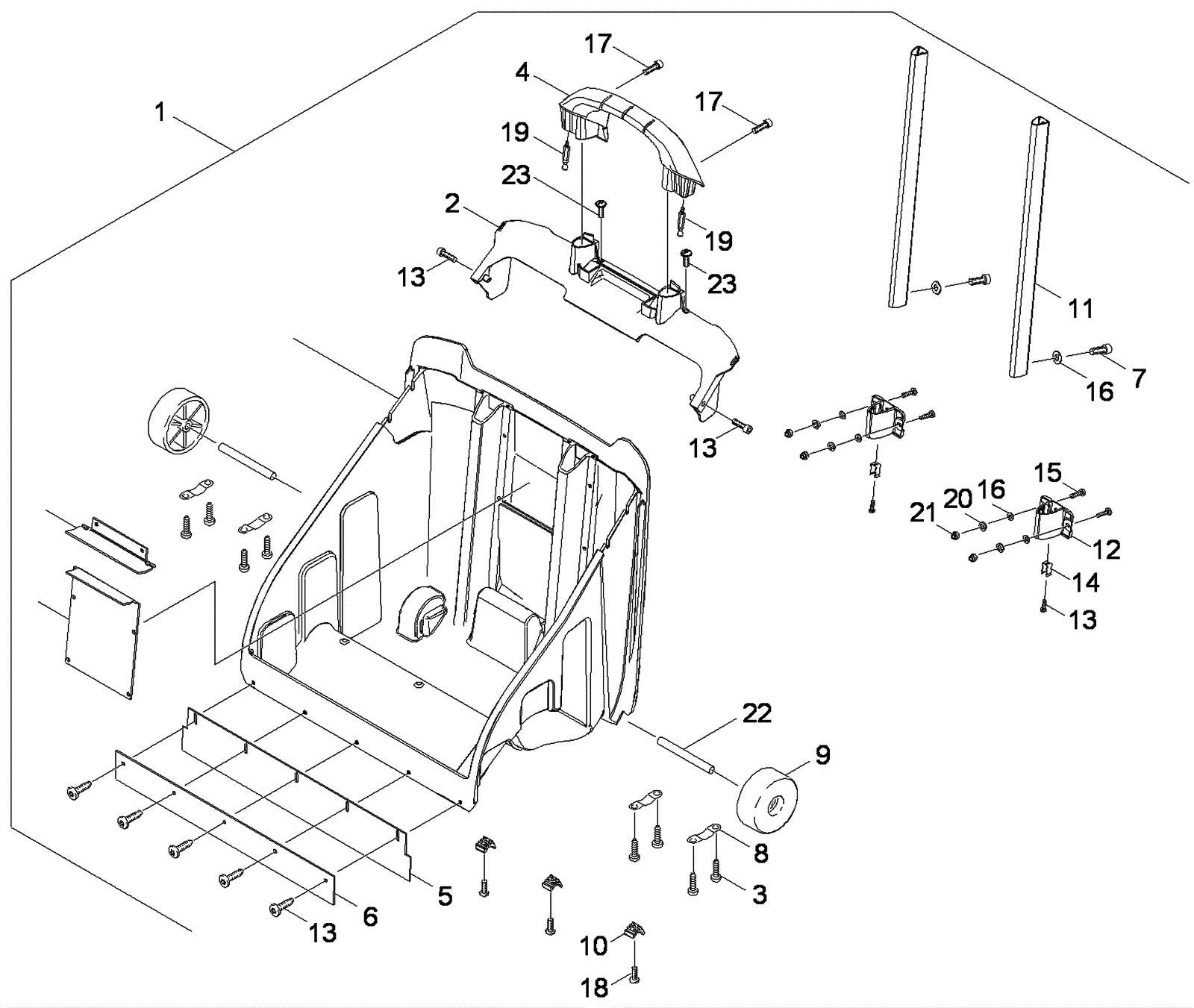

RADIUS 300 Sweep Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-7435 Complete sweep tank $663.30 1 usually ships 1-5 days
2 273-7451 Sweeping tank reinforcement $39.67 1 usually ships 1-5 days
3 273-0966 Screw M4-10.9 x 12mm round head $3.18 10 usually ships 11-16 days
4 273-7452 Handle $105.40 1 usually ships 1-5 days
5 273-7453 Rear skirt $55.20 1 usually ships 1-5 days
6 273-7454 Rear skirt plate $16.83 1 usually ships 1-5 days
7 183-4062 Screw, cheese head (Obsolete) $3.45 2 usually ships 1-5 days
8 183-2085 Clamp clip $5.06 4 ships same day
9 183-2022 Wheel $7.23 2 usually ships 15-28 days
10 183-4194 Sliding (Obsolete) $8.25 3 usually ships 1-5 days
11 273-7455 Sweeping tank bar $19.42 2 usually ships 1-5 days
12 273-7456 Handle bracket $5.89 2 usually ships 1-5 days
13 273-6089 Screw 6-10.9 x 20mm $2.26 9 usually ships 11-16 days
14 273-5846 Spring clip $28.37 2 usually ships 1-5 days
15 273-7457 Screw M6 x 25-8.8 $1.47 4 usually ships 1-5 days
16 173-6297 Washer $2.26 8 usually ships 1-5 days
17 183-4059 Screw $1.54 2 usually ships 1-5 days
18 183-4195 Screw, flat head $1.54 3 usually ships 1-5 days
19 273-7458 Long locking plug $22.99 2 usually ships 1-5 days
20 273-7459 Spring washer $1.41 4 usually ships 1-5 days
21 999-1308 Nut M6-1 hex stainless steel $0.99 4 ships same day
22 273-7460 Bolt $17.27 2 usually ships 1-5 days
23 183-0075 Screw 5-16 x 10.9mm $4.62 4 usually ships 15-28 days
