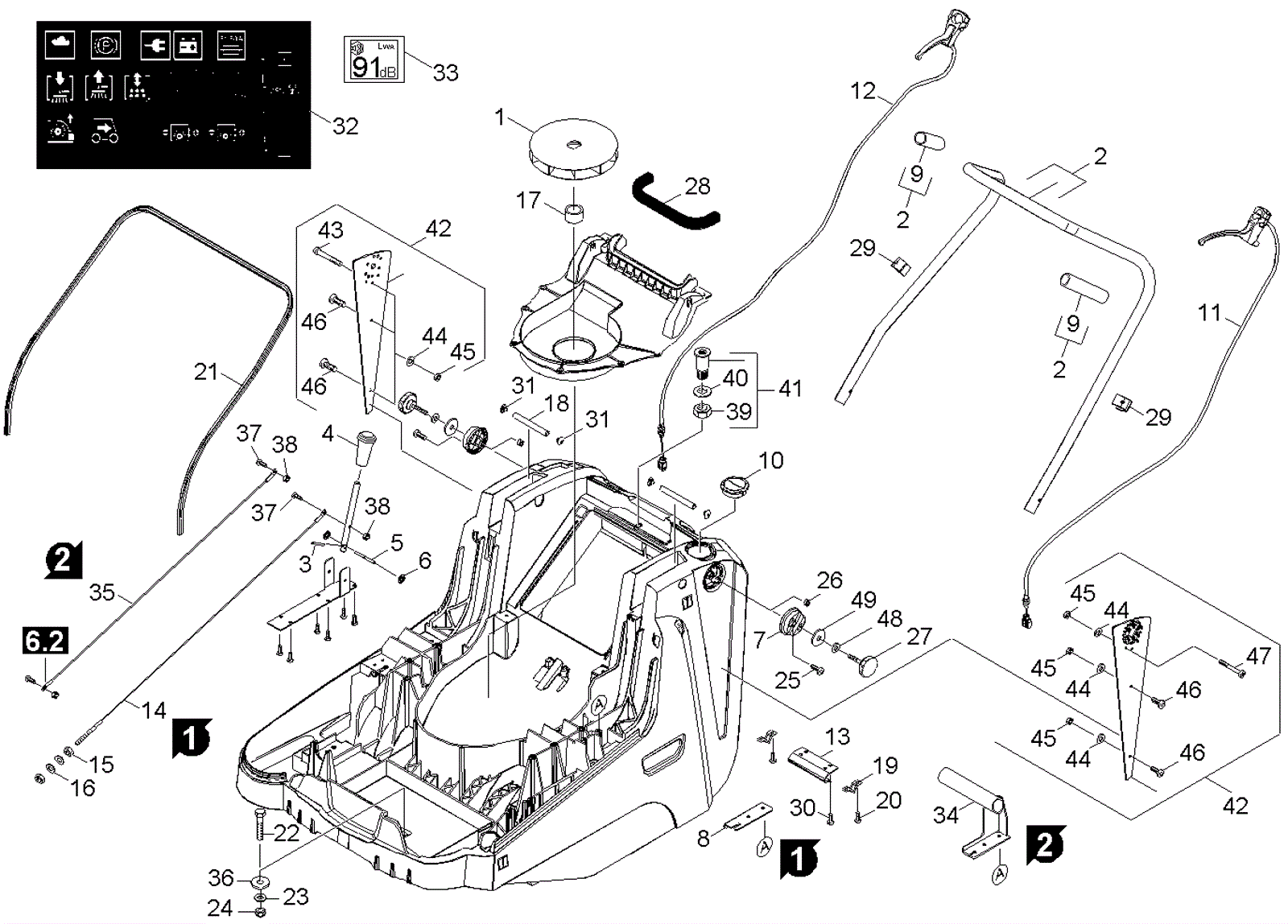

RADIUS 300 Basic Machinery Assembly

#PartDescriptionPriceReqNotesAvailability
14 273-7443 Side broom tackle $13.42 1 (Version 1) usually ships 1-5 days
1 273-7420 Blower wheel $116.60 1 usually ships 1-5 days
2 273-7421 Shearing shackle $103.95 1 usually ships 1-5 days
3 273-7422 Spring pin $1.28 1 usually ships 1-5 days
4 273-7423 Hand grip $46.20 1 usually ships 1-5 days
5 273-7424 Side broom adjustment bolt $23.21 1 usually ships 1-5 days
6 183-7436 Lock washer $1.35 2 ships same day
7 273-7425 Retaining bracket $32.89 2 usually ships 14-22 days
8 273-7426 Bowden cable plate $16.94 1 (version 1) usually ships 1-5 days
9 183-0186 Hose $50.53 1 usually ships 1-5 days
10 273-7427 Air flap $58.30 1 usually ships 14-22 days
11 273-7428 Bowden cable $249.70 1 usually ships 14-22 days
12 273-7429 Waste flap bowden cable $249.70 1 usually ships 14-22 days
13 273-7430 Retainer frame plate $15.73 1 usually ships 1-5 days
15 999-1651 Nut M8-1 hex stainless steel $2.83 2 ships same day
16 183-0262 Hex nut $1.35 2 usually ships 1-5 days
17 273-7038 Sleeve $96.80 1 usually ships 1-5 days
18 273-7432 Sleeve cover $10.29 2 usually ships 1-5 days
19 273-7433 Spring $6.16 2 usually ships 1-5 days
20 273-0966 Screw M4-10.9 x 12mm round head $2.73 4 usually ships 14-22 days
21 273-7434 Sealing profile $88.00 1 usually ships 1-5 days
22 999-1297 Screw M8 x 50mm hex head stainless steel $2.86 4 ships same day
23 273-7436 Spring washer $1.21 4 usually ships 1-5 days
24 273-7437 Nut M8 self locking hex $4.48 4 usually ships 1-5 days
25 173-6202 Screw M5 x 20mm $1.03 4 ships same day
26 183-0947 Square nut $1.39 2 usually ships 15-28 days
27 273-7146 Star grip $16.17 2 usually ships 14-22 days
28 273-7438 Cellular rubber profile $6.88 1 usually ships 1-5 days
29 273-7439 Cable clip $3.63 2 usually ships 1-5 days
30 273-6089 Screw 6-10.9 x 20mm $1.94 21 usually ships 14-22 days
31 273-6085 Plug $4.66 4 usually ships 14-22 days
32 273-7440 Safety instructions label $25.78 1 usually ships 1-5 days
33 N/A Not available Call for price 1 (Label) usually ships 3-26 days
34 273-7442 Complete exhaust $79.75 1 (version 2) usually ships 1-5 days
35 273-7443 Side broom tackle $13.42 1 (version 2) usually ships 1-5 days
36 173-6204 Washer 8M $1.28 4 usually ships 14-22 days
37 273-7444 Screw M5 x 20-8.8 $1.57 1 usually ships 1-5 days
38 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
39 273-5855 Nut M10 hex $1.64 1 usually ships 14-22 days
40 273-6016 Washer $1.94 1 usually ships 1-5 days
41 273-7445 Insert screw connector conversion kit $78.10 1 usually ships 1-5 days
42 273-7446 Shearing shackle conversion kit $1,116.50 1 usually ships 1-5 days
43 273-7447 Screw M5 x 40 $4.84 1 usually ships 1-5 days
44 273-7448 Washer 5 $1.21 7 usually ships 14-22 days
45 999-0740 Nut M5-.8 hex stainless steel $0.99 7 ships same day
46 273-7444 Screw M5 x 20-8.8 $1.57 8 usually ships 1-5 days
47 273-7449 Screw M5 x 50 $1.87 2 usually ships 1-5 days
48 273-7436 Spring washer $1.21 2 usually ships 1-5 days
49 173-6204 Washer 8M $1.28 2 usually ships 14-22 days
