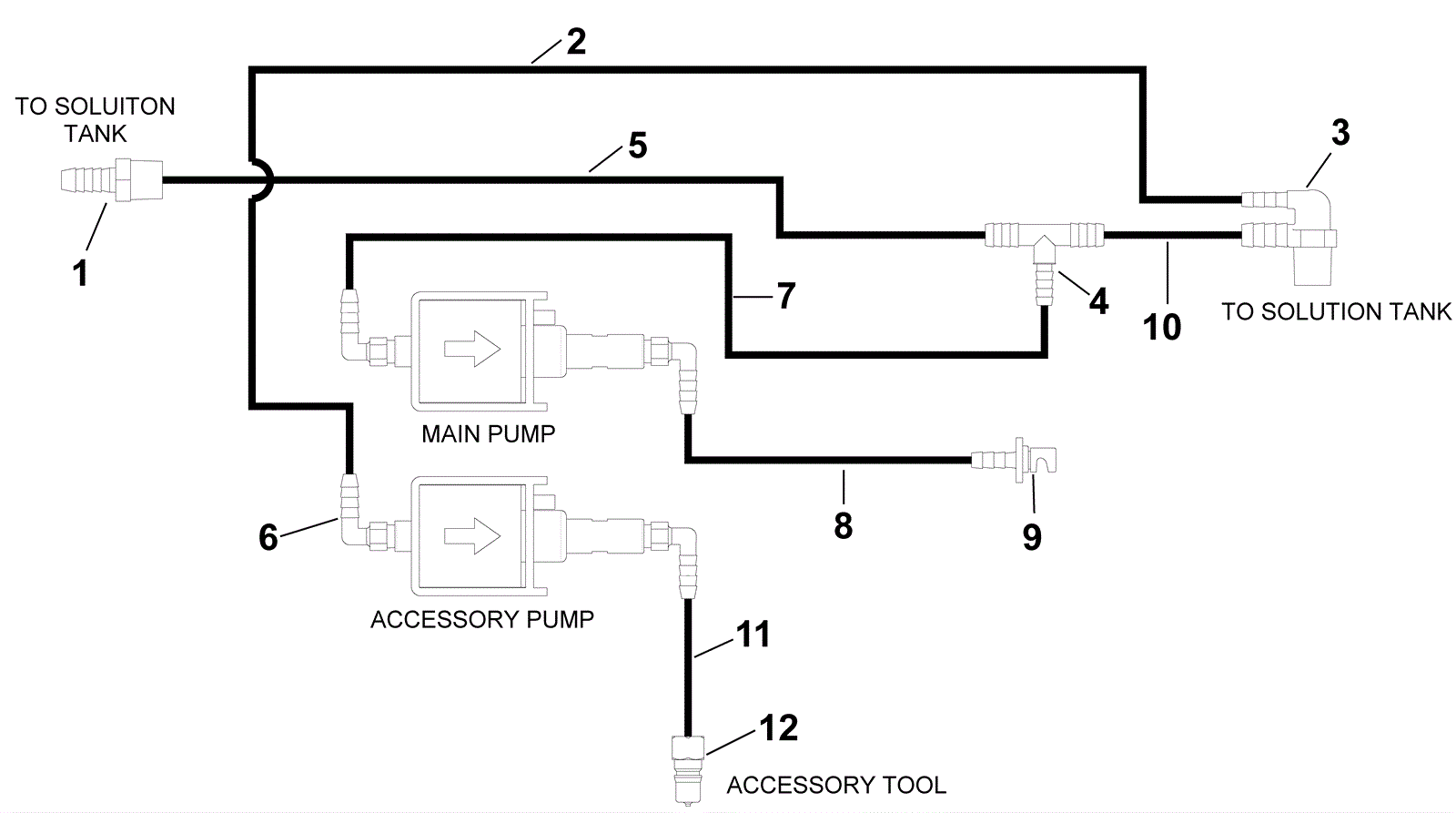

MINI PRO Hose Diagram

#PartDescriptionPriceReqNotesAvailability
1 173-9160 Nylon hosebarb $8.36 1 usually ships 14-22 days
2 273-7385 Hose $24.31 1 usually ships 1-5 days
3 273-7380 3/8 inch hosebarb $17.60 1 usually ships 14-22 days
4 273-7384 Hosebarb tee $13.31 1 usually ships 14-22 days
5 273-7381 3/8 inch hose (clear) $6.27 1 usually ships 14-22 days
6 273-5543 Hosebarb 1/8 x 1/4 inch $7.98 4 usually ships 14-22 days
7 273-7381 3/8 inch hose (clear) $6.27 1 usually ships 14-22 days
8 273-7383 Hose $18.92 1 usually ships 1-5 days
9 173-5364 Spray nozzle $12.54 1 usually ships 14-22 days
10 273-7386 3/8 inch hose $9.96 1 usually ships 1-5 days
11 273-7382 Hose assembly $67.65 1 usually ships 14-22 days
12 991-8149 1/8 inch male quick disconnect $5.93 1 ships same day
