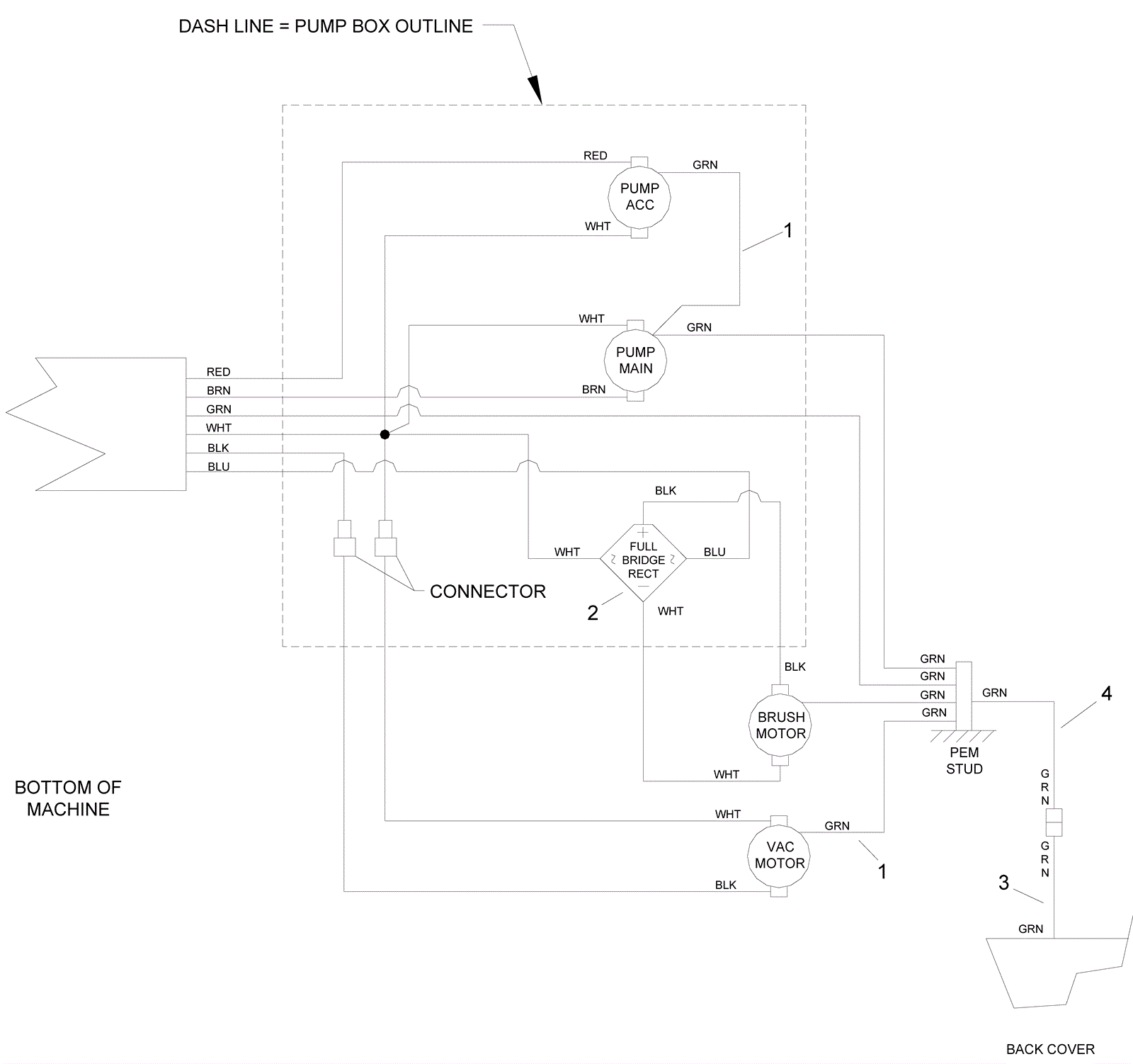

MINI PRO Wiring Diagram - Vacuum, Brush Motor and Pump 115V

#PartDescriptionPriceReqNotesAvailability
1 273-7407 14 inch wire (black) $5.50 3 usually ships 1-5 days
2 273-1134 50amp bridge rectifier $105.60 1 usually ships 7-19 days
3 273-7408 Wire assembly (green) $2.31 1 usually ships 1-5 days
4 273-7409 Wire assembly (green) $3.15 1 usually ships 1-5 days
