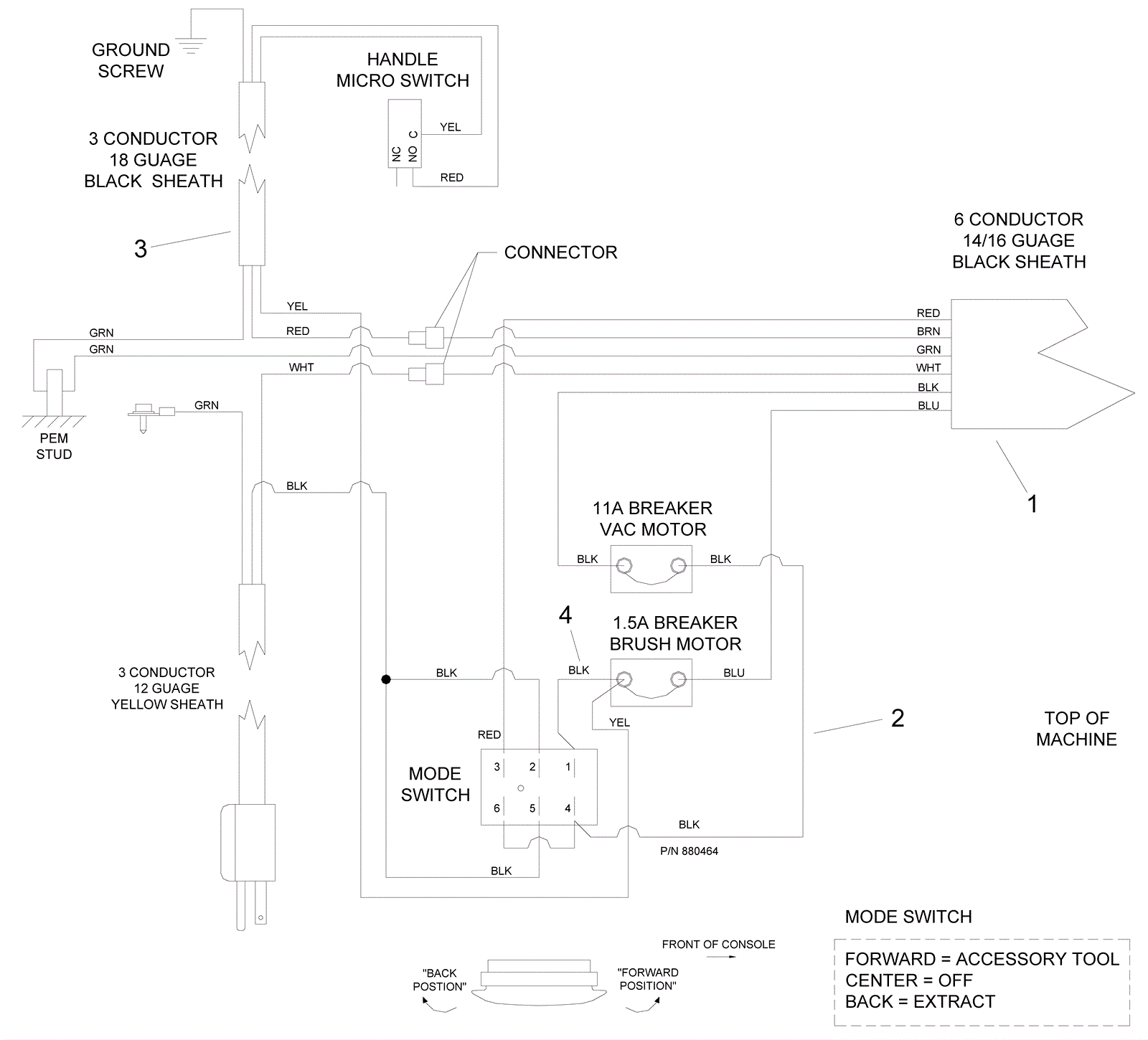

Wiring Diagram - Control Panel 115V

#PartDescriptionPriceReqNotesAvailability
1 273-7404 Main harness $104.50 1 usually ships 1-5 days
2 273-7405 Control panel jumper wire assembly $4.29 1 usually ships 1-5 days
3 273-7406 Handle harness $17.27 1 usually ships 1-5 days
4 273-7407 14 inch wire (black) $5.50 1 usually ships 1-5 days
