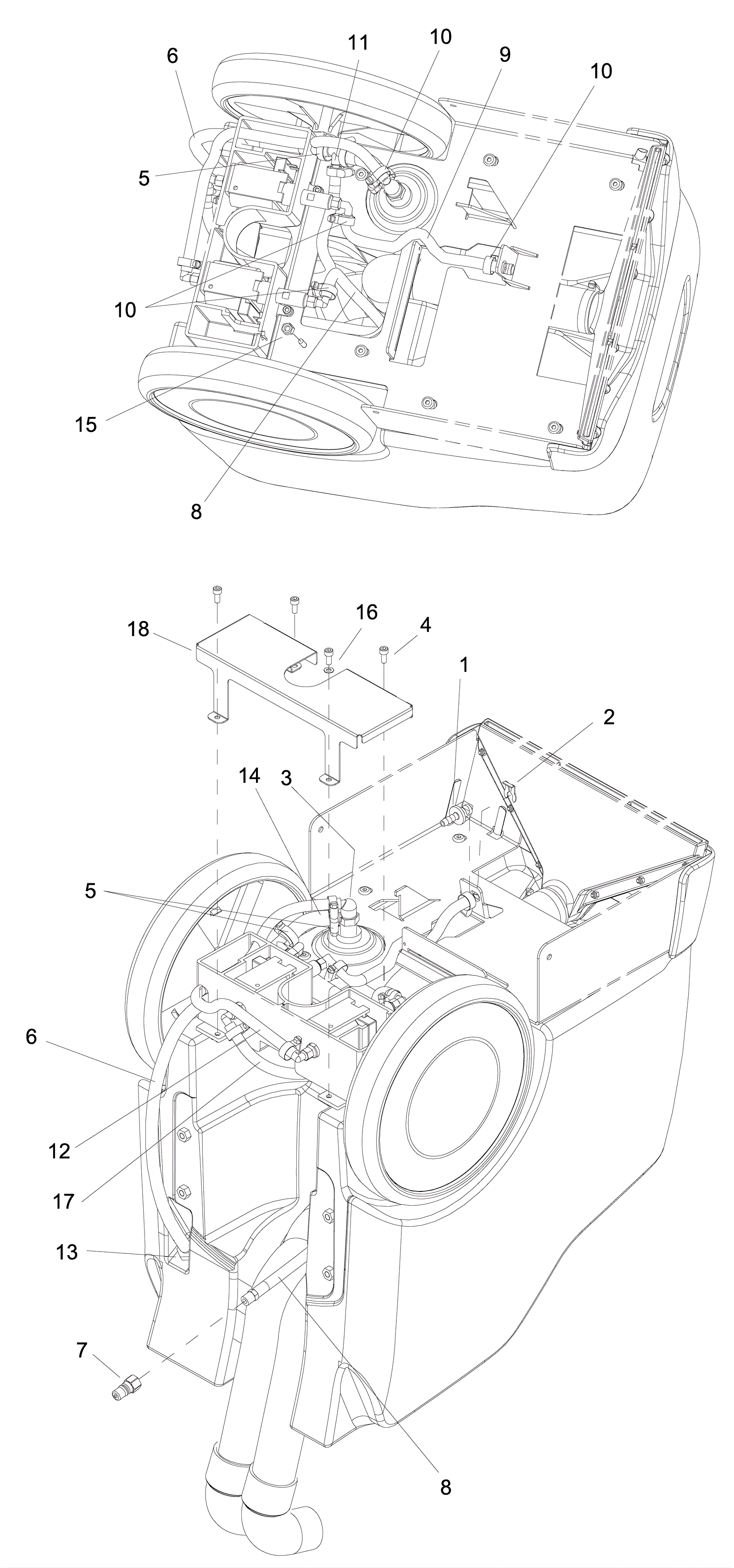

MINI PRO Lower Solution Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-5364 Spray nozzle $12.54 1 usually ships 7-19 days
2 273-7379 Shaft clilp $2.66 1 usually ships 1-5 days
3 273-7380 3/8 inch hosebarb $17.60 1 usually ships 7-19 days
4 273-5734 Screw M5-.8 x 12mm socket head cap stainless steel $3.41 4 usually ships 7-19 days
5 173-1821 Hose clamp $6.39 3 ships same day
6 273-7381 3/8 inch hose (clear) $6.27 1 usually ships 7-19 days
7 991-8149 1/8 inch male quick disconnect $4.74 1 ships same day
8 273-7382 Hose assembly $67.65 1 usually ships 7-19 days
9 273-7383 Hose $18.92 1 usually ships 1-5 days
10 173-2741 Hose clamp $2.37 7 usually ships 7-19 days
11 273-7384 Hosebarb tee $13.31 1 usually ships 7-19 days
12 273-7385 Hose $24.31 1 usually ships 1-5 days
13 173-9160 Nylon hosebarb $8.36 1 usually ships 7-19 days
14 273-7386 3/8 inch hose $9.96 1 usually ships 1-5 days
15 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 1 ships same day
16 999-0311 Washer #10 external star lock zinc plated $0.99 1 ships same day
17 273-7387 Hose $25.96 1 usually ships 7-19 days
18 273-7388 Pump box cover $29.48 1 usually ships 1-5 days
