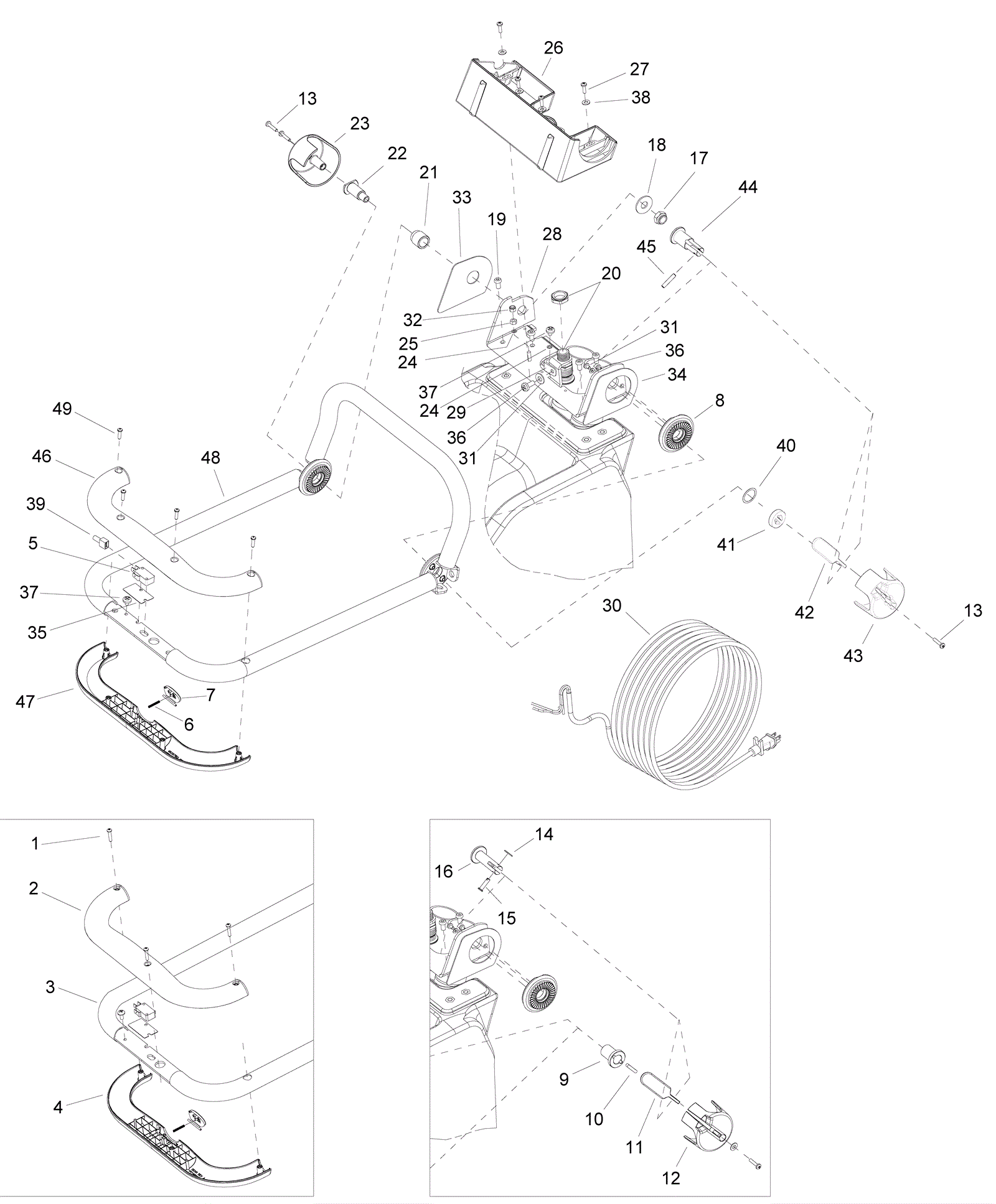

MINI PRO Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-7354 Screw $5.89 3 (Before SN 1008039000126) usually ships 11-16 days
2 273-6524 Bottom handle grip (OBSOLETE) $24.06 1 (Before SN 1008039000126) usually ships 11-16 days
3 273-7567 Handle tube weldment $7.54 1 (Before SN 1008039000126) usually ships 1-5 days
4 273-6523 Top handle grip $242.00 1 (Before SN 1008039000126) usually ships 1-5 days
5 273-7355 Micro switch $22.96 1 usually ships 11-16 days
6 273-7356 Lever spring $1.47 1 ships same day
7 273-7357 Spray handle button $17.30 1 usually ships 11-16 days
8 273-7358 Spline handle hub $39.31 1 usually ships 1-5 days
9 273-7568 Handle shaft bushing Call for price 1 (Before SN 1008039000001) usually ships 1-5 days
10 273-7569 Square keyway Call for price 1 (Before SN 1008039000001) usually ships 1-5 days
11 273-7570 Handle cam lever Call for price 1 (Before SN 1008039000001) usually ships 1-5 days
12 273-7571 Left side tube cover Call for price 1 (Before SN 1008039000001) usually ships 1-5 days
13 273-5446 Screw M4 x 20mm pan head phillips $2.68 3 usually ships 11-16 days
14 173-1130 Cotter ring $3.10 1 (Before SN 1008039000001) ships same day
15 273-7572 Clevis pin Call for price 1 (Before SN 1008039000001) usually ships 11-16 days
16 275-7573 Right hand bumper bracket $8.03 1 (Before SN 1008039000001) usually ships 1-5 days
17 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 1 ships same day
18 999-1346 Washer M12 flat stainless steel $0.99 1 ships same day
19 273-2035 Screw M6-12 x 15mm pan head cap stainless steel $6.83 4 ships same day
20 173-2845 Strain relief $21.78 1 usually ships 11-16 days
21 273-7359 Shaft handle spacer $5.08 1 usually ships 1-5 days
22 273-7360 Handle shaft $10.71 1 usually ships 1-5 days
23 273-7361 Right side tube cover $27.67 1 usually ships 11-16 days
24 999-0311 Washer #10 external star lock zinc plated $0.99 2 ships same day
25 999-0679 Nut 10-32 hex stainless steel $0.99 1 ships same day
26 273-7362 Bottom controls cover $100.64 1 usually ships 11-16 days
27 173-8687 Screw M4 x 14mm pan head phillips $1.90 4 ships same day
28 273-7363 Handle axle bracket $71.80 1 usually ships 1-5 days
29 173-1709 P clamp (OBSOLETE) $2.30 1 usually ships 11-16 days
30a 173-5357 14/3 power cord 25 foot $176.55 1 usually ships 11-16 days
30b 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 1 (NON-OEM) ships same day
31 273-5637 Screw M4-.7 x 6mm phillips head $1.45 3 usually ships 1-5 days
32 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 1 ships same day
33 273-7364 Right side control box gasket $4.30 1 usually ships 1-5 days
34 273-7365 Left side control box gasket $5.16 1 usually ships 1-5 days
35 273-7366 Microswitch shield $1.98 1 usually ships 1-5 days
36 999-9089 Washer M4 flat stainless steel $0.99 3 ships same day
37 173-8400 Screw 10-32 x 1/4 $1.20 2 usually ships 11-16 days
38 173-9595 Washer M5 rivet backup $0.99 4 usually ships 1-5 days
39 173-4613 Female coupler term 18g 1/4 $3.96 1 usually ships 1-5 days
40 273-7367 Washer 0.2 x 19.8 x 25 $1.47 1 (After SN 1008039000001) usually ships 1-5 days
41 273-7368 Handle lock bushing $24.84 1 (After SN 1008039000001) usually ships 1-5 days
42 273-7369 Cam handle lever $44.02 1 (After SN 1008039000001) usually ships 1-5 days
43 273-7370 Pipe covering cap $35.08 1 (After SN 1008039000001) usually ships 11-16 days
44 273-7371 Handle lock shaft $81.21 1 (After SN 1008039000001) usually ships 1-5 days
45 273-7372 Dowel pin $25.36 1 (After SN 1008039000001) usually ships 1-5 days
46 273-7373 Top grip handle $54.04 1 (After SN 1008039000126) usually ships 11-16 days
47 273-7374 Bottom grip handle $47.22 1 (After SN 1008039000126) usually ships 11-16 days
48 273-7375 Handle tube weldment $40.84 1 (After SN 1008039000126) usually ships 1-5 days
49 173-7229 Screw KA40 x 16 oval head $4.60 4 (After SN 1008039000126) usually ships 11-16 days
