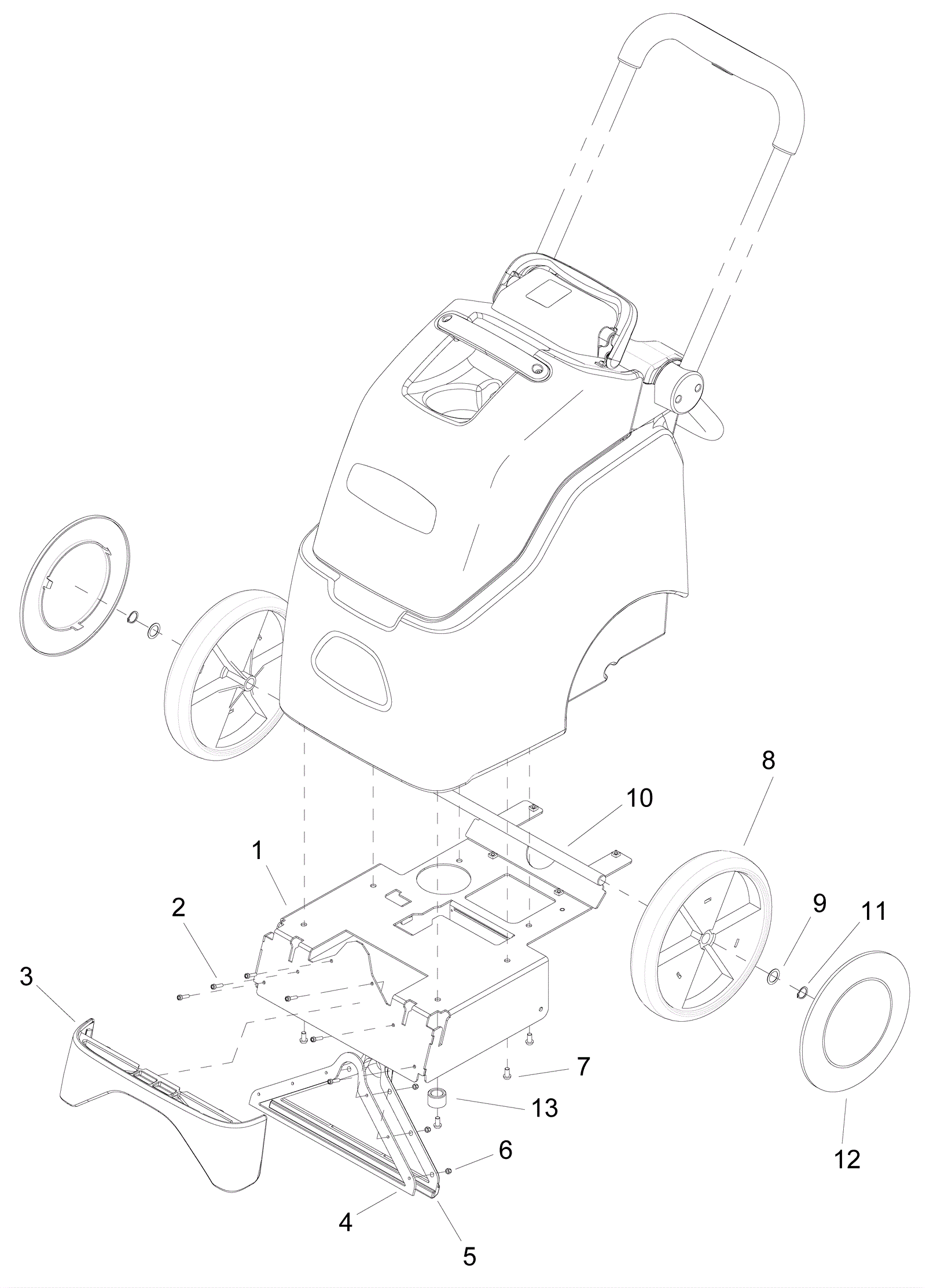

MINI PRO Frame and Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-7349 Brush housing bracket $264.00 1 usually ships 1-5 days
2 999-1660 Screw M4-.7 x 16mm socket head stainless steel $0.99 6 ships same day
3 273-7350 Front bumper $172.70 1 usually ships 7-19 days
4 173-9859 Vacuum shoe gasket $57.20 1 usually ships 7-19 days
5 173-9860 12 inch vacuum shoe $178.20 1 usually ships 7-19 days
6 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 6 ships same day
7 273-2035 Screw M6-12 x 15mm pan head cap stainless steel $6.38 6 ships same day
8 273-4000 10 inch gray wheel $132.02 2 usually ships 7-19 days
9 273-7351 Washer 16.2 x 23 x 0.6 $0.99 2 usually ships 1-5 days
10 273-7352 5/8 inch axle $59.95 1 usually ships 1-5 days
11 173-4901 5/8 inch external snap ring $5.89 2 usually ships 7-19 days
12 273-5748 Wheel hubcap $13.31 2 usually ships 7-19 days
13 273-7353 Brush desk bumper $14.52 1 usually ships 1-5 days
