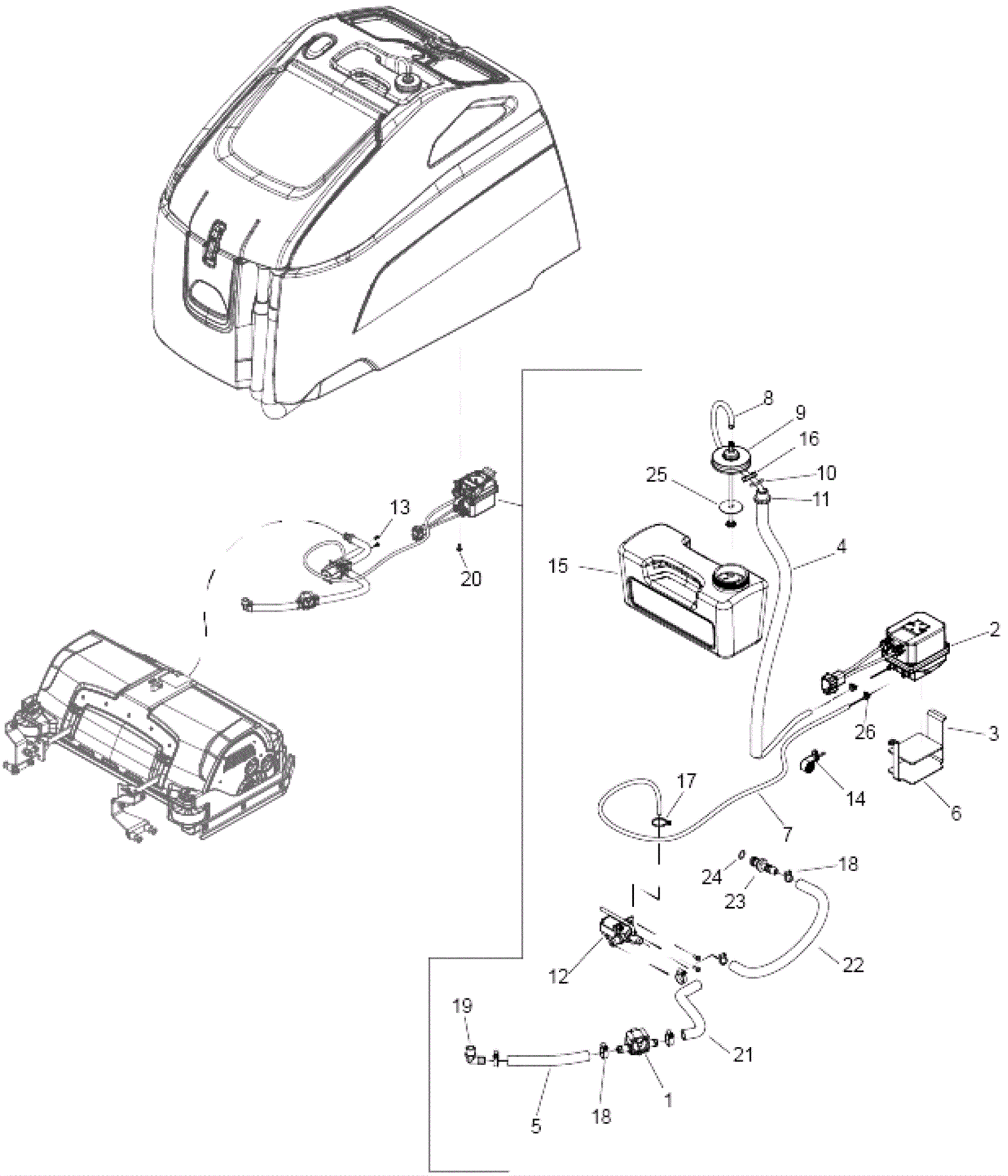

CHARIOT3 ISCRUB26 Chemical Metering Solution System Assembly - CYLINDRICAL

#PartDescriptionPriceReqNotesAvailability
1 273-3507 Flow meter $87.45 1 usually ships 14-22 days
2a 273-3508 Chemical dosing pump $443.30 1 usually ships 14-22 days
2b 273-3509 Hose replacement kit $132.00 1 usually ships 1-5 days
3 273-3510 Chemical pump bracket $36.85 1 usually ships 1-5 days
4 273-3511 Hose 5/8 x 25 inch $2.85 1 usually ships 1-5 days
5 273-3513 Hose 1/2 x 6 1/2 inch (OBSOLETE) $16.39 1 usually ships 14-22 days
6 273-3514 Chemical pump pad $9.19 1 usually ships 1-5 days
7 273-7330 Hose 3/16 x 5/16 x 24 inch (clear) $14.41 1 usually ships 1-5 days
8a 273-3516 Hose 3/8 x 47 inch $5.71 1 (before SN 10061500000603,10061510000464,10061520000035,10061530000053,10061580000136,10061590000188,10061600000006,10061610000026) usually ships 1-5 days
8b 273-7806 Hose 3/16 x 47 inch $31.13 1 (after SN 10061500000602,10061510000463,10061520000034,10061530000052,10061580000135,10061590000187,10061600000005.10061610000025) usually ships 14-22 days
9 273-3517 Dispensing cap (black) $115.50 1 usually ships 14-22 days
10 273-3518 O-ring $3.33 1 usually ships 1-5 days
11 273-3519 Fitting $19.58 1 usually ships 1-5 days
12 273-3520 Solenoid valve $188.10 1 usually ships 14-22 days
13 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated $0.99 2 ships same day
14 273-3431 P clamp $13.09 1 usually ships 1-5 days
15 273-3521 Chemical bottle $150.70 1 usually ships 14-22 days
16 173-5691 Nut 1/2 nickel plated thread plastic $15.29 1 usually ships 1-5 days
17 173-0822 Wire tie $0.99 1 usually ships 14-22 days
18 173-1821 Hose clamp $6.39 6 ships same day
19 173-1072 Hosebarb 3/8 x 1/2 inch $9.24 1 usually ships 14-22 days
20 173-4640 Screw 1/4-20 x .59 pan head phillips stainless steel $2.66 1 usually ships 14-22 days
21 273-7331 Wirebound hose $16.39 1 usually ships 1-5 days
22 173-5682 Braided hose 1/2 ID x 14 inch $19.58 1 usually ships 14-22 days
23 273-3461 Hose stem $66.55 1 usually ships 1-5 days
24 273-3462 O-ring seal $1.57 1 usually ships 1-5 days
25 273-7808 Gasket $19.58 1 (after SN 10061500000602,10061510000463,10061520000034,10061530000052,10061580000135,10061590000187,10061600000005.10061610000025) usually ships 14-22 days
26 273-7809 Hose clamp $2.42 2 usually ships 14-22 days
N/S 273-3522 Storage cap $6.16 1 usually ships 14-22 days
N/S 273-3523 Chemical bottle kit (pkg of 3) $368.50 1 usually ships 14-22 days
