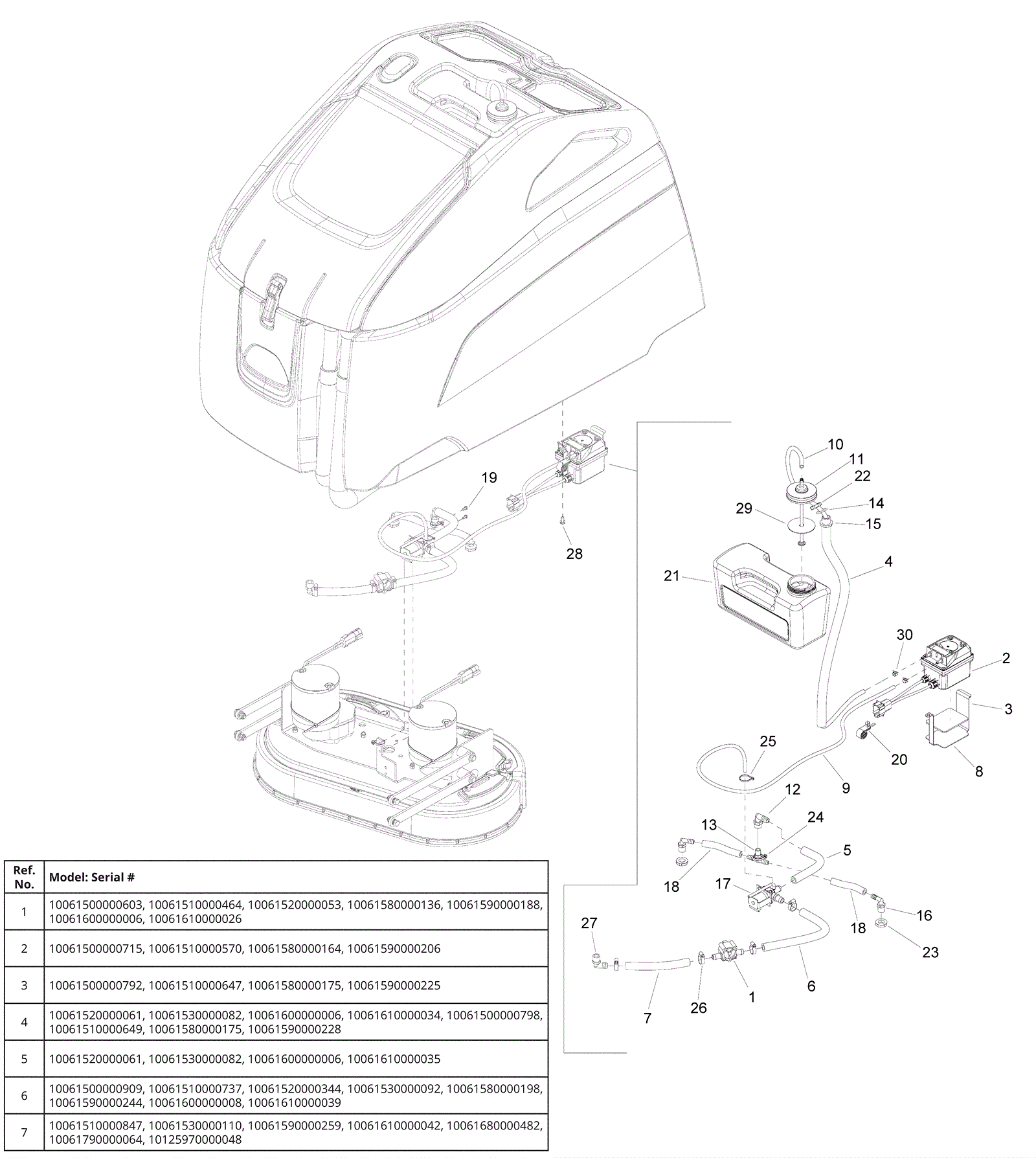

CHARIOT3 ISCRUB26 Chemical Metering Solution System Assembly - DISK

#PartDescriptionPriceReqNotesAvailability
1 273-3507 Flow meter $93.58 1 usually ships 14-22 days
2a 273-3508 Chemical dosing pump $474.33 1 usually ships 14-22 days
2b 273-3509 Hose replacement kit $141.24 1 usually ships 1-5 days
3 273-3510 Chemical pump bracket $39.44 1 usually ships 1-5 days
4 273-3511 Hose 5/8 x 25 inch $3.31 1 usually ships 1-5 days
5 273-3456 Wirebound hose 1/2 x 8 1/4 inch $20.96 1 usually ships 14-22 days
6 273-3512 Hose 1/2 x 15 inch $25.85 1 usually ships 1-5 days
7 273-3513 Hose 1/2 x 6 1/2 inch (OBSOLETE) $16.39 1 usually ships 14-22 days
8 273-3514 Chemical pump pad $9.19 1 usually ships 1-5 days
9 273-3515 Hose 3/16 x 41 inch $13.07 1 usually ships 1-5 days
10a 273-3516 Hose 3/8 x 47 inch $5.71 1 (before SN reference 1) usually ships 1-5 days
10b 273-7806 Hose 3/16 x 47 inch $33.31 1 (after SN reference 1) usually ships 14-22 days
11 273-3517 Dispensing cap (black) $123.59 1 usually ships 14-22 days
12 273-3457 90 degree elbow $16.83 1 usually ships 14-22 days
13 273-3458 Tee barb $9.71 1 usually ships 14-22 days
14 273-3518 O-ring $3.88 1 usually ships 1-5 days
15 273-3519 Fitting $20.96 1 usually ships 1-5 days
16 173-1572 Hosebarb 3/8 x 3/8 inch $10.65 2 usually ships 14-22 days
17 273-3520 Solenoid valve $201.27 1 usually ships 14-22 days
18 273-3459 Wirebound hose 3/8 x 4 inch $17.53 2 usually ships 14-22 days
19 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated $0.99 2 ships same day
20 273-3431 P clamp $13.09 1 usually ships 1-5 days
21 273-3521 Chemical bottle $161.25 1 usually ships 14-22 days
22 173-5691 Nut 1/2 nickel plated thread plastic $15.29 1 usually ships 1-5 days
23 173-4130 Nut 3/8 plastic nickel plated thread (OBSOLETE) $12.98 2 usually ships 14-22 days
24 273-3820 11 inch cable tie $0.41 1 ships same day
25a 173-0822 Wire tie $1.06 3 (before SN reference 1) usually ships 14-22 days
25b 273-7809 Hose clamp $2.42 2 (after SN reference 1) usually ships 14-22 days
26 173-1821 Hose clamp $6.83 4 ships same day
27 173-1072 Hosebarb 3/8 x 1/2 inch $9.89 1 usually ships 14-22 days
28 173-4640 Screw 1/4-20 x .59 pan head phillips stainless steel $3.10 1 usually ships 14-22 days
29 273-7808 Gasket $20.96 1 usually ships 14-22 days
30 273-7809 Hose clamp $2.42 4 usually ships 14-22 days
N/S 273-3522 Storage cap $6.59 1 usually ships 14-22 days
N/S 273-3523 Chemical bottle kit (pkg of 3) $394.30 1 usually ships 14-22 days
