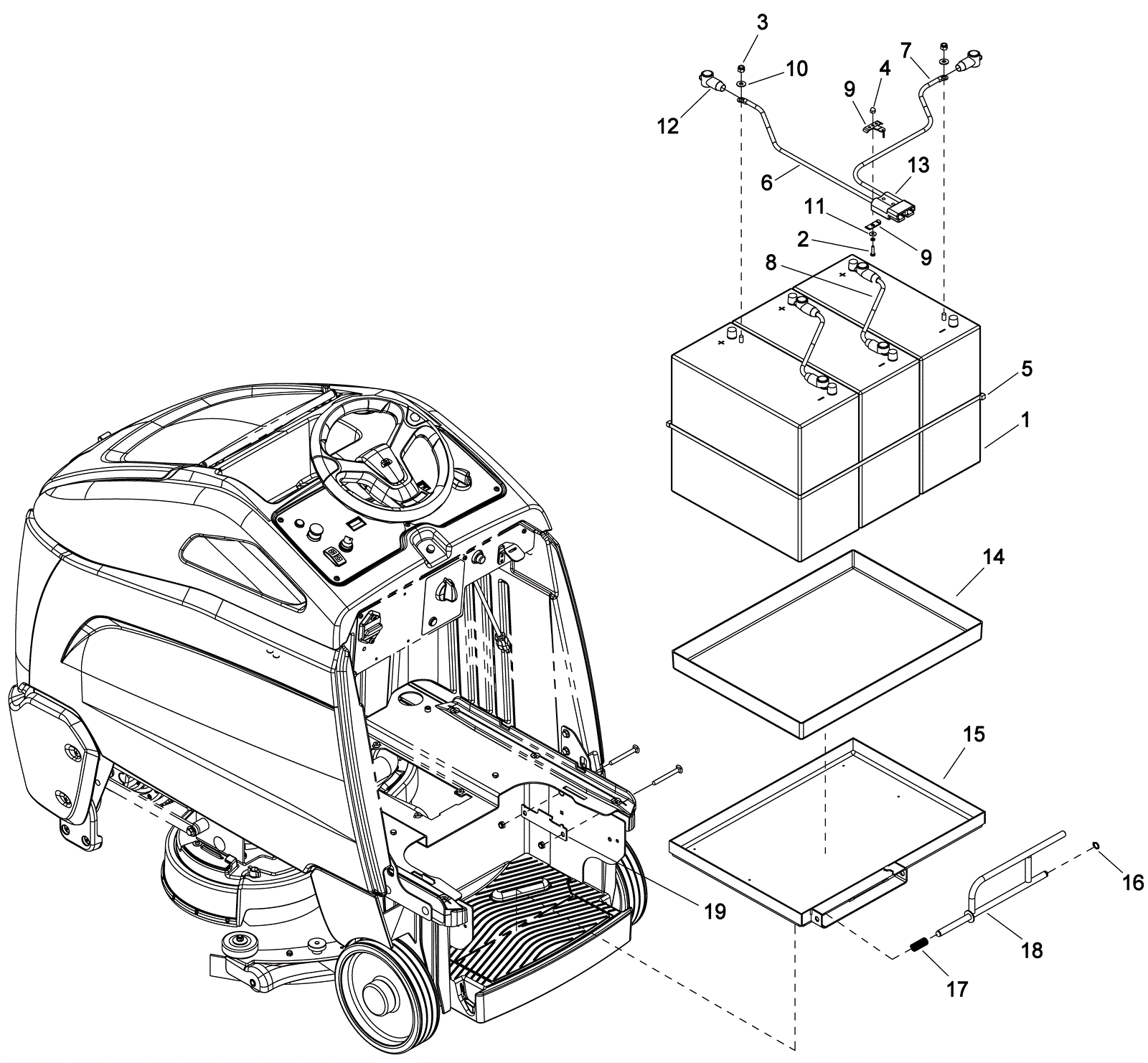

CHARIOT3 ISCRUB26 (GRAY) Batteries Assembly

#PartDescriptionPriceReqNotesAvailability
1 NOTE Please See Batteries, Brushes, Pad Holders and Charger Pages Call for price 3 usually ships 3-26 days
2 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 1 ships same day
3 999-0895 Nut 5/16-18 flex type lock cadmium plated $1.43 6 ships same day
4 999-0961 Nut 10-32 acorn nickel plated $0.99 1 ships same day
5 173-5594 Cable tie $28.16 2 usually ships 1-5 days
6 273-5992 Wire 4 x 25 inch ring style (red) $62.70 1 usually ships 14-22 days
7 273-5993 Wire 4 x 30 inch ring style (black) $78.65 1 usually ships 14-22 days
8a 273-5764 Ring style jumper cable (black) $9.90 2 usually ships 14-22 days
8b 991-6025 Wire 4 x14.5, 3/8 ring x 3/8 ring $14.54 2 (NON-OEM) usually ships 14-21 days
9 273-0049 Cable clamp kit $10.40 1 usually ships 14-22 days
10 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 6 ships same day
11 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
12 173-3311 Insulated rubber terminal boot $3.70 6 usually ships 14-22 days
13 991-2112 175amp charger plug with pins (gray) SB175 $16.09 1 ships same day
14a 273-7595 Battery tray $236.50 1 (Before SN 10061500000603, 10061510000464, 10061520000035, 10061530000053, 10061580000136, 10061590000188, 10061600000006, 10061610000026) usually ships 1-5 days
14b 273-7595 Battery tray $236.50 1 (After SN 10061500000603, 10061510000464, 10061520000035, 10061530000053, 10061580000136, 10061590000188, 10061600000006, 10061610000026) usually ships 1-5 days
15 273-3427 Battery tray assembly $321.20 1 usually ships 1-5 days
16 173-3486 Snap ring $4.16 1 usually ships 14-22 days
17 173-5599 Spring $35.20 1 usually ships 14-22 days
18 173-5598 Latch rod $136.40 1 usually ships 14-22 days
19 273-3428 Battery stop plate $12.87 2 usually ships 1-5 days
