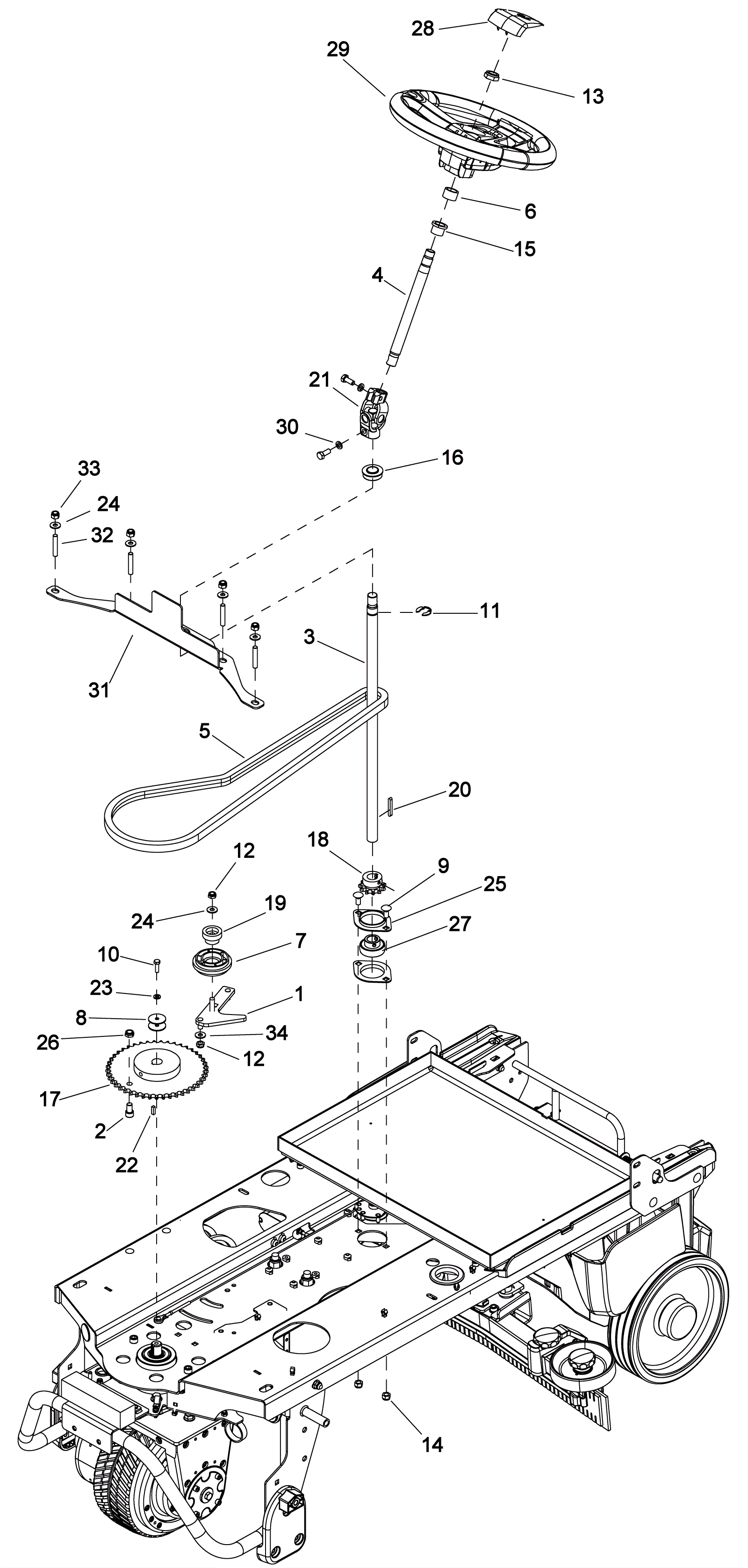

CHARIOT3 ISCRUB26 Steering Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-3216 Tensioner plate assembly $36.72 1 usually ships 14-22 days
2 273-7255 Screw 3/8-16 x 5/8 cap socket head $4.75 1 usually ships 14-22 days
3 273-3217 Lower steering shaft $193.03 1 usually ships 14-22 days
4 273-3218 Upper steering shaft $111.82 1 usually ships 1-5 days
5 273-3219 Chain $107.70 1 usually ships 14-22 days
6 273-7096 Bearing 3/4 x 1 $10.19 1 usually ships 14-22 days
7 173-5988 Chain tensioner $38.37 1 usually ships 14-22 days
8 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
9 273-0019 Screw 5/16-18 x 5/8 carriage stainless steel $4.82 2 usually ships 14-22 days
10 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 1 ships same day
11 173-3445 Ring clip $20.57 1 usually ships 14-22 days
12 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 3 ships same day
13 173-5057 Nut 5/8-16 elastic stop $0.99 1 usually ships 14-22 days
14 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
15 173-7161 Flanged bearing $16.13 1 usually ships 14-22 days
16 173-3446 Flanged bearing $75.33 1 usually ships 14-22 days
17 173-5560 Steering sprocket $143.59 1 usually ships 14-22 days
18 173-5557 Sprocket $54.74 1 usually ships 14-22 days
19 173-5291 Chain tensioner sleeve $34.13 1 usually ships 14-22 days
20 173-5556 Square keyway $5.89 1 usually ships 14-22 days
21 173-5554 Universal female joint $196.56 1 usually ships 14-22 days
22 173-9111 Square keyway $5.50 1 usually ships 14-22 days
23 999-1049 Washer 1/4 split lock zinc plated $0.99 1 ships same day
24 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 5 ships same day
25 173-3536 Flanged bearing $14.36 2 usually ships 14-22 days
26 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
27 173-5558 3/4 inch ball bearing $17.18 1 ships same day
28a 273-3220 Steering wheel cap $36.01 1 (after SN 10061500000603, 10061510000464, 10061520000035, 10061530000053, 10061580000136, 10061590000188, 10061600000006, 10061610000026) usually ships 1-5 days
28b 273-7095 Steering wheel cap $36.85 1 (before SN 10061500000603, 10061510000464, 10061520000035, 10061530000053, 10061580000136, 10061590000188, 10061600000006, 10061610000026) usually ships 14-22 days
29 273-7093 Steering wheel $193.03 1 usually ships 14-22 days
30 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
31 273-7311 Steering bracket $23.65 1 usually ships 1-5 days
32 273-0069 Screw 5/16-18 x 1 3/4 set stainless steel $6.71 4 usually ships 1-5 days
33 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
34 273-7219 Washer $1.90 1 usually ships 14-22 days
