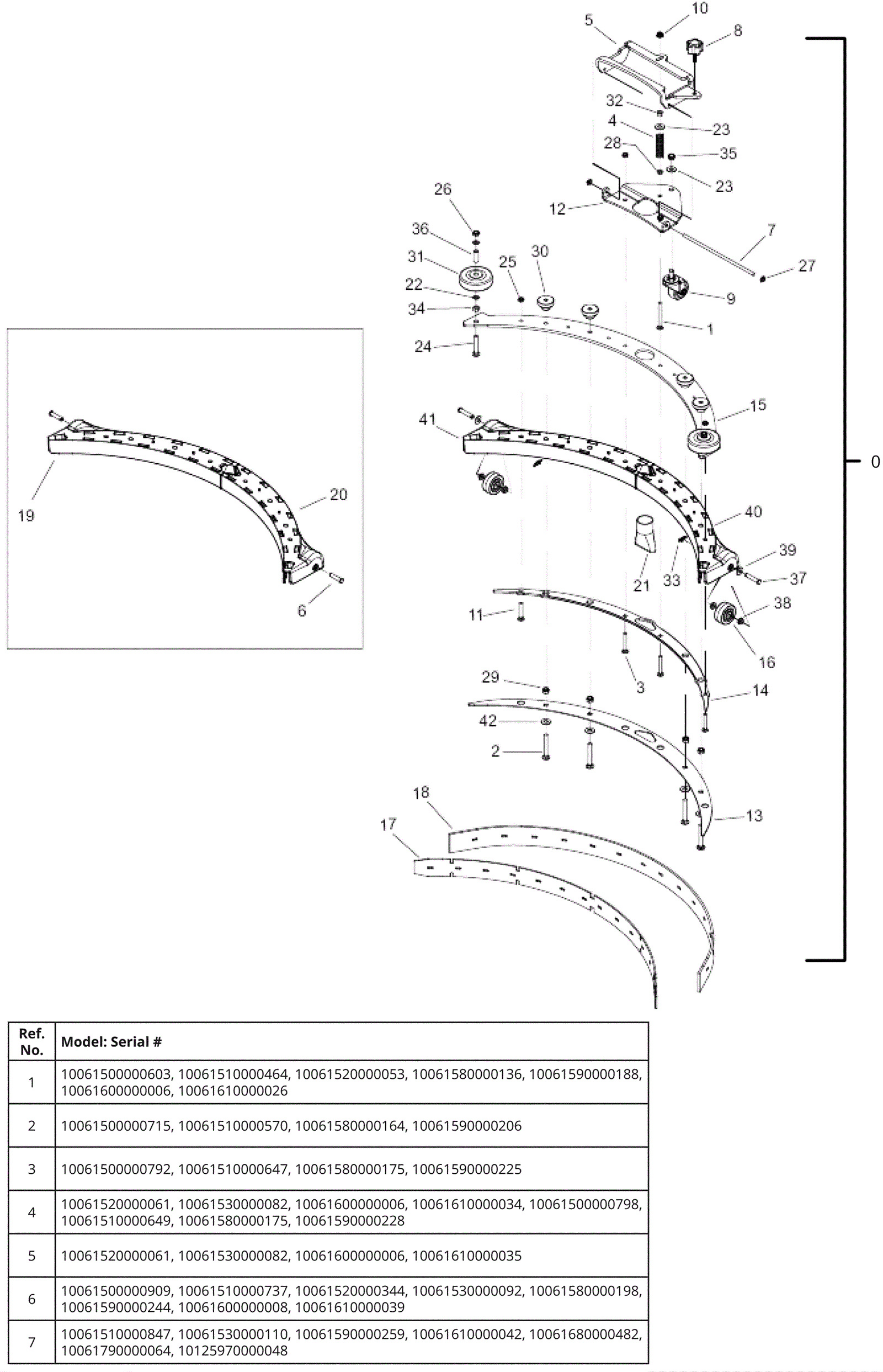

CHARIOT3 ISCRUB26 Squeegee Assembly - Disk

#PartDescriptionPriceReqNotesAvailability
0 273-3474 Squeegee assembly $1,127.72 1 (includes 1-36) ships same day
1 999-0607 Screw 1/4-20 x 3 carriage head stainless steel $3.30 1 ships same day
2 999-1607 Bolt 5/16-18 x 2 1/2 carriage stainless steel $3.83 4 ships same day
3 999-0605 Screw 1/4-20 x 2 carriage head stainless steel $5.50 2 ships same day
4 273-3463 Compression spring $18.81 1 usually ships 14-22 days
5 273-3464 Squeegee slide base plate $79.75 1 usually ships 14-22 days
6 173-3185 Clevis pin (OBSOLETE) $3.17 2 usually ships 14-22 days
7 273-3465 Rod $24.20 1 usually ships 14-22 days
8 273-3466 Knob $32.12 1 usually ships 14-22 days
9 273-7165 2 inch swivel caster wheel $65.46 1 usually ships 14-22 days
10 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 1 ships same day
11 999-1400 Screw 1/4-20 x 1 3/4 carriage head stainless steel $5.50 2 ships same day
12 273-3467 Squeegee base plate $95.15 1 usually ships 14-22 days
13 273-3468 Bottom holder plate $178.34 1 usually ships 14-22 days
14 273-3469 Bottom plate $115.67 1 usually ships 14-22 days
15 273-3470 Top plate $121.00 1 usually ships 14-22 days
16 273-7166 Wheel (gray) $21.89 2 ships same day
17a 273-6745 Squeegee blade 36 inch linatex front (red) $49.82 1 (standard) ships same day
17b 273-3471 Squeegee blade 36 inch urethane front $91.87 1 (optional) usually ships 14-22 days
18a 273-6746 Squeegee blade 40 inch linatex rear (red) $75.35 1 (standard) ships same day
18b 273-3472 Squeegee blade 40 inch urethane rear $140.83 1 (optional) usually ships 14-22 days
19 273-7162 Right side squeegee frame $229.56 1 ships same day
20 273-7163 Left side squeegee frame $143.02 1 ships same day
21 273-3473 Pass through tube $28.93 1 ships same day
22 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
23 999-0120 Washer 3/8 SAE flat $0.99 6 ships same day
24 999-0476 Screw 5/16-18 x 2 carriage head grade 5 zinc $0.99 2 ships same day
25 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 4 ships same day
26 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
27 173-8413 Nut 1/4 cap $0.99 2 ships same day
28 999-0971 Nut 1/4-20 jam stainless steel $0.99 1 ships same day
29 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
30 173-3184 Knob $48.29 4 ships same day
31a 173-1630 3 inch rubber wheel $5.50 2 ships same day
32 173-5125 Flanged bushing $6.16 1 usually ships 14-22 days
33 173-1480 Cotter ring $2.12 2 ships same day
34 999-0069 Nut 5/16-18 hex $0.99 2 ships same day
35 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
36 173-1634 Bushing $11.55 2 usually ships 14-22 days
37 173-3181 Clevis pin $7.10 2 (after SN reference 3) ships same day
38 273-7947 Bushing $0.99 4 (after SN reference 3) ships same day
39 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 (after SN reference 3) ships same day
40 273-1432 Left hand squeegee frame $144.10 1 (after SN reference 3) usually ships 14-22 days
41 273-1433 Right hand squeegee frame $144.10 1 (after SN reference 3) usually ships 14-22 days
42 173-3985 Washer 7/16 flat stainless steel $1.21 4 usually ships 14-22 days
